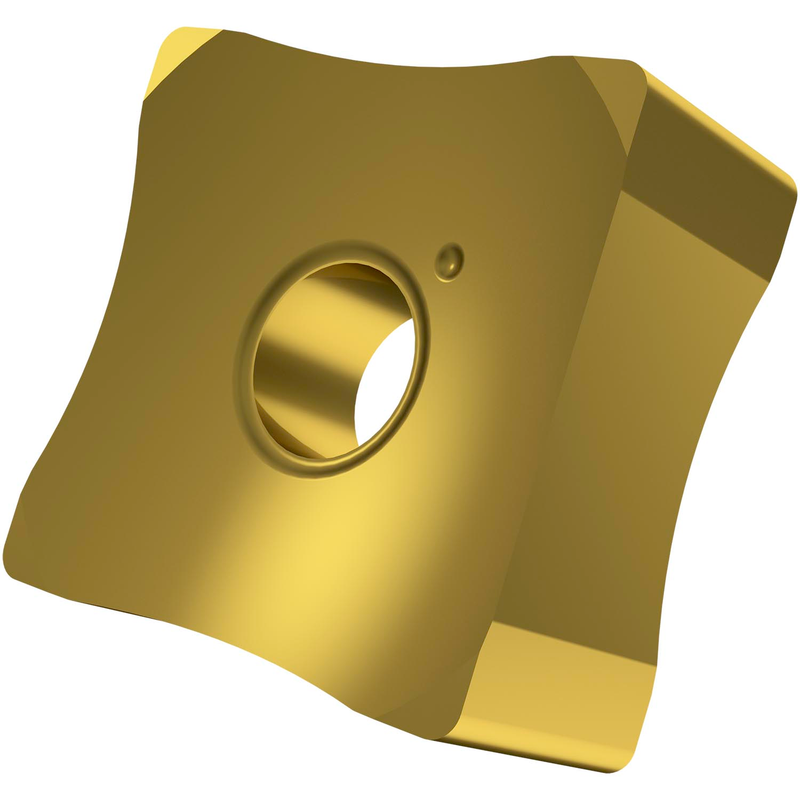

SNMX 150708-R42:6640

SNMX 150708-R42:6640

UGC DOR7817110
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.50 CAD - $22.50 CAD
$22.50 CAD
$22.50 CAD - $22.50 CAD
$22.50 CAD

Vendu en lots de : 10

Plaquette de dressage double-face, carrée avec une arête de coupe principale de 15,875 mm de long, 7,75 mm d'épaisseur et un rayon de travail de 42 mm pour des diamètres de tube de 61 à 75 mm, carbure WC-Co revêtu MT-CVD 6640 dans les plages de nuances ISO P20-P40 et M20-M35 pour l'ébavurage extérieur des tubes et tuyaux en acier et en acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNMX 150708-R42:6640
Grade6640
Chipbreaker (CBMD)Sans brise-copeaux
Product Number7817110
Product FamilySNMX 1507-R
Insert Geometry
Insert DesignSNMX 1507-R
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.88 mm
Insert Thickness — in (S)0.305"
Insert Thickness — mm (S)7.75 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number7817110
EAN3603603683952
