R1258.0
R1258.0
R1258.0
R1258.0

R1258.0

UGC DOR7820529
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$102.93 CAD - $102.93 CAD
$102.93 CAD
$102.93 CAD - $102.93 CAD
$102.93 CAD

Vendu en lots de : 1

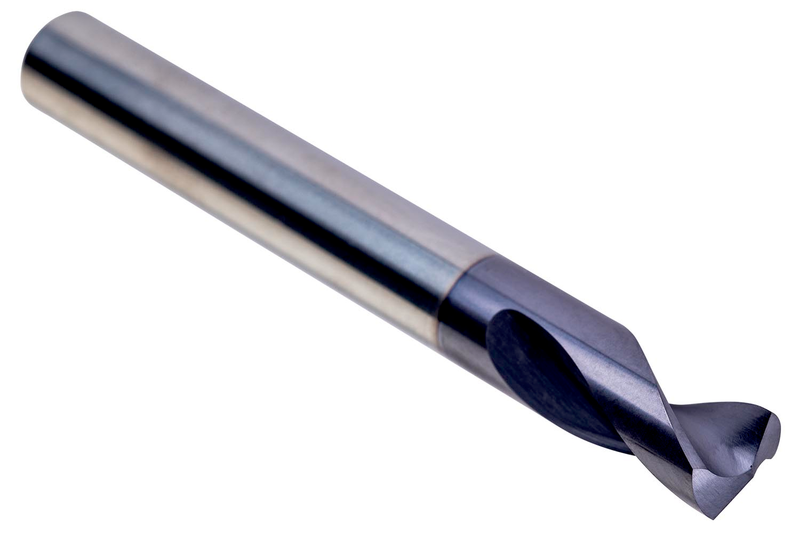

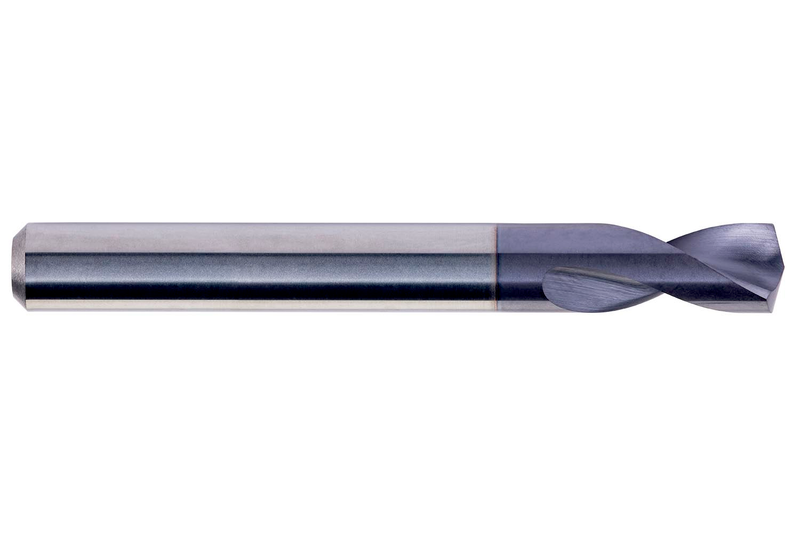

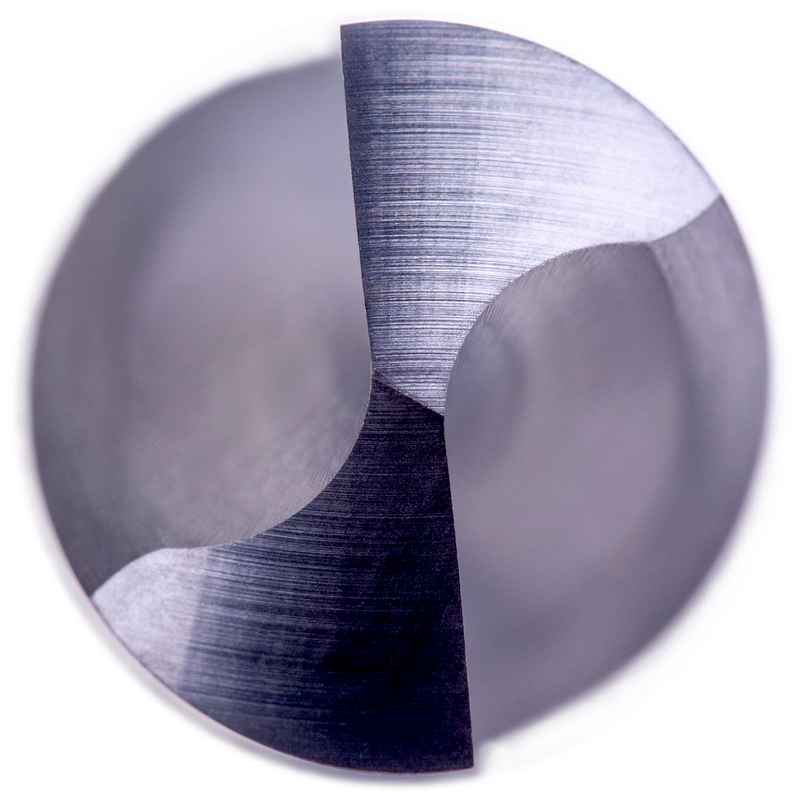

Foret à centrer à queue cylindrique, diamètre 8mm avec une longueur totale de 79mm et une longueur de coupe de 22mm selon la norme DORMER avec un angle de pointe de 150°, en carbure monobloc avec revêtement TiAlN pour l'acier, l'acier inoxydable, la fonte, les matériaux non ferreux, les superalliages ou les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI)Réf. 1258.0
Product Name (ISO)R1258.0
GradeTiAlN
Product Number7820529
Product FamilyR125

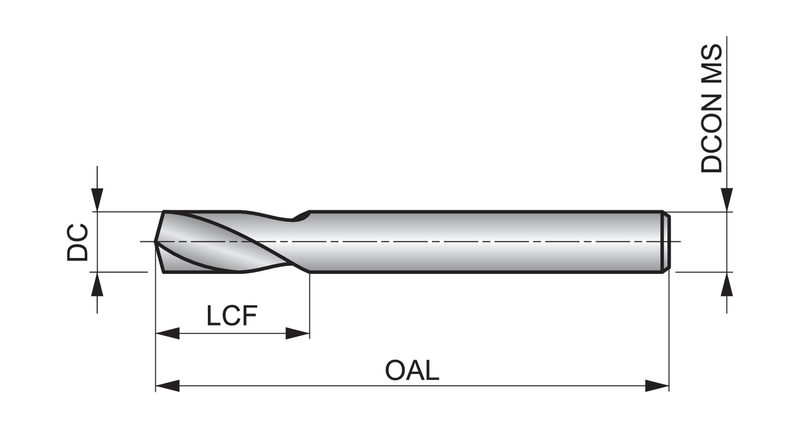

Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)3.1102"
Overall Length — mm (OAL)79.0 mm
Flute Length — in (LCF)0.8661"
Flute Length — mm (LCF)22.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Drill Point Angle (SIG)150°
Tool Information
ShankTige cylindrique
Direction of ToolGauche
StandardNorme de travail
Reference Numbers
EDP Number7820529
EAN7320760891063
File Type Download
R1258.0 — 3D Model STP Download
R1258.0 — Line Drawing PDF Download
