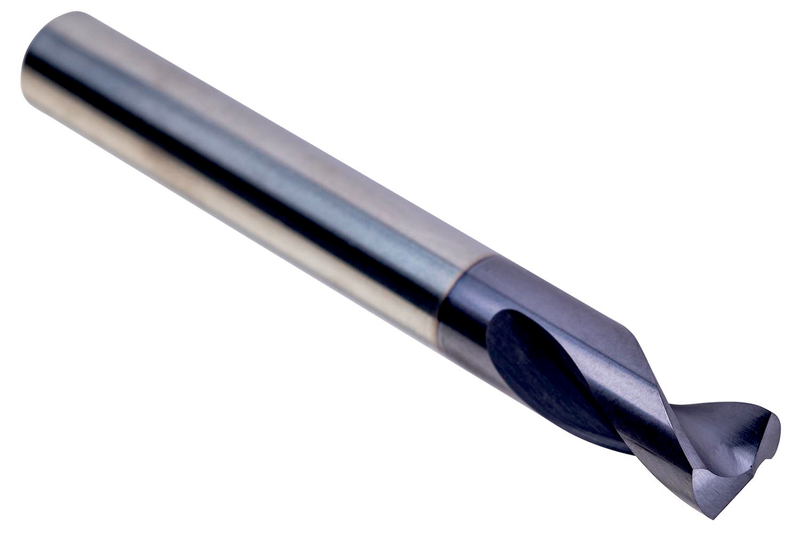

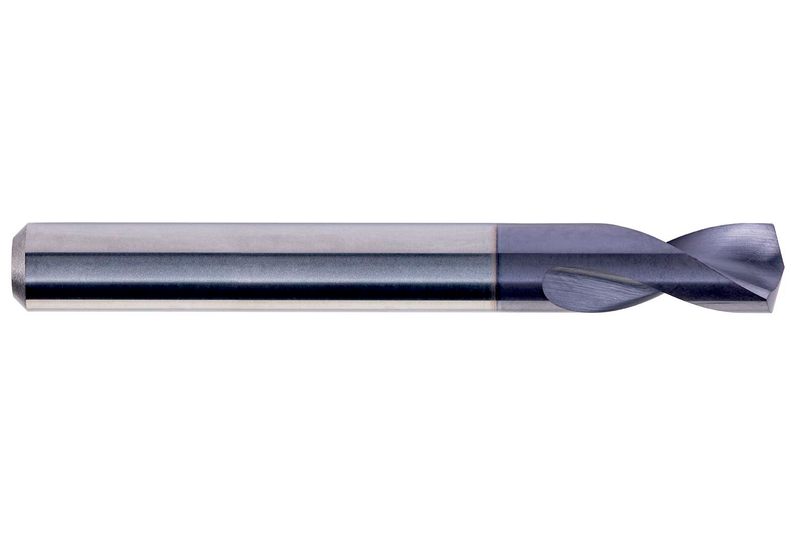

Foret à centrer à queue cylindrique, diamètre 12mm avec une longueur totale de 102mm et une longueur utile de 30mm selon la norme DORMER avec un angle de pointe de 150°, en carbure monobloc avec revêtement TiAlN pour l'acier, l'acier inoxydable, la fonte, les matériaux non ferreux, les superalliages ou les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R12512.0
GradeTiAlN
Product Number7820761
Product FamilyR125

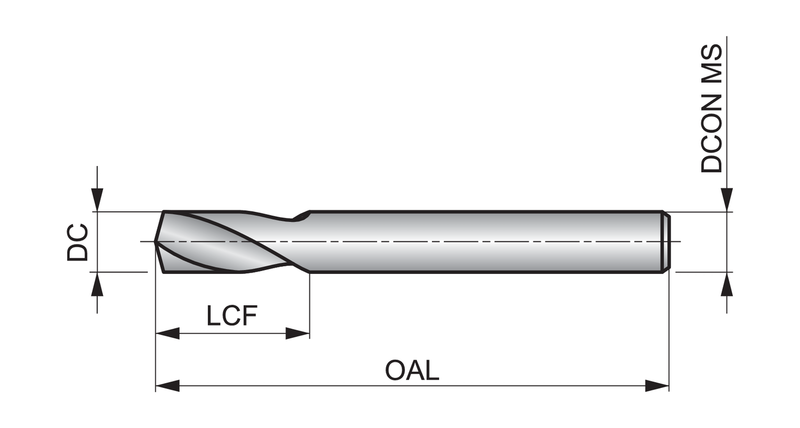

Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)4.0157"
Overall Length — mm (OAL)102.0 mm
Flute Length — in (LCF)1.1811"
Flute Length — mm (LCF)30.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Drill Point Angle (SIG)150°
Tool Information
ShankQueue cylindrique
Direction of ToolGauche
StandardNorme de travail
Reference Numbers
EDP Number7820761
EAN7320760891087
File Type Download
R12512.0 — 3D Model STP Download
R12512.0 — Line Drawing PDF Download
