R12516.0
R12516.0
R12516.0
R12516.0

R12516.0

UGC DOR7820762
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$297.00 CAD - $297.00 CAD
$297.00 CAD
$297.00 CAD - $297.00 CAD
$297.00 CAD

Vendu en lots de : 1

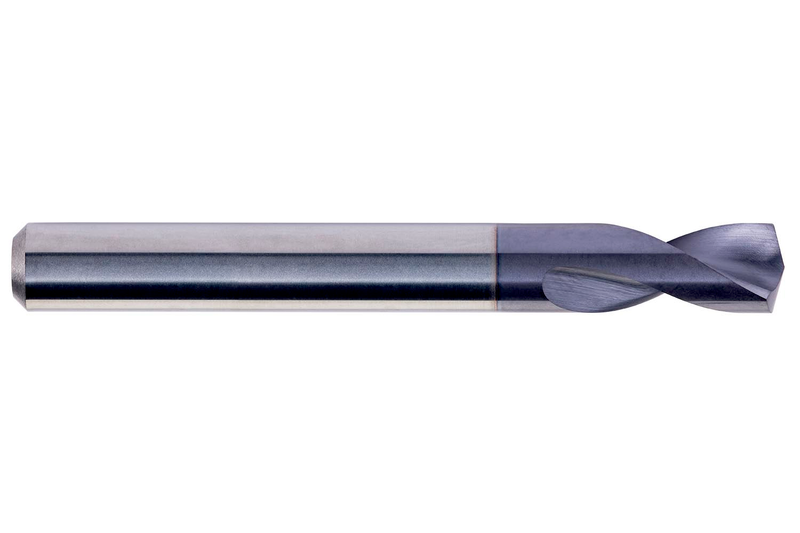

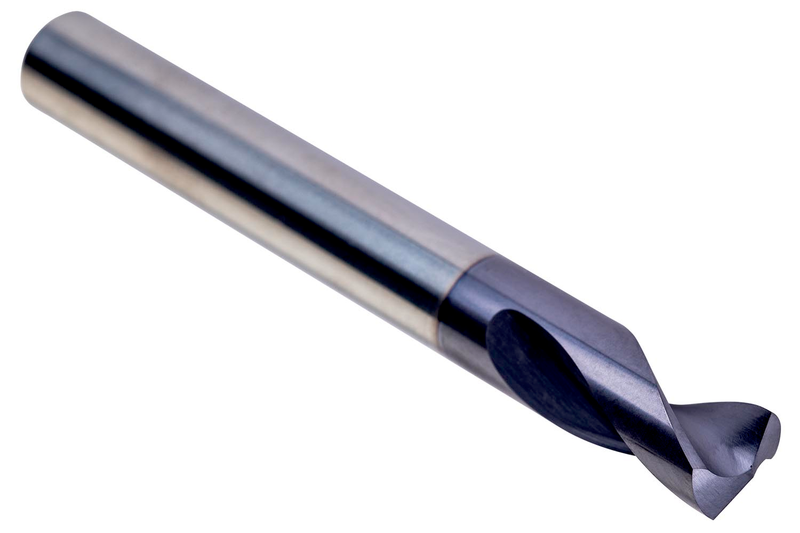

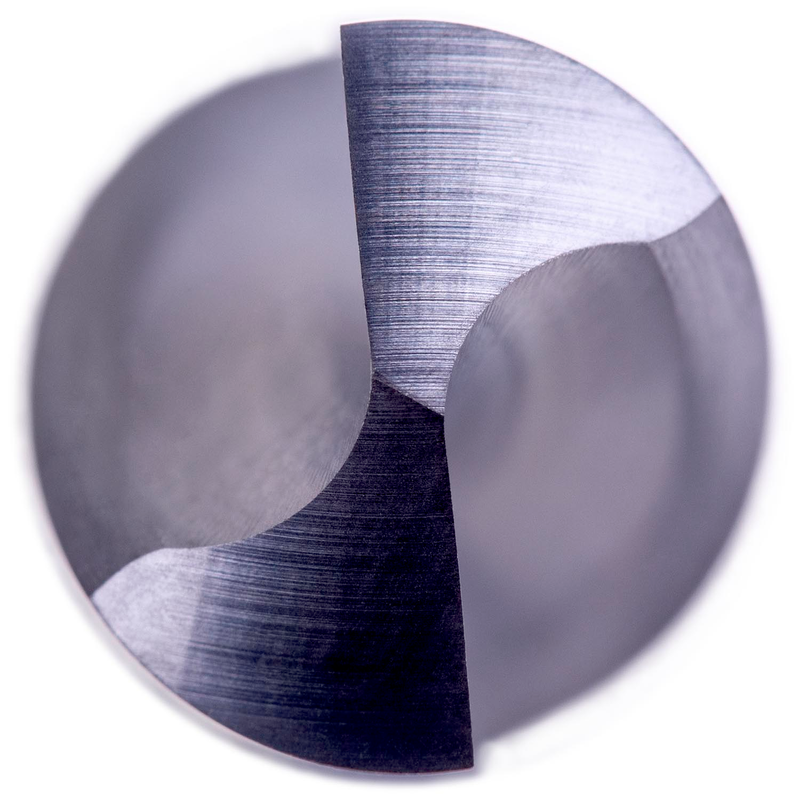

Foret à centrer à queue cylindrique, diamètre 16mm avec une longueur totale de 115mm et une longueur de coupe de 34mm selon la norme DORMER avec un angle de pointe de 150°, en carbure monobloc avec revêtement TiAlN pour l'acier, l'acier inoxydable, la fonte, les matériaux non ferreux, les superalliages ou les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R12516.0
GradeTiAlN
Product Number7820762
Product FamilyR125

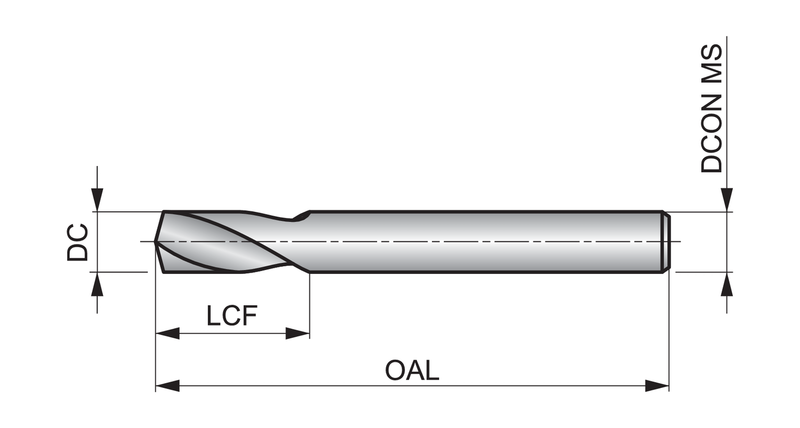

Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)4.5276"
Overall Length — mm (OAL)115.0 mm
Flute Length — in (LCF)1.3386"
Flute Length — mm (LCF)34.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Drill Point Angle (SIG)150°
Tool Information
ShankQueue cylindrique
Direction of ToolGauche
StandardNorme de travail
Reference Numbers
EDP Number7820762
EAN7320760891094
File Type Download
R12516.0 — 3D Model STP Download
R12516.0 — Line Drawing PDF Download
