UGC DOR7833296
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$434.00 CAD - $434.00 CAD
$434.00 CAD
$434.00 CAD - $434.00 CAD
$434.00 CAD

Vendu en lots de : 1

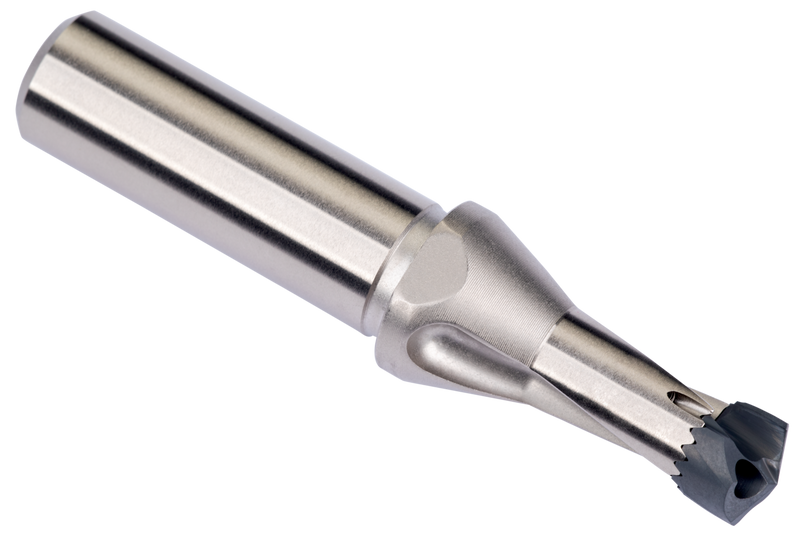

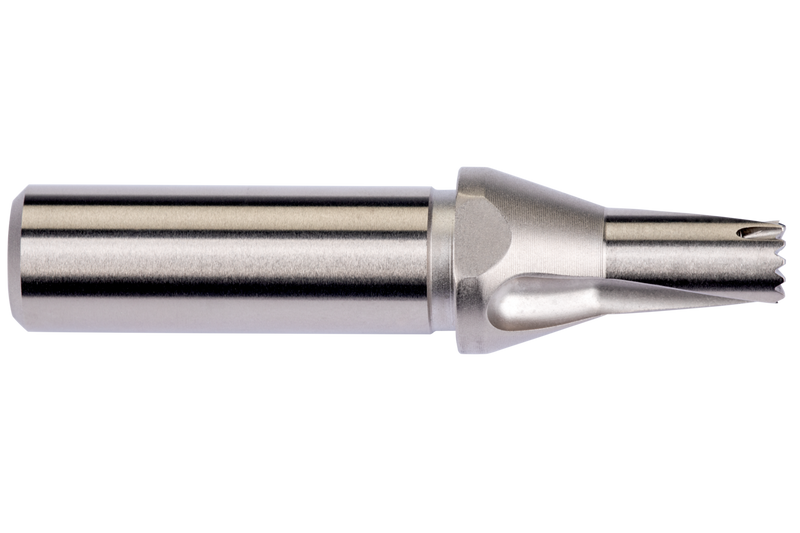

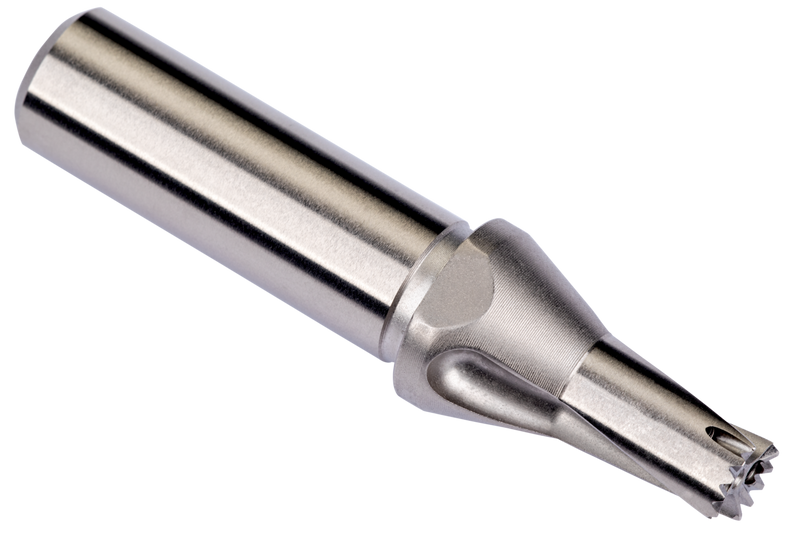

Corps de foret à tête amovible DOR HYDRA avec queue ISO 9766 avec méplat et bride, taille 17/32" avec une longueur totale de 93,9 mm et une longueur de goujure de 30,9 mm selon la norme DORMER pour le perçage 1.5xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 0,5118 à 0,5313" (7/32)

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85117/32
GradePlaqué nickel
Product Number7833296
Product FamilyH851
Dimensions
Overall Length — in (OAL)3.6969"
Overall Length — mm (OAL)93.9 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)1.2165"
Usable Length — mm (LU)30.9 mm
Connection Dia. — in (DCON)0.625"
Connection Dia. — mm (DCON)15.88 mm
Tool Information
ShankQueue de Hydra Cylindrique /ISO 9766
Direction of ToolGauche
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number7833296
EAN7320760894569
File Type Download
H85117/32 — 3D Model STP Download
H85117/32 — 2D Model DXF Download
H85117/32 — Line Drawing PDF Download
