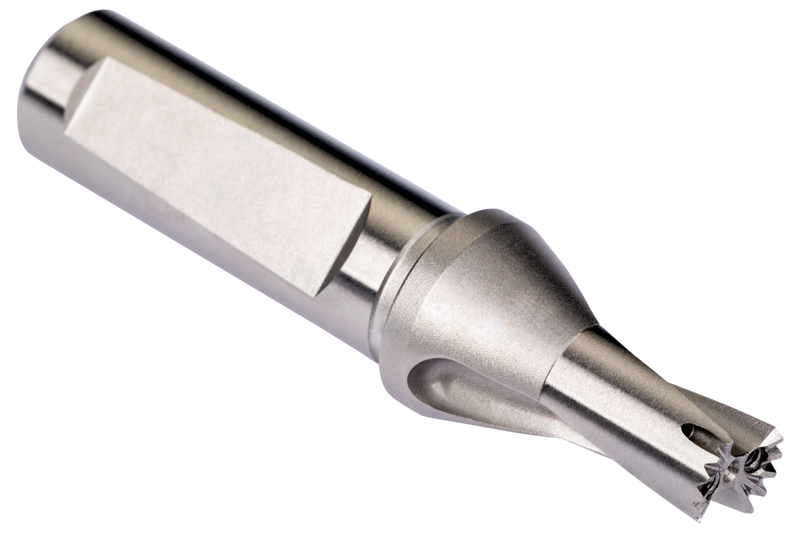

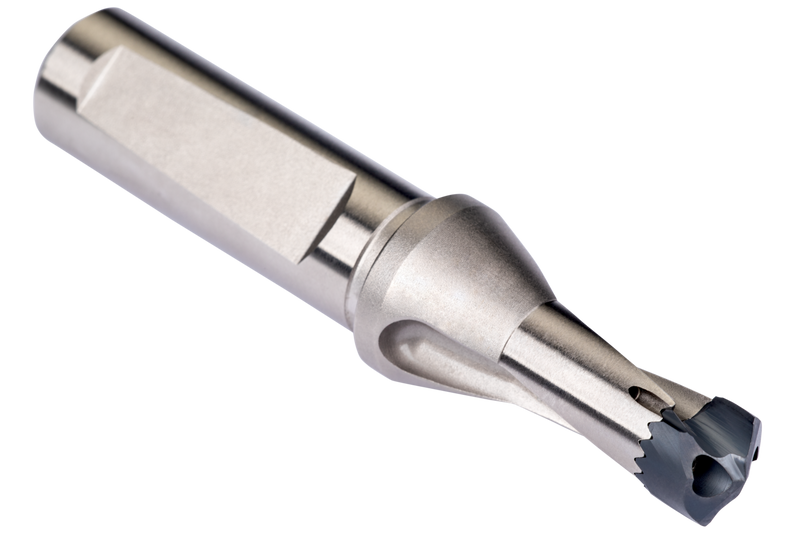

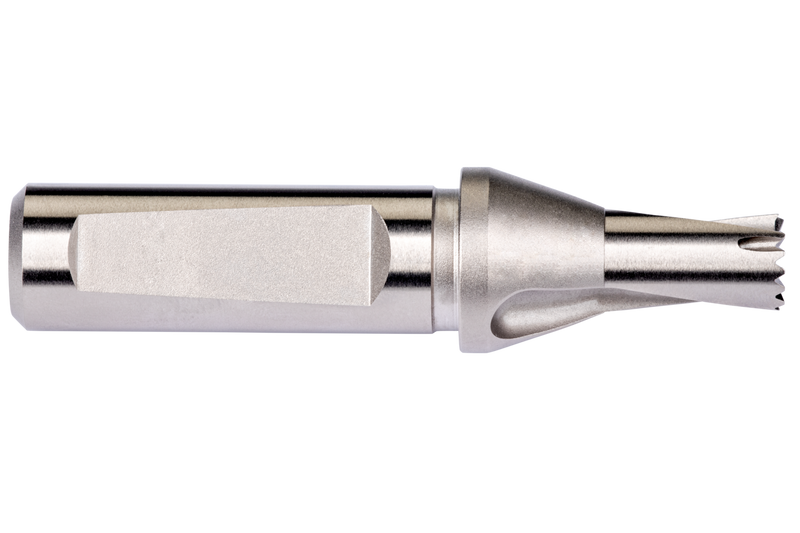

Corps de foret DOR à têtes interchangeables HYDRA avec queue ISO 9766 avec collerette et plat, taille 12,0 mm avec une longueur totale de 88,5 mm et une longueur de goujure de 25,5 mm selon la norme DORMER pour le perçage de 1,5xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 11,91 jusqu'à 12,5 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85112.0
GradePlaqué nickel
Product Number7833297
Product FamilyH851

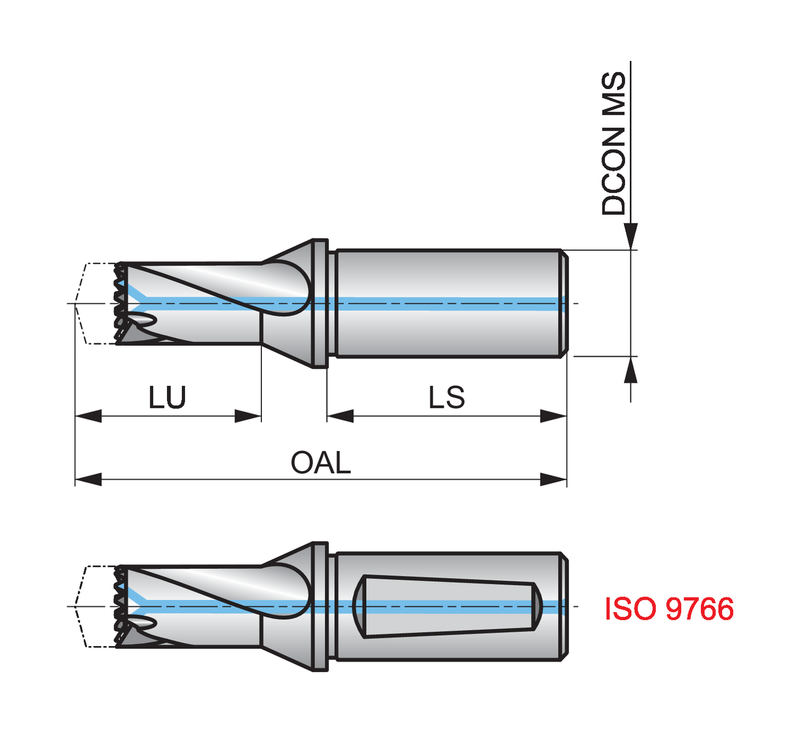

Dimensions
Overall Length — in (OAL)3.4843"
Overall Length — mm (OAL)88.5 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)1.0039"
Usable Length — mm (LU)25.5 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Tool Information
ShankQueue Hydra Cylindrique /ISO 9766
Direction of ToolGauche
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number7833297
EAN7320760894576
File Type Download
H85112.0 — 3D Model STP Download
H85112.0 — 2D Model DXF Download
H85112.0 — Line Drawing PDF Download
