UGC DOR7833299
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$434.00 CAD - $434.00 CAD
$434.00 CAD
$434.00 CAD - $434.00 CAD
$434.00 CAD

Vendu en lots de : 1

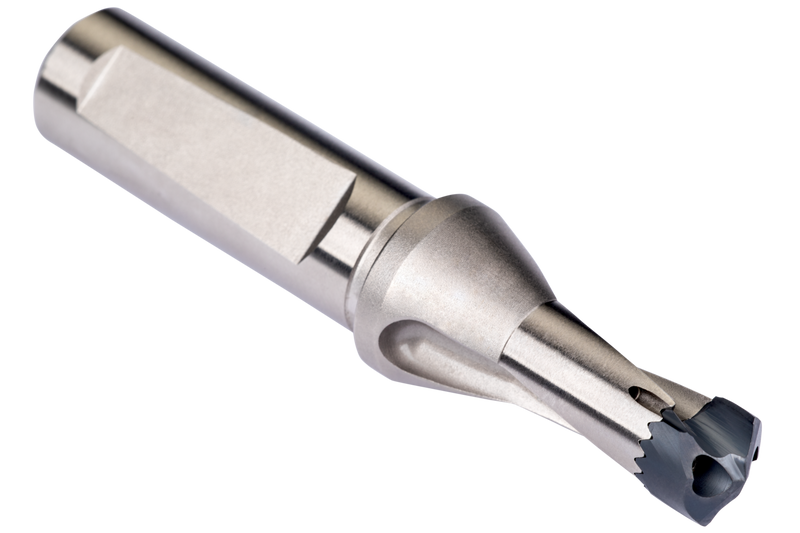

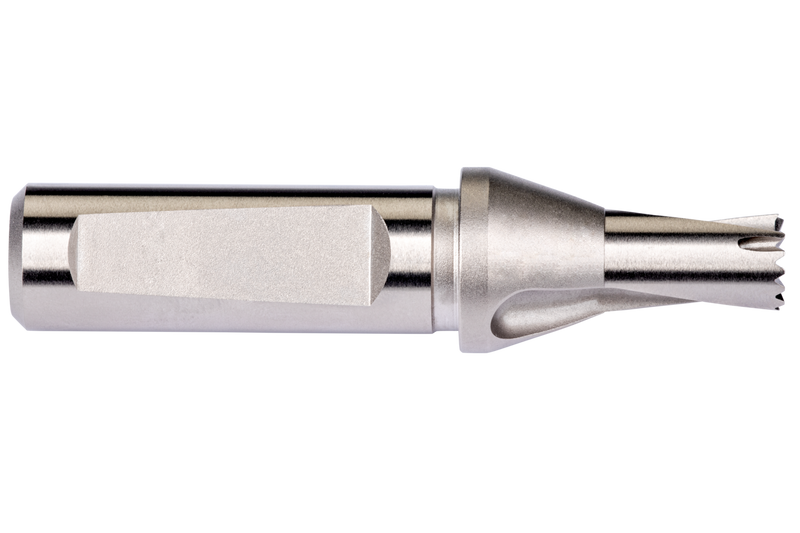

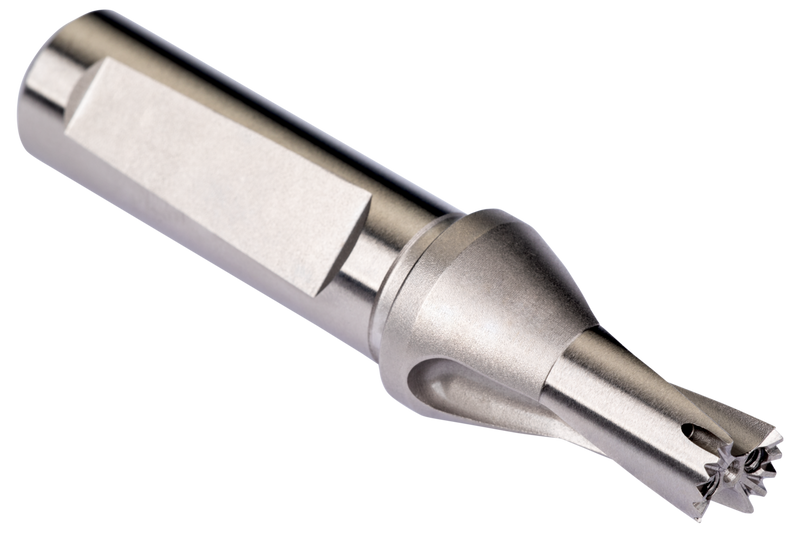

Corps de foret à têtes interchangeables DOR HYDRA avec queue ISO 9766 avec méplat et collerette, taille 13,0 mm avec une longueur totale de 90 mm et une longueur de coupe de 27 mm selon la norme DORMER pour le perçage 1,5xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 13 à 13,5 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85113.0
GradePlaqué nickel
Product Number7833299
Product FamilyH851
Dimensions
Overall Length — in (OAL)3.5433"
Overall Length — mm (OAL)90.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)1.063"
Usable Length — mm (LU)27.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Tool Information
ShankQueue cylindrique Hydra /ISO 9766
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number7833299
EAN7320760894590
File Type Download
H85113.0 — 3D Model STP Download
H85113.0 — 2D Model DXF Download
H85113.0 — Line Drawing PDF Download
