UGC DOR7833332
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$457.00 CAD - $457.00 CAD
$457.00 CAD
$457.00 CAD - $457.00 CAD
$457.00 CAD

Vendu en lots de : 1

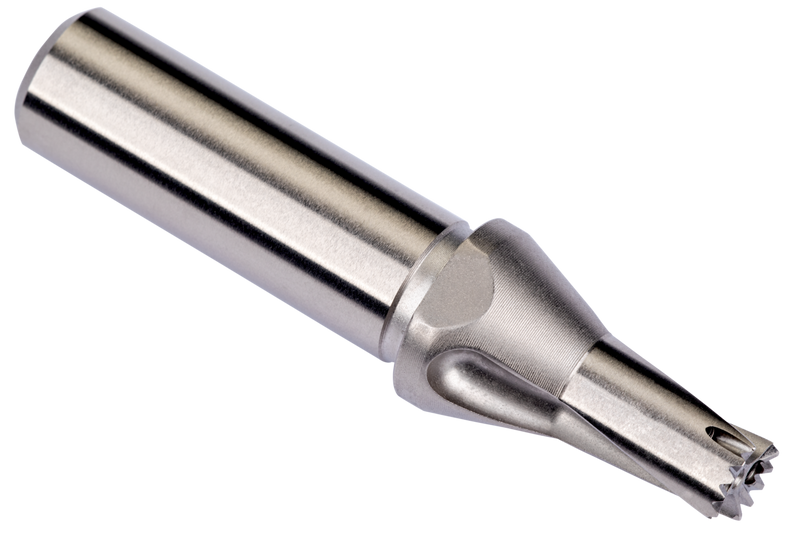

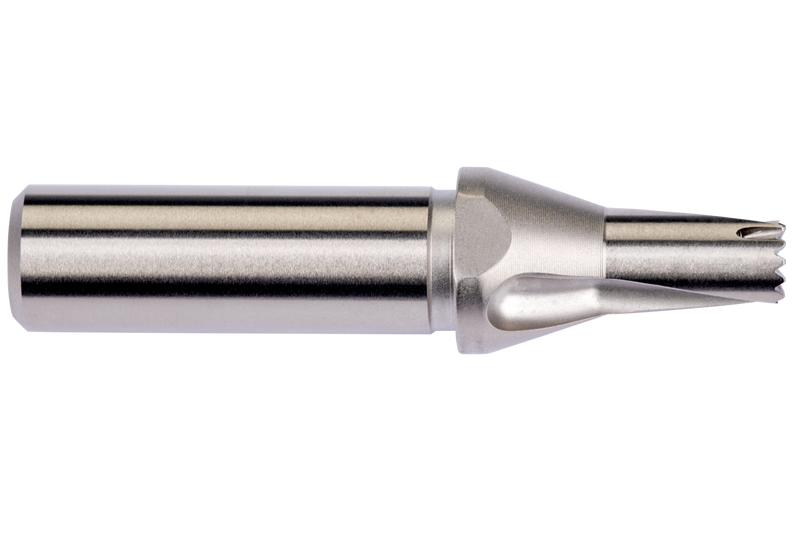

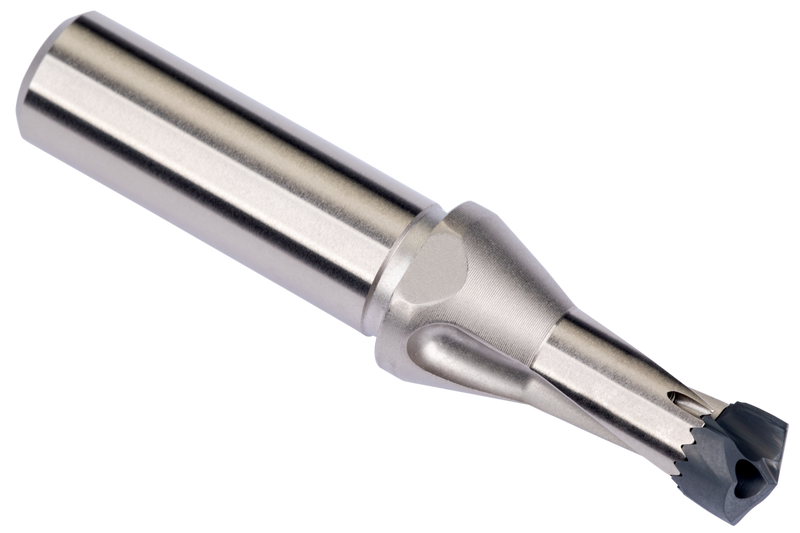

Corps de foret à tête interchangeable DOR HYDRA avec queue ISO 9766 avec collerette et méplat, taille 39/64" avec une longueur totale de 97,3 mm et une longueur de goujure de 32,3 mm selon la norme DORMER pour le perçage 1.5xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 0,5748 à 0,6102"

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85139/64
GradePlaqué nickel
Product Number7833332
Product FamilyH851
Dimensions
Overall Length — in (OAL)3.8307"
Overall Length — mm (OAL)97.3 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)1.2717"
Usable Length — mm (LU)32.3 mm
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.05 mm
Tool Information
ShankHydra tige Cylindrique /ISO 9766
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number7833332
EAN7320760894620
File Type Download
H85139/64 — 3D Model STP Download
H85139/64 — 2D Model DXF Download
H85139/64 — Line Drawing PDF Download
