H85111/16
H85111/16
H85111/16
H85111/16

H85111/16

UGC DOR7833334
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$488.00 CAD - $488.00 CAD
$488.00 CAD
$488.00 CAD - $488.00 CAD
$488.00 CAD

Vendu en lots de : 1

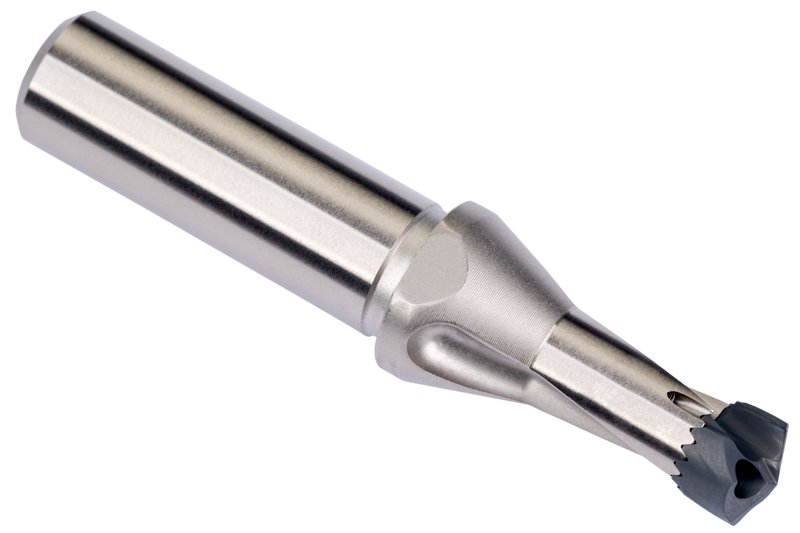

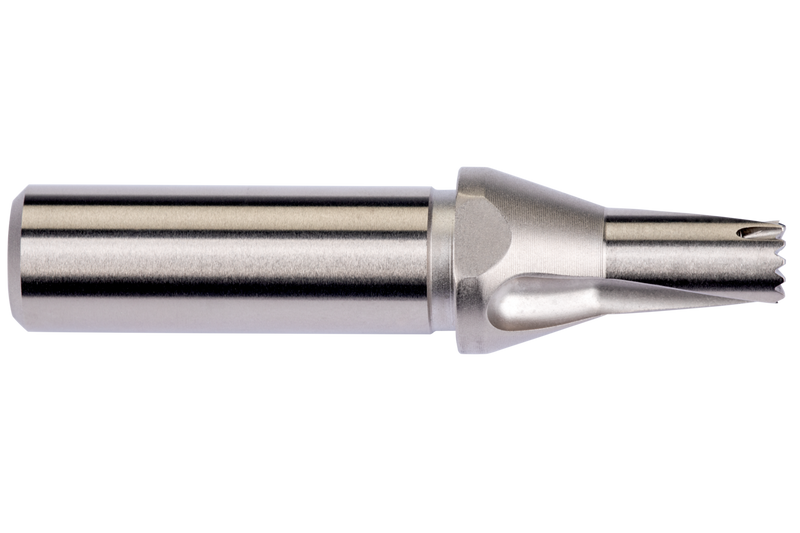

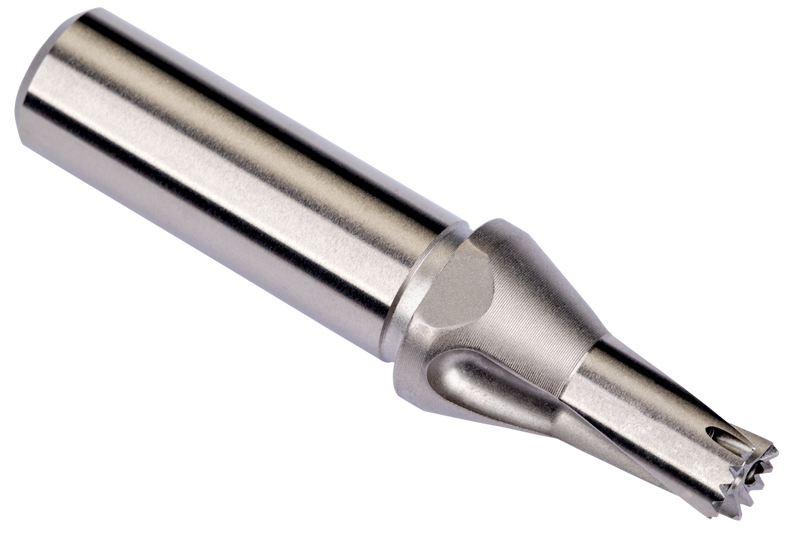

Corps de foret à tête amovible DOR HYDRA avec queue ISO 9766 avec méplat et collerette, taille 11/16" avec une longueur totale de 101,4 mm et une longueur de goujure de 36,4 mm selon la norme DORMER pour le perçage à 1.5xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 0,6535 à 0,689"

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85111/16
GradePlaqué nickel
Product Number7833334
Product FamilyH851
Dimensions
Overall Length — in (OAL)3.9921"
Overall Length — mm (OAL)101.4 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)1.4331"
Usable Length — mm (LU)36.4 mm
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.05 mm
Tool Information
ShankHydra shank cylindrique / ISO 9766
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number7833334
EAN7320760894644
File Type Download
H85111/16 — 3D Model STP Download
H85111/16 — 2D Model DXF Download
H85111/16 — Line Drawing PDF Download
