UGC DOR7833335
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$501.00 CAD - $501.00 CAD
$501.00 CAD
$501.00 CAD - $501.00 CAD
$501.00 CAD

Vendu en lots de : 1

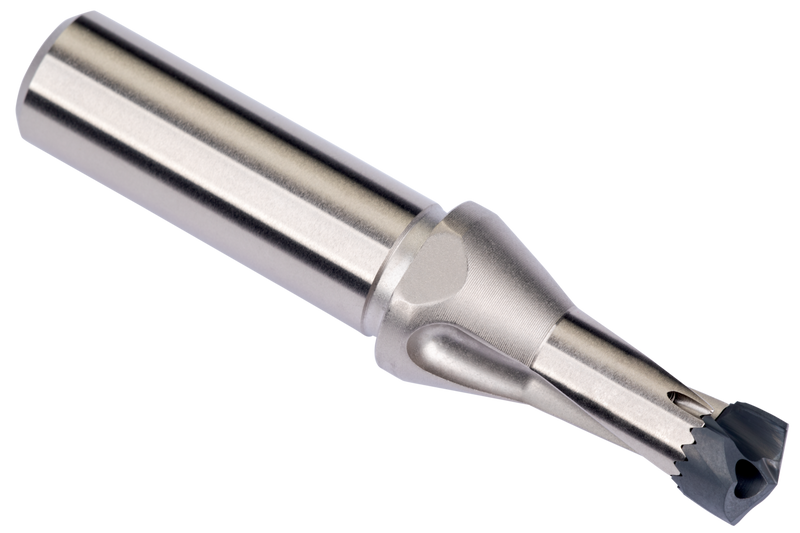

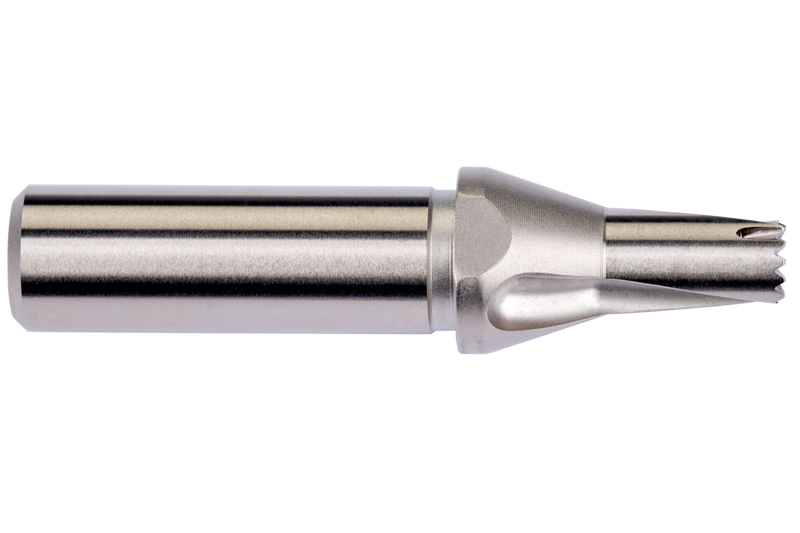

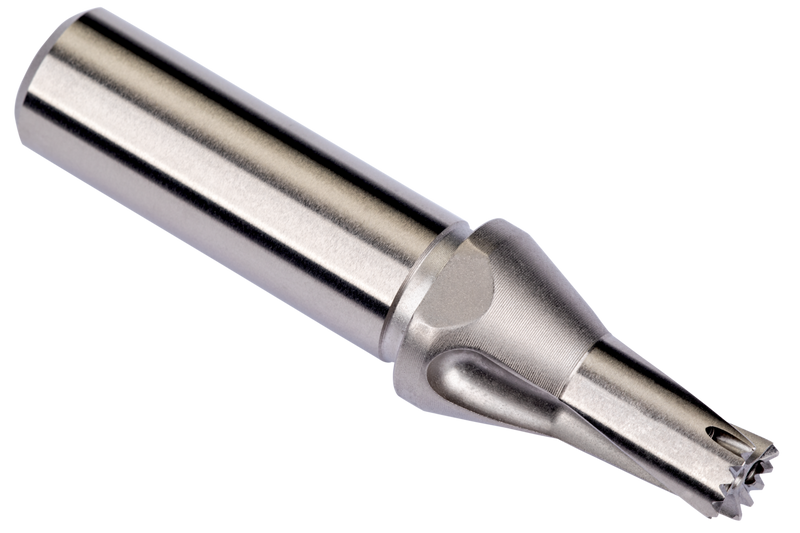

Corps de foret à tête amovible DOR HYDRA avec queue ISO 9766 avec méplat et bride, taille 23/32" avec une longueur totale de 104mm et une longueur de coupe de 39mm selon la norme DORMER pour le perçage 1.5xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 0.6929 à 0.7283"

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85123/32
GradePlaqué nickel
Product Number7833335
Product FamilyH851
Dimensions
Overall Length — in (OAL)4.0945"
Overall Length — mm (OAL)104.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)1.5354"
Usable Length — mm (LU)39.0 mm
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.05 mm
Tool Information
ShankQueue cylindrique Hydra /ISO 9766
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number7833335
EAN7320760894651
File Type Download
H85123/32 — 3D Model STP Download
H85123/32 — 2D Model DXF Download
H85123/32 — Line Drawing PDF Download
