UGC DOR7833336
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$457.00 CAD - $457.00 CAD
$457.00 CAD
$457.00 CAD - $457.00 CAD
$457.00 CAD

Vendu en lots de : 1

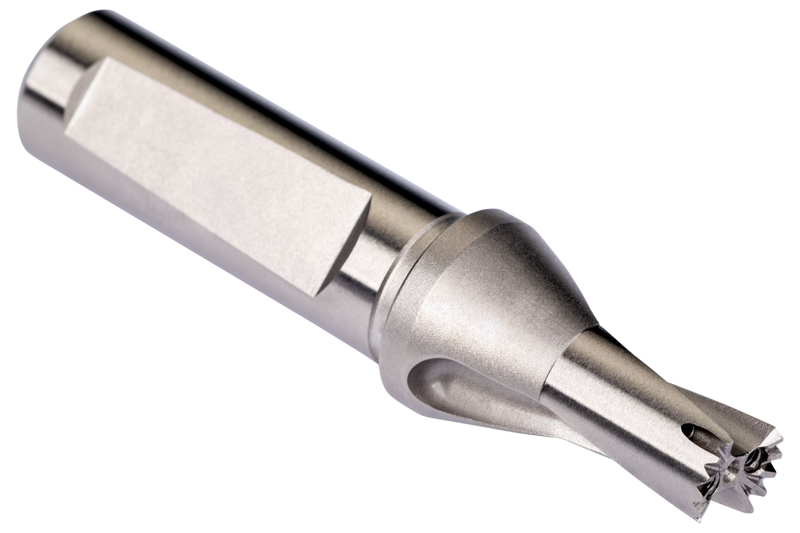

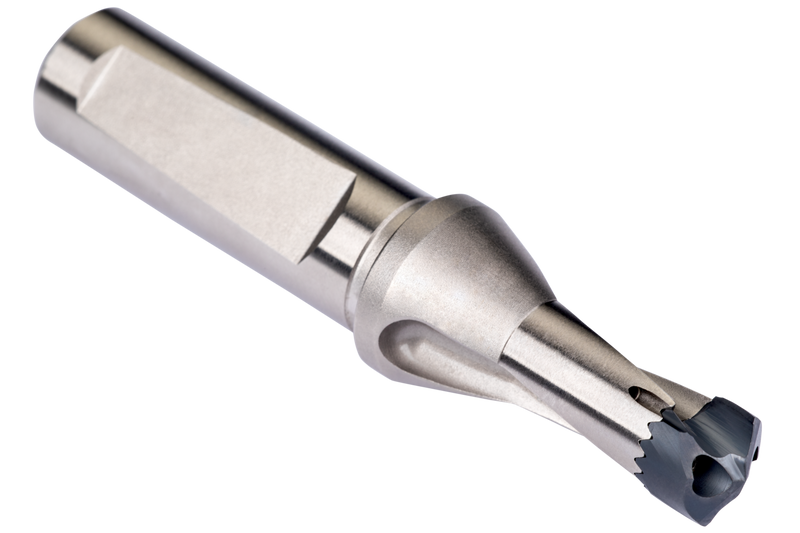

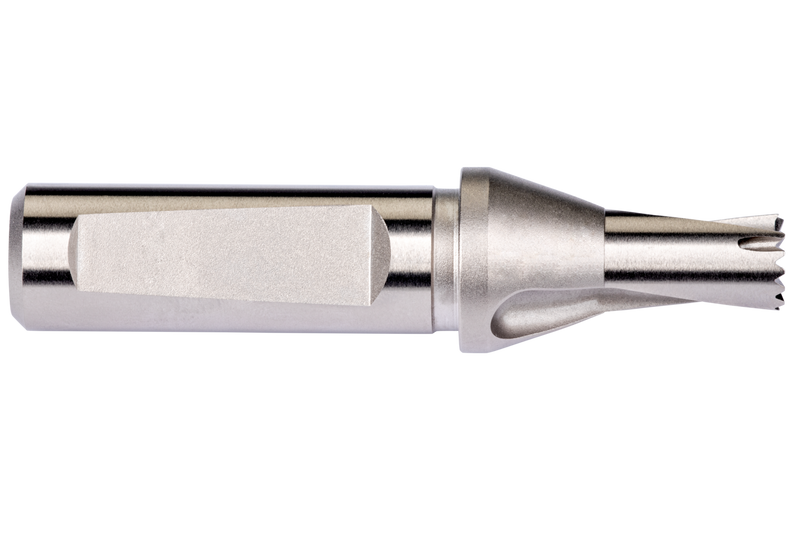

Corps de foret à tête amovible DOR HYDRA avec queue ISO 9766 avec méplat et bride, taille 15,0 mm, d'une longueur totale de 97,3 mm et d'une longueur de goujure de 32,3 mm, selon la norme DORMER pour le perçage 1,5xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 14,6 à 15,5 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85115.0
GradePlaqué nickel
Product Number7833336
Product FamilyH851
Dimensions
Overall Length — in (OAL)3.8307"
Overall Length — mm (OAL)97.3 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)1.2717"
Usable Length — mm (LU)32.3 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Tool Information
ShankTige hydraulique cylindrique /ISO 9766
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number7833336
EAN7320760894668
File Type Download
H85115.0 — 3D Model STP Download
H85115.0 — 2D Model DXF Download
H85115.0 — Line Drawing PDF Download
