H85116.0
H85116.0
H85116.0
H85116.0

H85116.0

UGC DOR7833337
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$476.00 CAD - $476.00 CAD
$476.00 CAD
$476.00 CAD - $476.00 CAD
$476.00 CAD

Vendu en lots de : 1

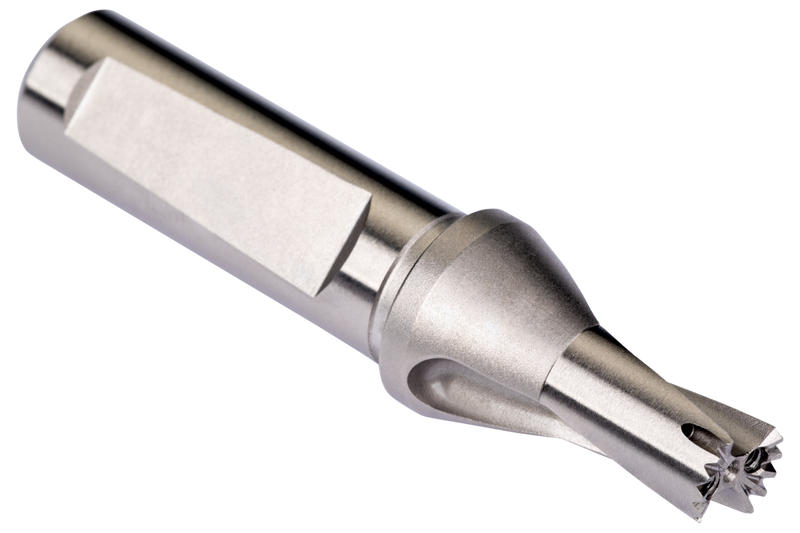

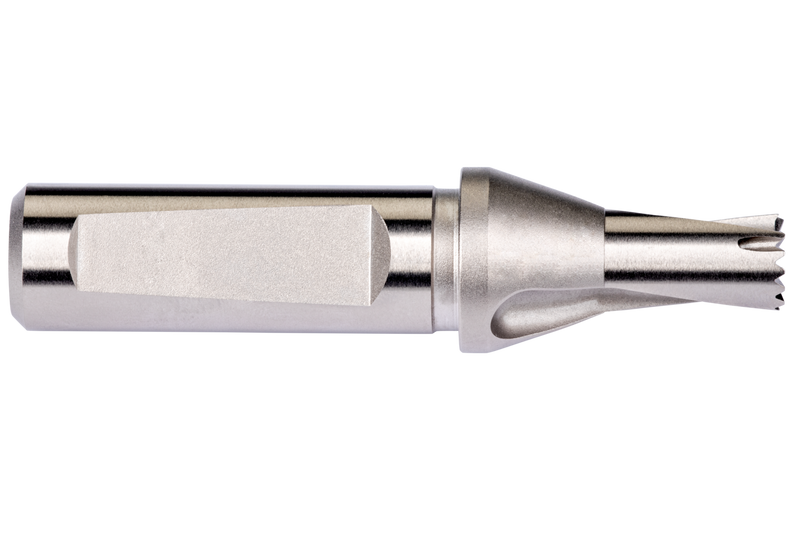

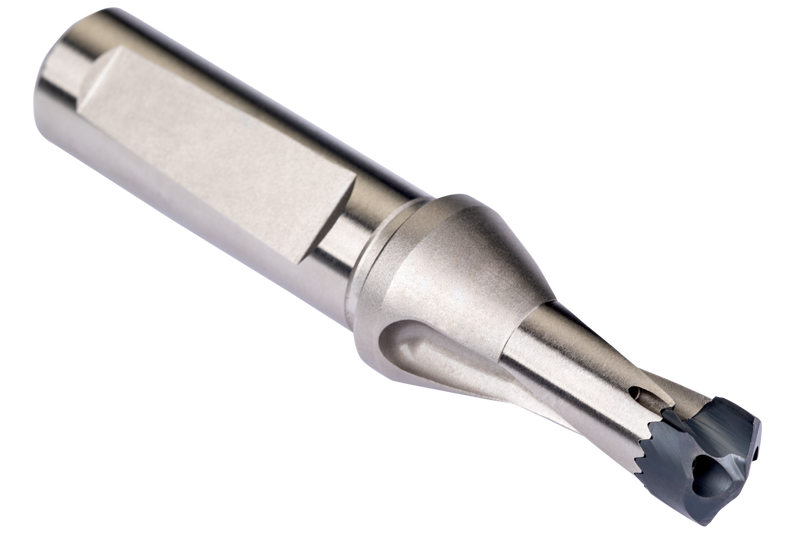

Corps de foret à tête interchangeable DORMER HYDRA avec queue ISO 9766 avec collerette et méplat, taille 16,0 mm avec une longueur totale de 99,9 mm et une longueur de goujure de 34,9 mm selon la norme DORMER pour le perçage 1.5xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 15,6 à 16,5 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85116.0
GradePlaqué nickel
Product Number7833337
Product FamilyH851
Dimensions
Overall Length — in (OAL)3.9331"
Overall Length — mm (OAL)99.9 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)1.374"
Usable Length — mm (LU)34.9 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Tool Information
ShankHydra tige Cylindrique /ISO 9766
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number7833337
EAN7320760894675
File Type Download
H85116.0 — 3D Model STP Download
H85116.0 — 2D Model DXF Download
H85116.0 — Line Drawing PDF Download
