UGC DOR7833338
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$488.00 CAD - $488.00 CAD
$488.00 CAD
$488.00 CAD - $488.00 CAD
$488.00 CAD

Vendu en lots de : 1

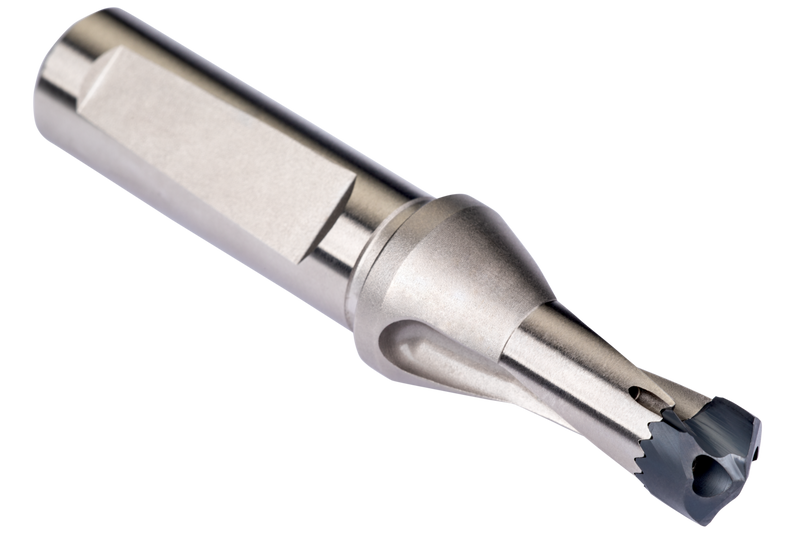

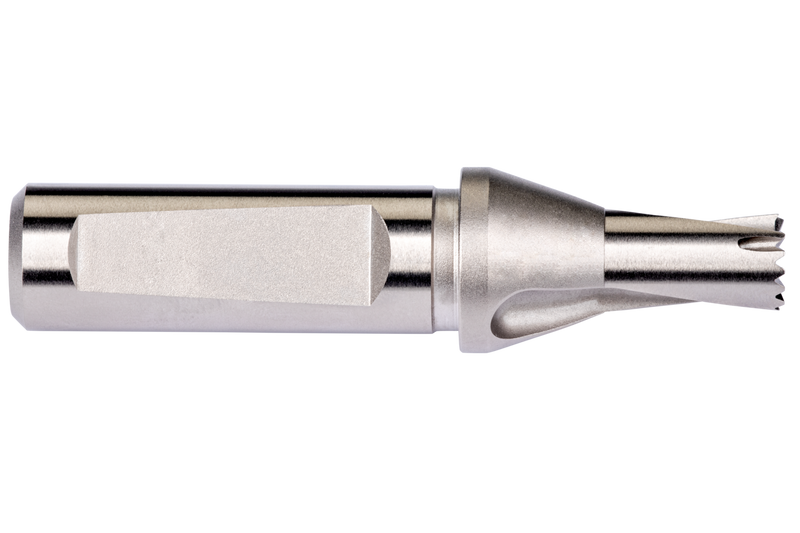

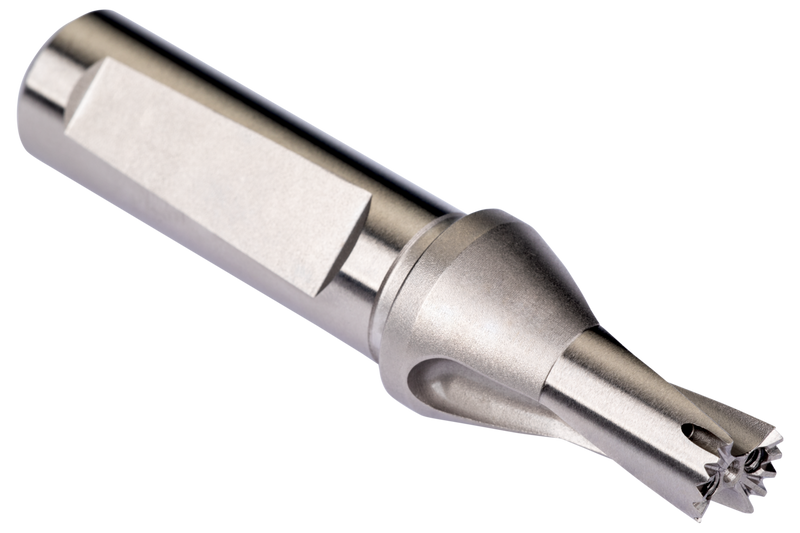

Corps de foret à tête amovible DOR HYDRA avec queue ISO 9766 avec flasque et méplat, diamètre 17,0mm avec une longueur totale de 101,4mm et une longueur de coupe de 36,4mm selon la norme DORMER pour le perçage 1.5xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 16,6 à 17,5mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85117.0
GradePlaqué nickel
Product Number7833338
Product FamilyH851
Dimensions
Overall Length — in (OAL)3.9921"
Overall Length — mm (OAL)101.4 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)1.4331"
Usable Length — mm (LU)36.4 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Tool Information
ShankQueue de mandrin hydraulique cylindrique /ISO 9766
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number7833338
EAN7320760894682
File Type Download
H85117.0 — 3D Model STP Download
H85117.0 — 2D Model DXF Download
H85117.0 — Line Drawing PDF Download
