UGC DOR7833339
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$501.00 CAD - $501.00 CAD
$501.00 CAD
$501.00 CAD - $501.00 CAD
$501.00 CAD

Vendu en lots de : 1

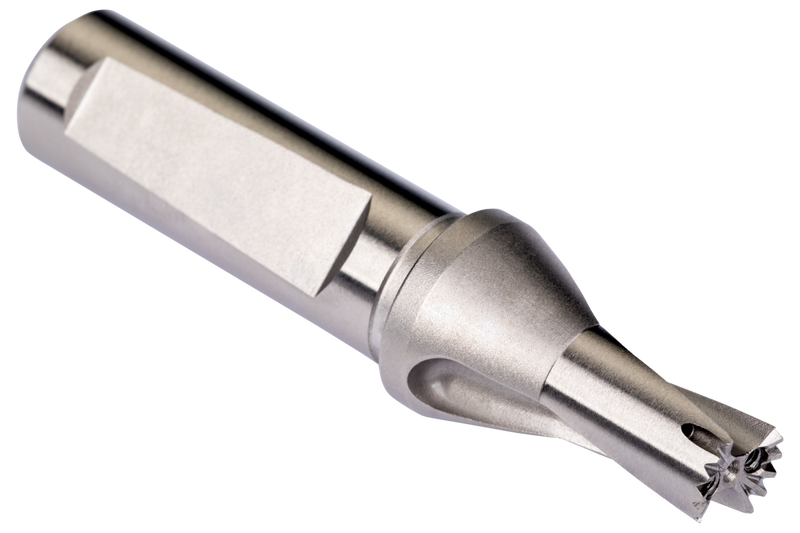

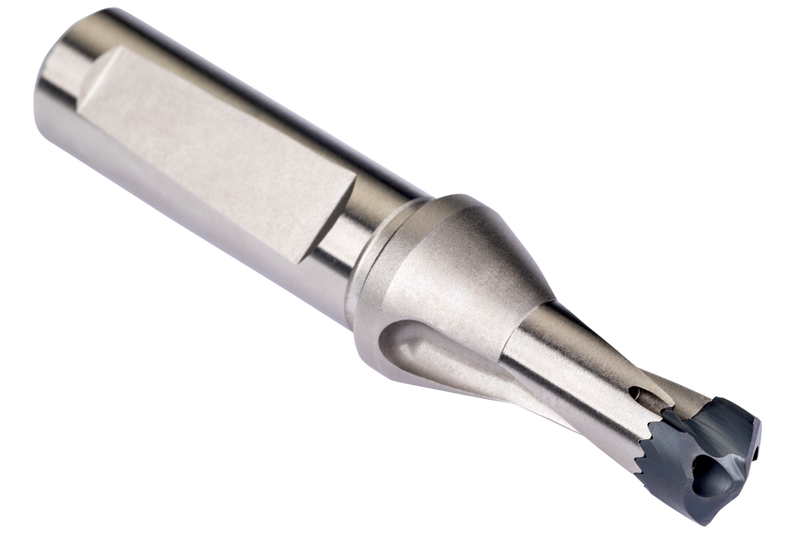

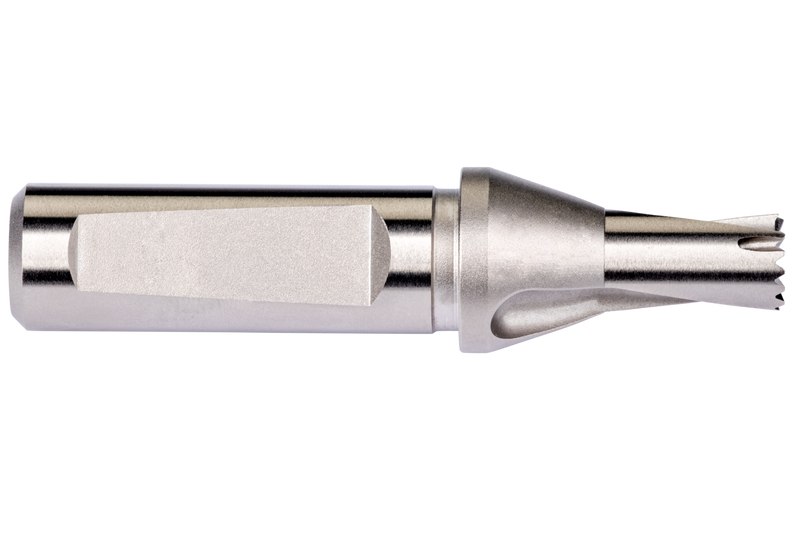

Corps de foret à têtes interchangeables DOR HYDRA avec queue ISO 9766 avec collerette et méplat, taille 18,0 mm, d'une longueur totale de 104 mm et d'une longueur utile de 39 mm, selon la norme DORMER pour le perçage de 1,5xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 17,6 à 18,5 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85118.0
GradePlaqué nickel
Product Number7833339
Product FamilyH851
Dimensions
Overall Length — in (OAL)4.0945"
Overall Length — mm (OAL)104.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)1.5354"
Usable Length — mm (LU)39.0 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Tool Information
ShankQueue cylindrique Hydra /ISO 9766
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number7833339
EAN7320760894699
File Type Download
H85118.0 — 3D Model STP Download
H85118.0 — 2D Model DXF Download
H85118.0 — Line Drawing PDF Download
