UGC DOR7833340
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$513.00 CAD - $513.00 CAD
$513.00 CAD
$513.00 CAD - $513.00 CAD
$513.00 CAD

Vendu en lots de : 1

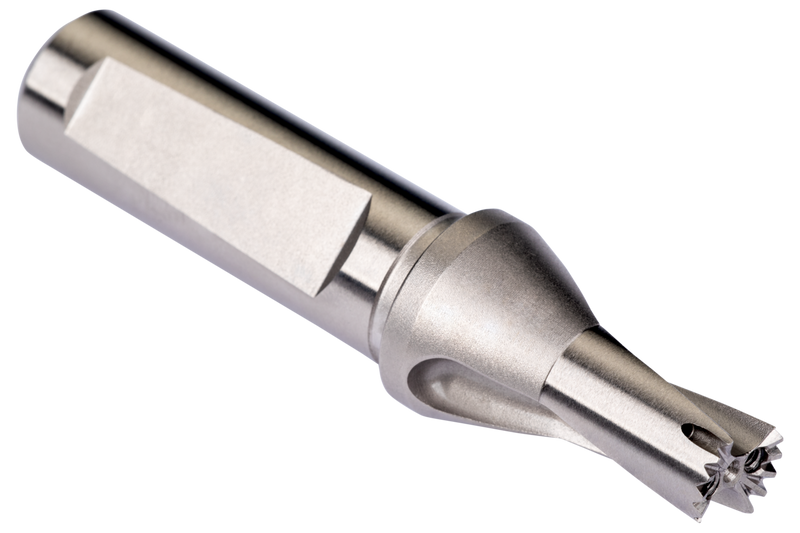

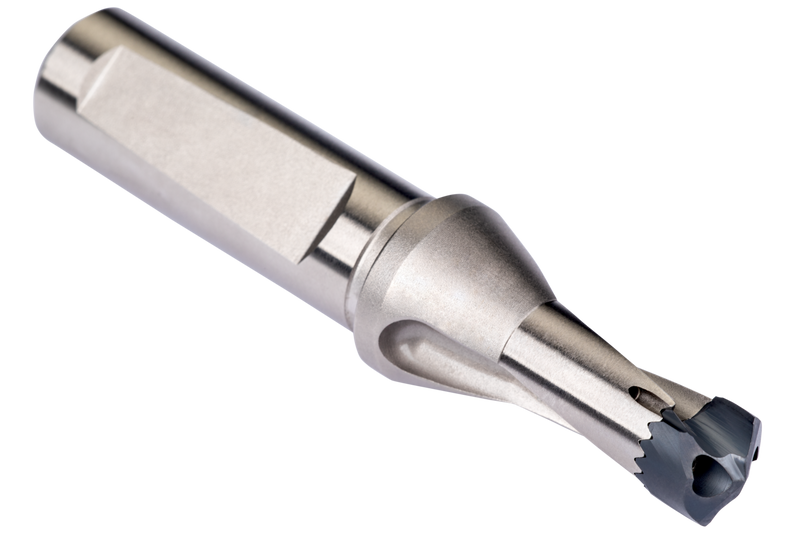

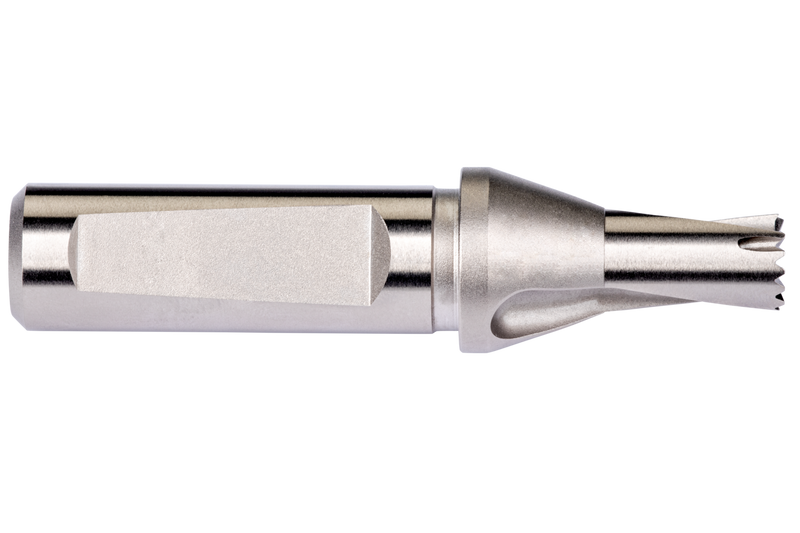

Corps de foret à tête amovible DOR HYDRA avec queue ISO 9766 à méplat et bride, diamètre 19,0 mm, longueur totale 111,4 mm et longueur utile 40,4 mm selon la norme DORMER pour le perçage en 1,5xD avec plaquettes HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) de diamètre 18,6 à 19,5 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85119.0
GradePlaqué nickel
Product Number7833340
Product FamilyH851
Dimensions
Overall Length — in (OAL)4.3858"
Overall Length — mm (OAL)111.4 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)1.5906"
Usable Length — mm (LU)40.4 mm
Connection Dia. — in (DCON)0.9843"
Connection Dia. — mm (DCON)25.0 mm
Tool Information
ShankQueue cylindrique Hydra /ISO 9766
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number7833340
EAN7320760894705
File Type Download
H85119.0 — 3D Model STP Download
H85119.0 — 2D Model DXF Download
H85119.0 — Line Drawing PDF Download
