H85121.0
H85121.0
H85121.0
H85121.0

H85121.0

UGC DOR7833342
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$540.00 CAD - $540.00 CAD
$540.00 CAD
$540.00 CAD - $540.00 CAD
$540.00 CAD

Vendu en lots de : 1

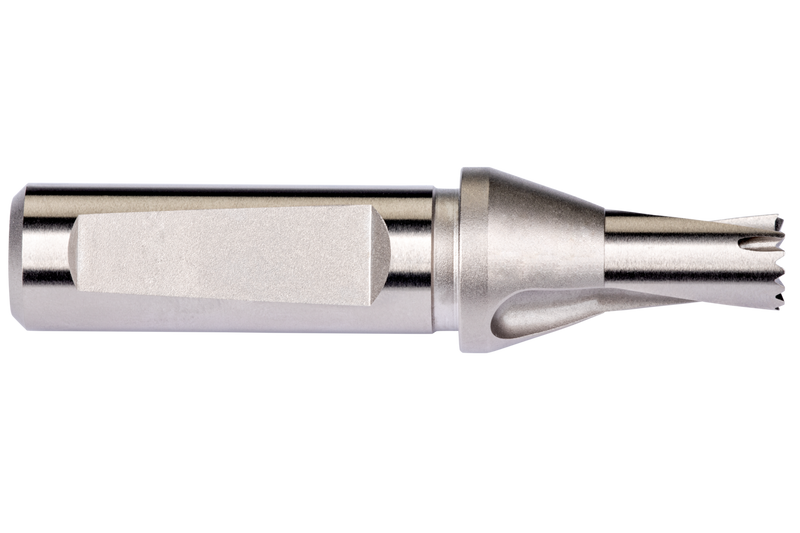

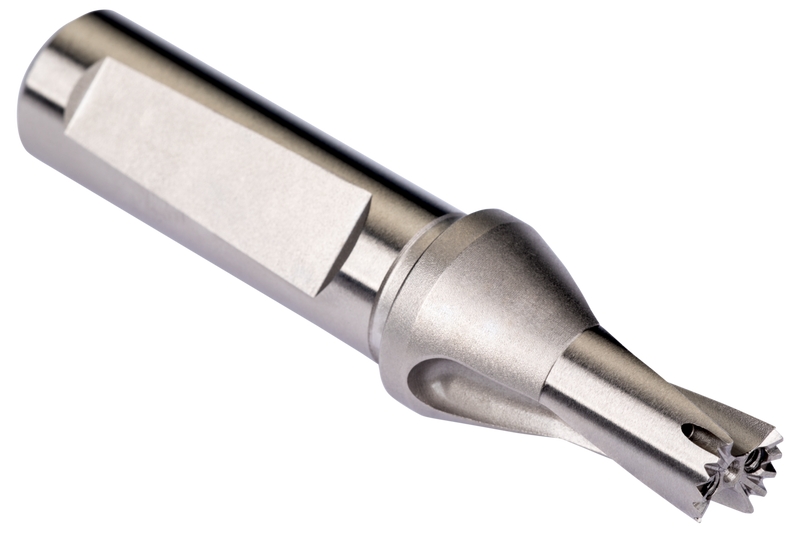

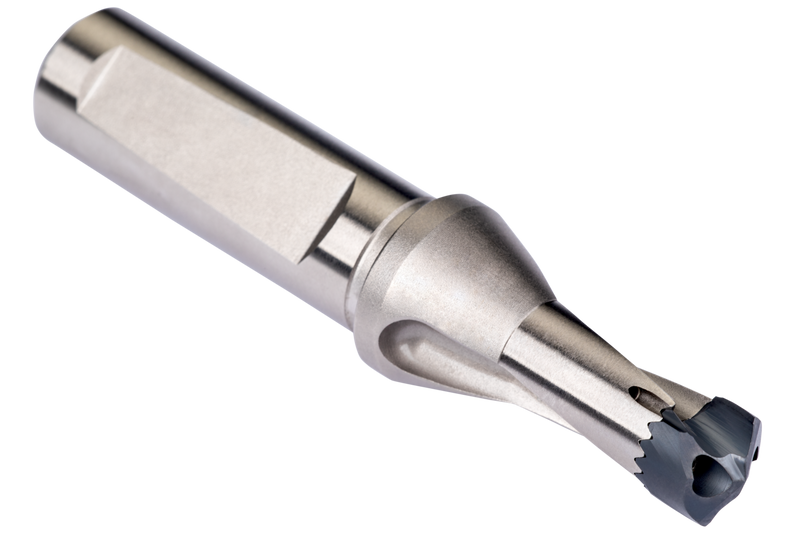

Corps de foret à têtes interchangeables DOR HYDRA avec queue ISO 9766 avec collerette et plat, taille 21,0mm avec une longueur totale de 115,5mm et une longueur de goujure de 44,5mm selon la norme DORMER pour le perçage 1,5xD avec les têtes HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) de diamètre 20,64 jusqu'à 21,5mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85121.0
GradePlaqué nickel
Product Number7833342
Product FamilyH851

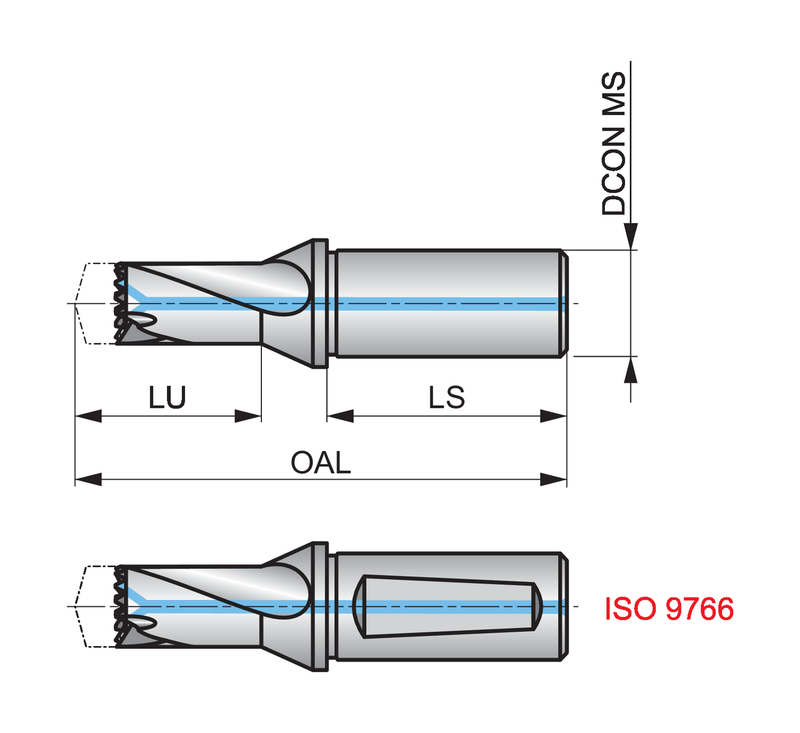

Dimensions
Overall Length — in (OAL)4.5472"
Overall Length — mm (OAL)115.5 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)1.752"
Usable Length — mm (LU)44.5 mm
Connection Dia. — in (DCON)0.9843"
Connection Dia. — mm (DCON)25.0 mm
Tool Information
ShankQueue cylindrique Hydra /ISO 9766
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number7833342
EAN7320760894729
File Type Download
H85121.0 — 3D Model STP Download
H85121.0 — 2D Model DXF Download
H85121.0 — Line Drawing PDF Download
