UGC DOR7833343
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$552.00 CAD - $552.00 CAD
$552.00 CAD
$552.00 CAD - $552.00 CAD
$552.00 CAD

Vendu en lots de : 1

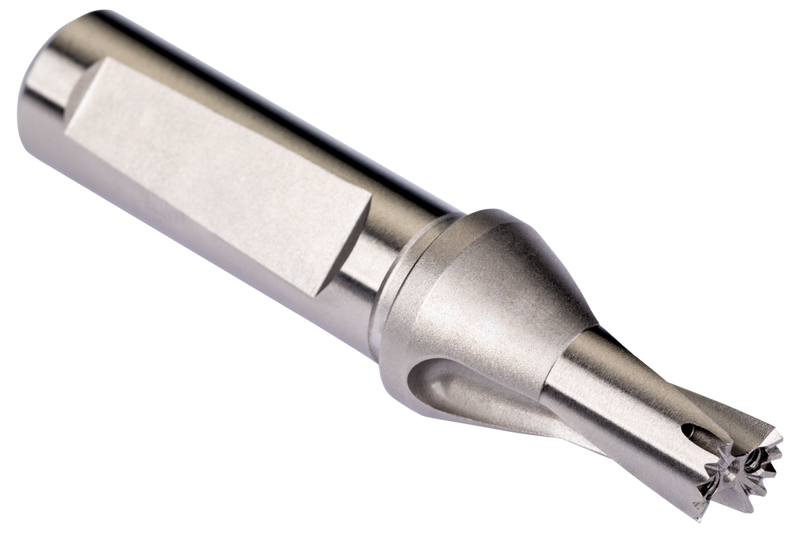

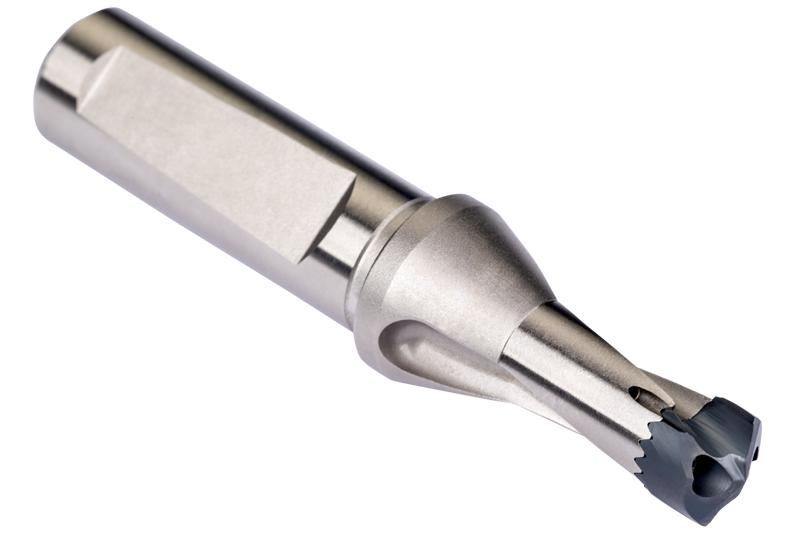

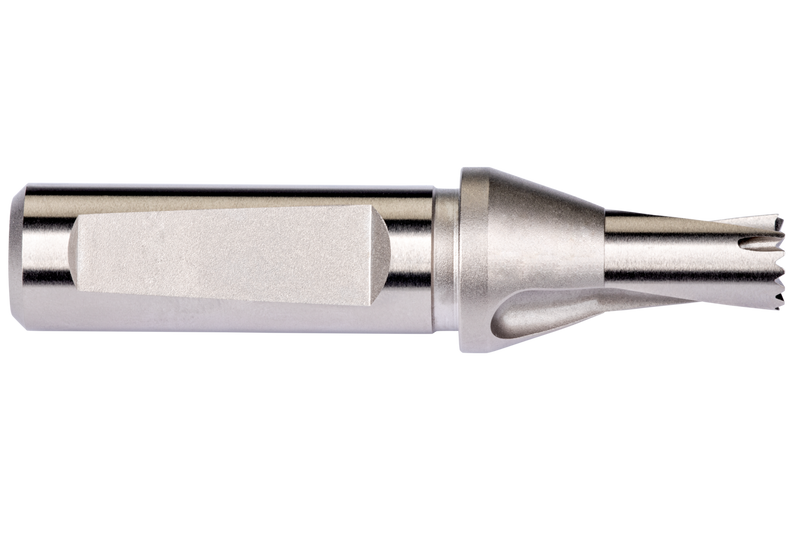

Corps de foret à tête interchangeable DOR HYDRA avec queue ISO 9766 avec méplat et collerette, taille 22,0 mm avec une longueur totale de 117,1 mm et une longueur de goujure de 46,1 mm selon la norme DORMER pour le perçage de 1,5xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 21,83 à 22,7 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85122.0
GradePlaqué nickel
Product Number7833343
Product FamilyH851
Dimensions
Overall Length — in (OAL)4.6102"
Overall Length — mm (OAL)117.1 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)1.815"
Usable Length — mm (LU)46.1 mm
Connection Dia. — in (DCON)0.9843"
Connection Dia. — mm (DCON)25.0 mm
Tool Information
ShankTige Hydra Cylindrique /ISO 9766
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number7833343
EAN7320760894736
File Type Download
H85122.0 — 3D Model STP Download
H85122.0 — 2D Model DXF Download
H85122.0 — Line Drawing PDF Download
