H85149/64
H85149/64
H85149/64
H85149/64

H85149/64

UGC DOR7833345
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$513.00 CAD - $513.00 CAD
$513.00 CAD
$513.00 CAD - $513.00 CAD
$513.00 CAD

Vendu en lots de : 1

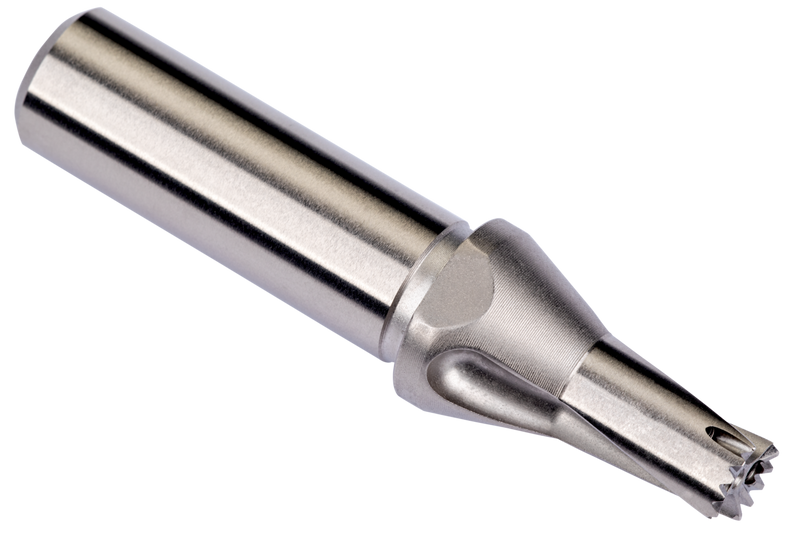

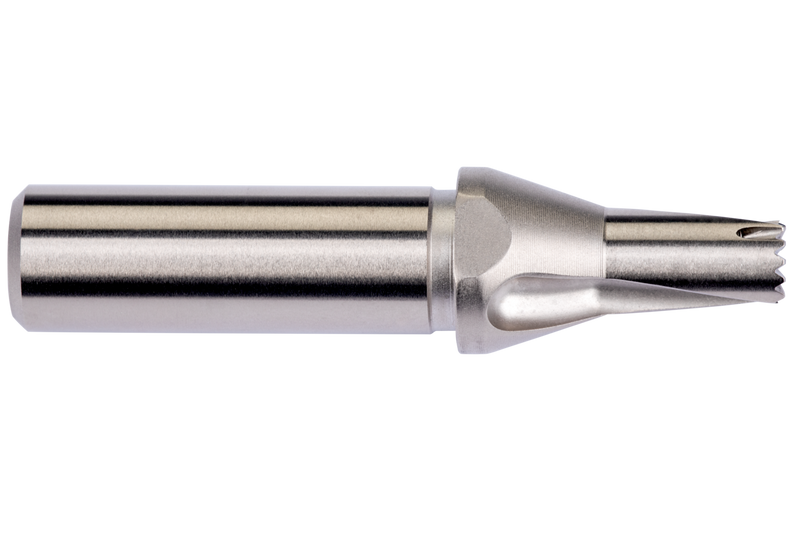

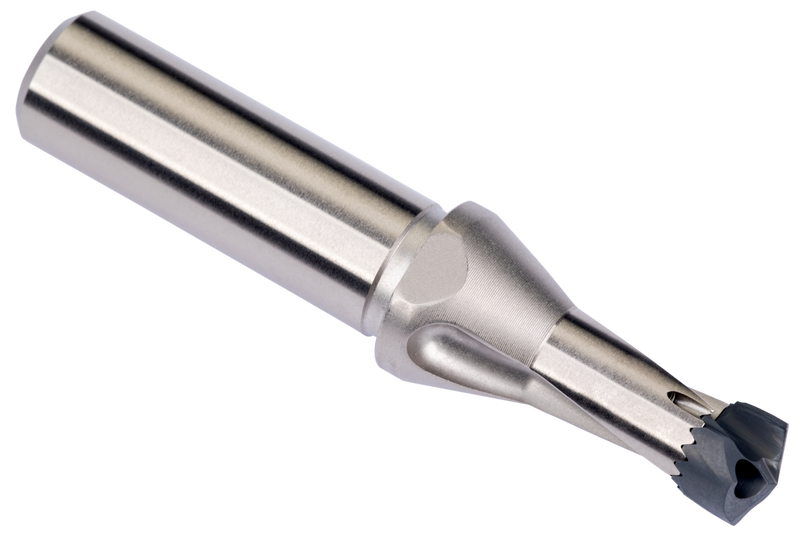

Corps de foret à tête interchangeable DOR HYDRA avec queue ISO 9766 avec collerette et méplat, taille 49/64" avec une longueur totale de 111,4 mm et une longueur de goujure de 40,4 mm selon la norme DORMER pour le perçage 1.5xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 0,7323 à 0,7677"

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85149/64
GradePlaqué nickel
Product Number7833345
Product FamilyH851
Dimensions
Overall Length — in (OAL)4.3858"
Overall Length — mm (OAL)111.4 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)1.5906"
Usable Length — mm (LU)40.4 mm
Connection Dia. — in (DCON)1.0"
Connection Dia. — mm (DCON)25.4 mm
Tool Information
ShankHydra queue Cylindrique / ISO 9766
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number7833345
EAN7320760894750
File Type Download
H85149/64 — 3D Model STP Download
H85149/64 — 2D Model DXF Download
H85149/64 — Line Drawing PDF Download
