H85159/64
H85159/64
H85159/64
H85159/64

H85159/64

UGC DOR7833349
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$567.00 CAD - $567.00 CAD
$567.00 CAD
$567.00 CAD - $567.00 CAD
$567.00 CAD

Vendu en lots de : 1

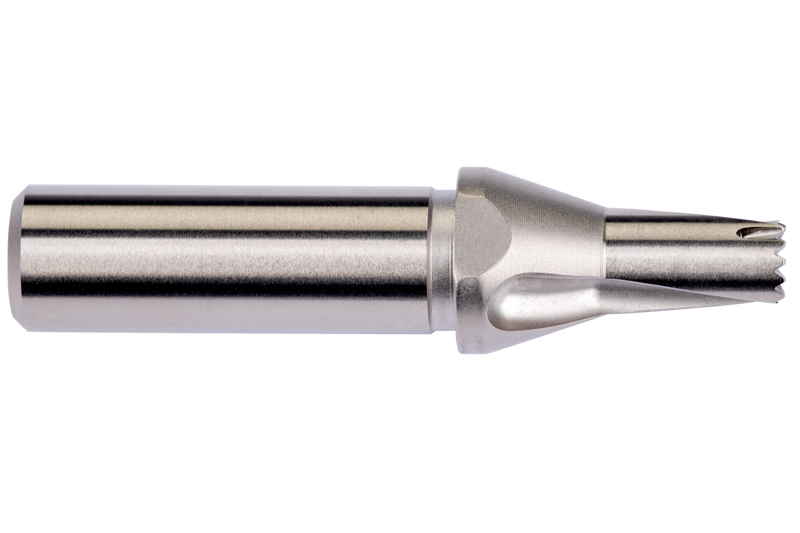

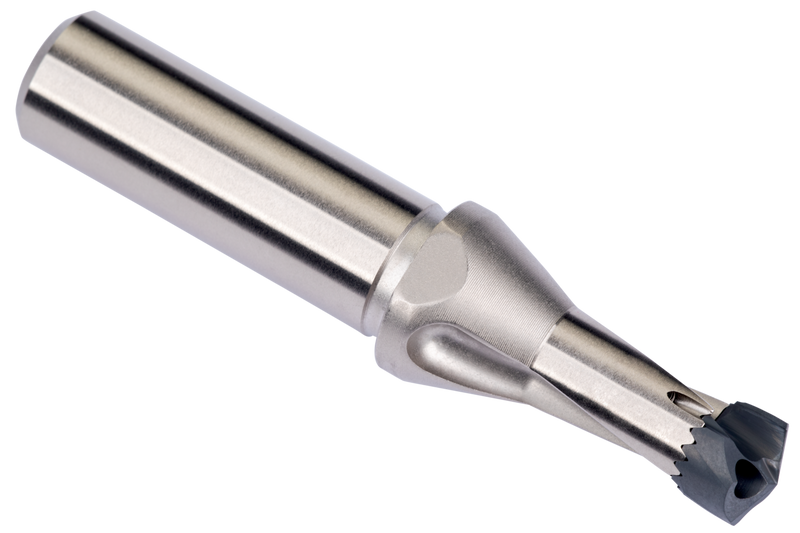

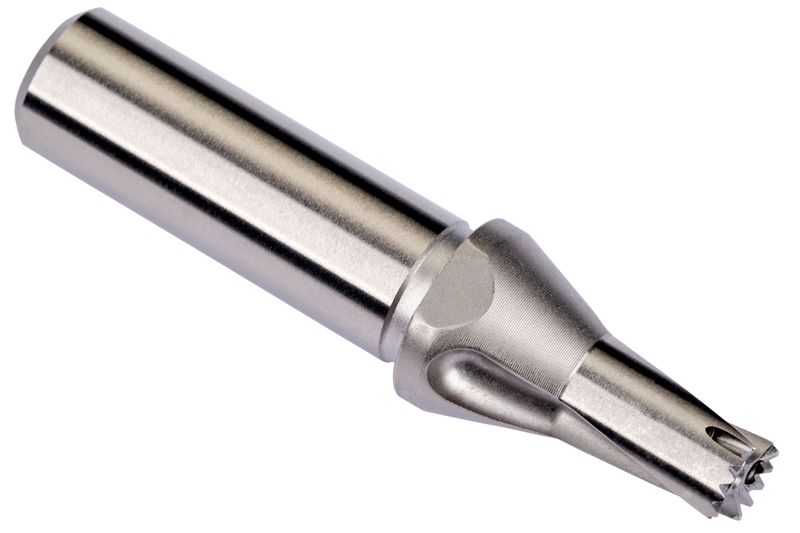

Corps de foret à tête amovible DOR HYDRA avec queue ISO 9766 avec collerette et méplat, taille 59/64" avec une longueur totale de 118mm et une longueur de goujure de 47mm selon la norme DORMER pour le perçage 1.5xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 0.9055 à 0.9252"

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85159/64
GradePlaqué nickel
Product Number7833349
Product FamilyH851

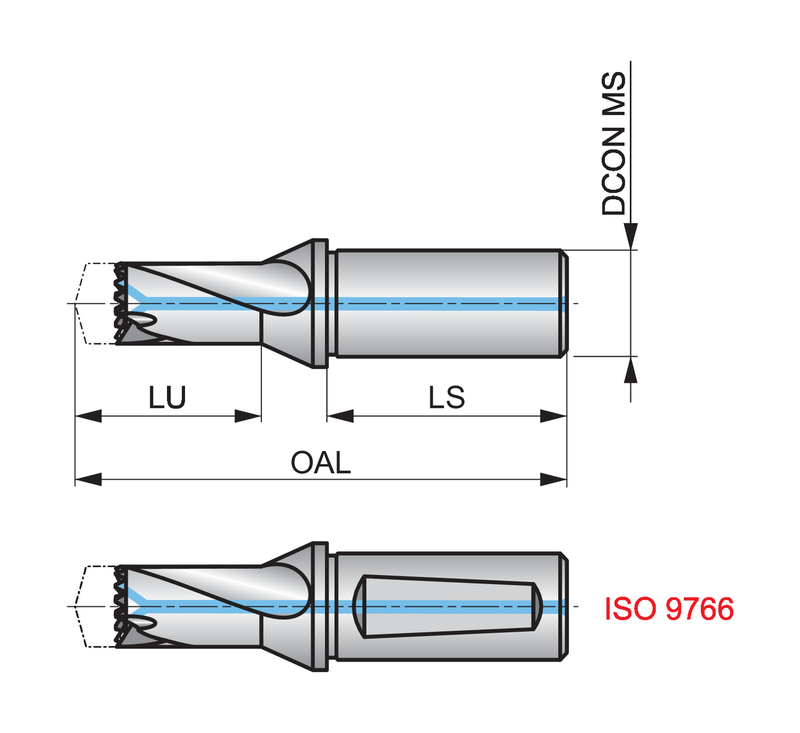

Dimensions
Overall Length — in (OAL)4.6457"
Overall Length — mm (OAL)118.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)1.8504"
Usable Length — mm (LU)47.0 mm
Connection Dia. — in (DCON)1.0"
Connection Dia. — mm (DCON)25.4 mm
Tool Information
ShankQueue cylindrique Hydra /ISO 9766
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number7833349
EAN7320760894798
File Type Download
H85159/64 — 3D Model STP Download
H85159/64 — 2D Model DXF Download
H85159/64 — Line Drawing PDF Download
