H8511.3/64
H8511.3/64
H8511.3/64
H8511.3/64

H8511.3/64

UGC DOR7833352
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$609.00 CAD - $609.00 CAD
$609.00 CAD
$609.00 CAD - $609.00 CAD
$609.00 CAD

Vendu en lots de : 1

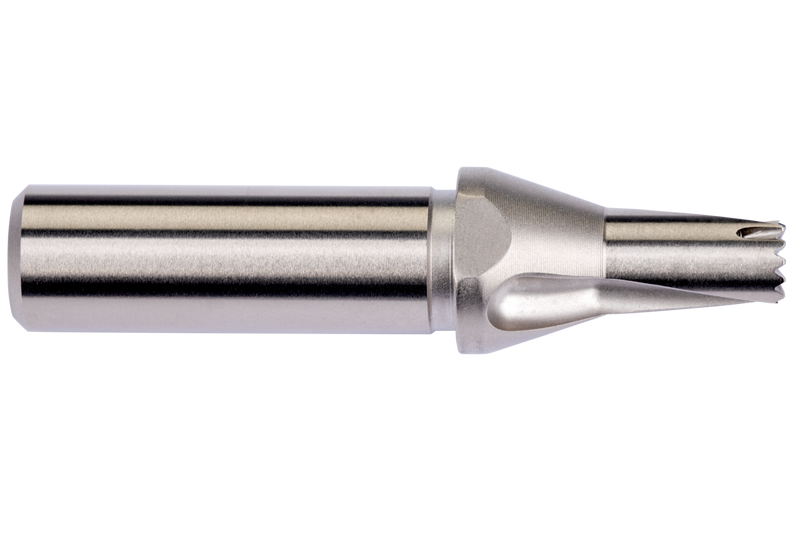

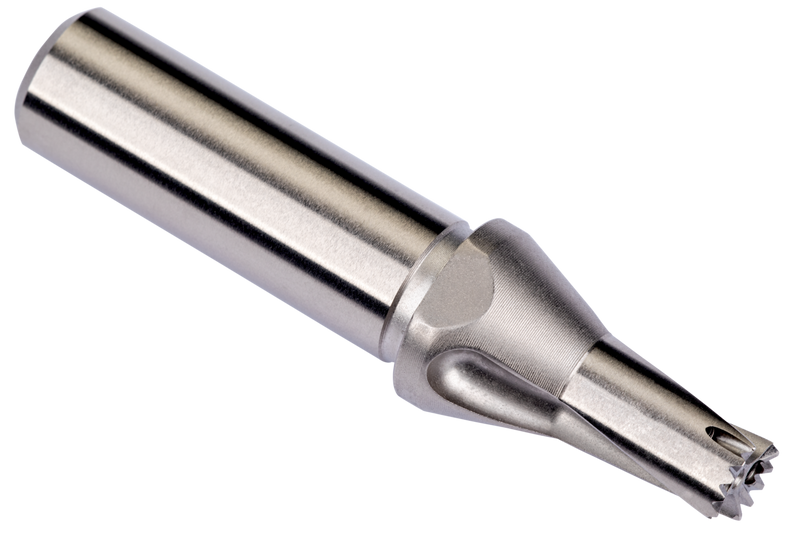

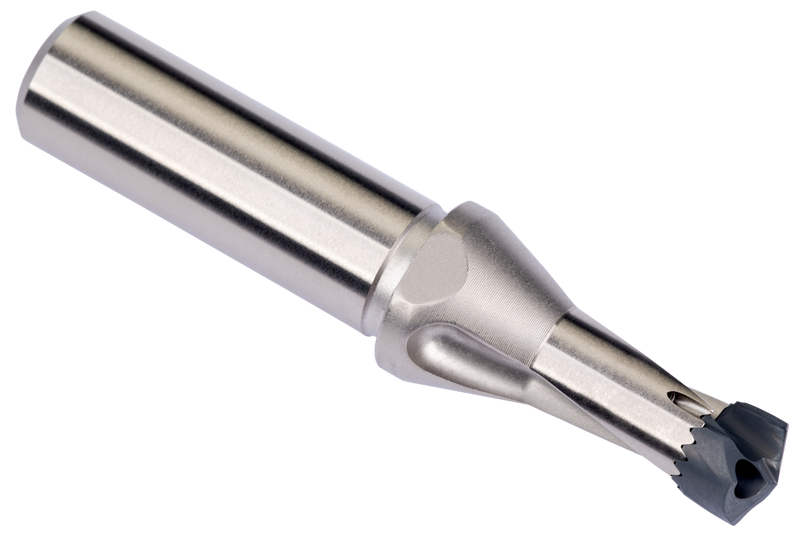

Corps de foret DOR à tête interchangeable HYDRA avec queue ISO 9766 avec collerette et méplat, dimension 1.3/64" avec une longueur totale de 127.3mm et une longueur de goujure de 52.3mm selon la norme DORMER pour un perçage 1.5xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 1.0236 jusqu'à 1.0469" (1.3/64)

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H8511.3/64
GradePlaqué nickel
Product Number7833352
Product FamilyH851
Dimensions
Overall Length — in (OAL)5.0118"
Overall Length — mm (OAL)127.3 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)2.0591"
Usable Length — mm (LU)52.3 mm
Connection Dia. — in (DCON)1.25"
Connection Dia. — mm (DCON)31.75 mm
Tool Information
ShankHydra queue Cylindrique /ISO 9766
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number7833352
EAN7320760894828
File Type Download
H8511.3/64 — 3D Model STP Download
H8511.3/64 — 2D Model DXF Download
H8511.3/64 — Line Drawing PDF Download
