H8511.3/32
H8511.3/32
H8511.3/32
H8511.3/32

H8511.3/32

UGC DOR7833353
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$622.00 CAD - $622.00 CAD
$622.00 CAD
$622.00 CAD - $622.00 CAD
$622.00 CAD

Vendu en lots de : 1

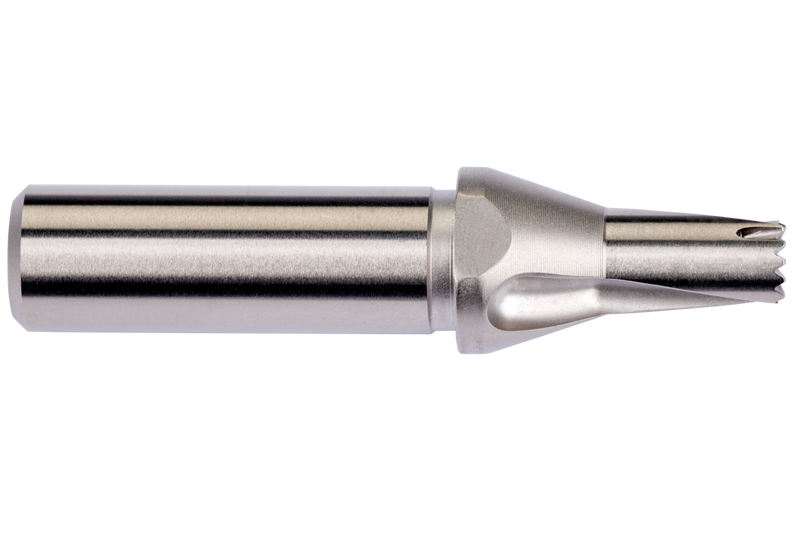

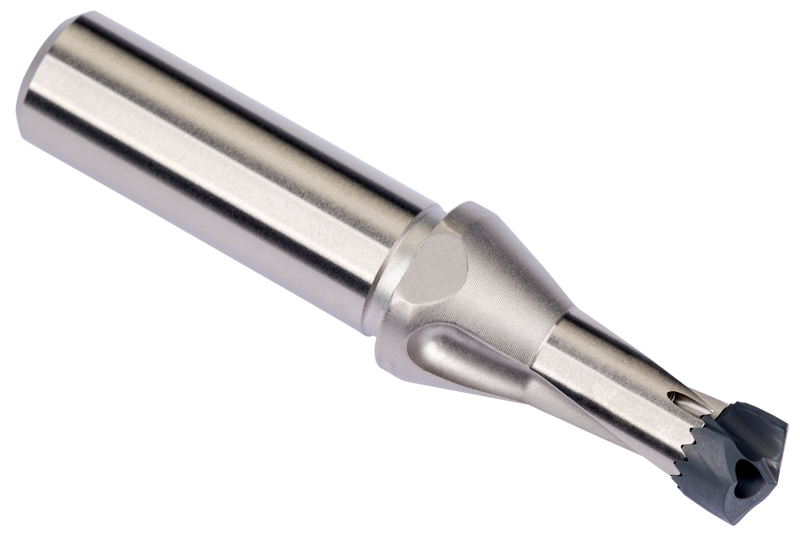

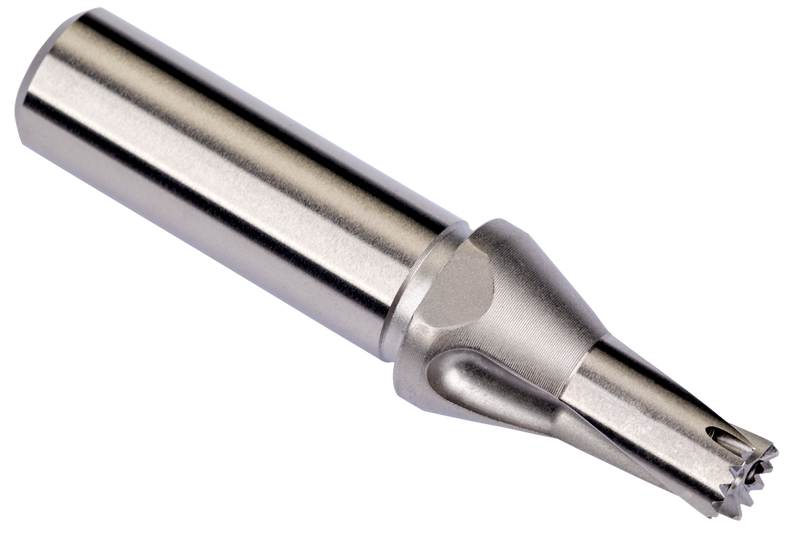

Corps de foret à tête amovible DOR HYDRA avec queue ISO 9766 avec méplat et bride, taille 1.3/32" avec une longueur totale de 127,8 mm et une longueur d'hélice de 52,8 mm selon la norme DORMER pour le perçage 1.5xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 1.0625 (1.1/16) jusqu'à 1.0938" (1.3/32)

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H8511.3/32
GradePlaqué nickel
Product Number7833353
Product FamilyH851

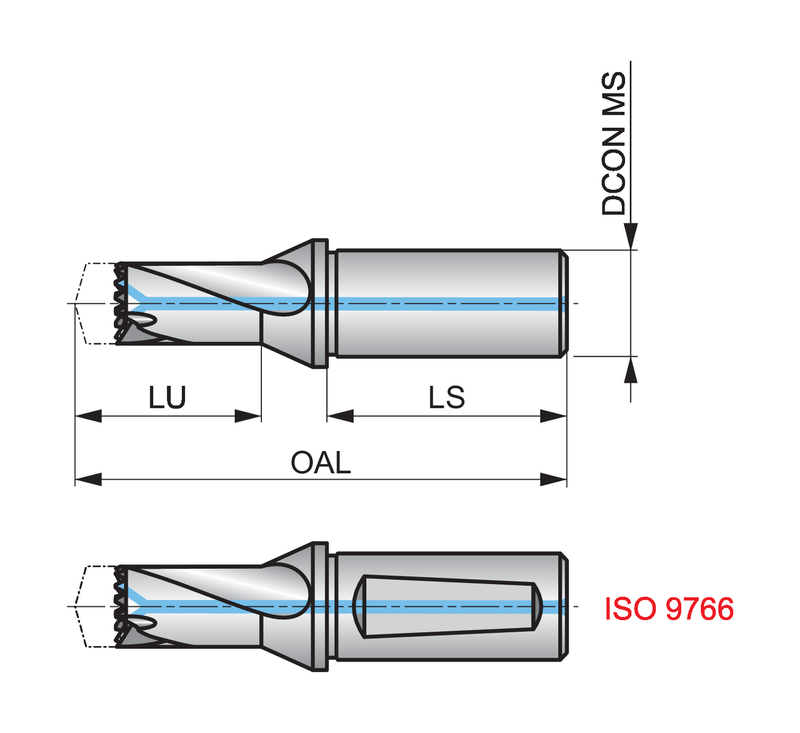

Dimensions
Overall Length — in (OAL)5.0315"
Overall Length — mm (OAL)127.8 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)2.0787"
Usable Length — mm (LU)52.8 mm
Connection Dia. — in (DCON)1.25"
Connection Dia. — mm (DCON)31.75 mm
Tool Information
ShankTige cylindrique Hydra /ISO 9766
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number7833353
EAN7320760894835
File Type Download
H8511.3/32 — 3D Model STP Download
H8511.3/32 — 2D Model DXF Download
H8511.3/32 — Line Drawing PDF Download
