H8511.3/16
H8511.3/16
H8511.3/16
H8511.3/16

H8511.3/16

UGC DOR7833356
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$664.00 CAD - $664.00 CAD
$664.00 CAD
$664.00 CAD - $664.00 CAD
$664.00 CAD

Vendu en lots de : 1

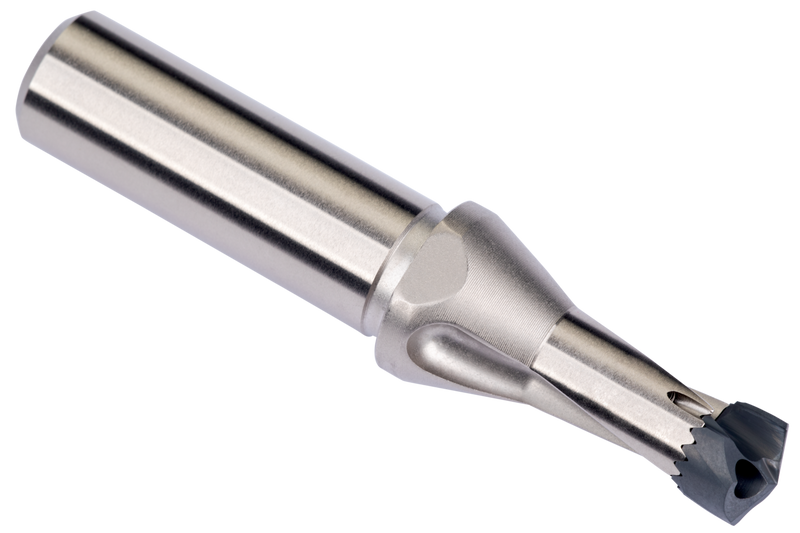

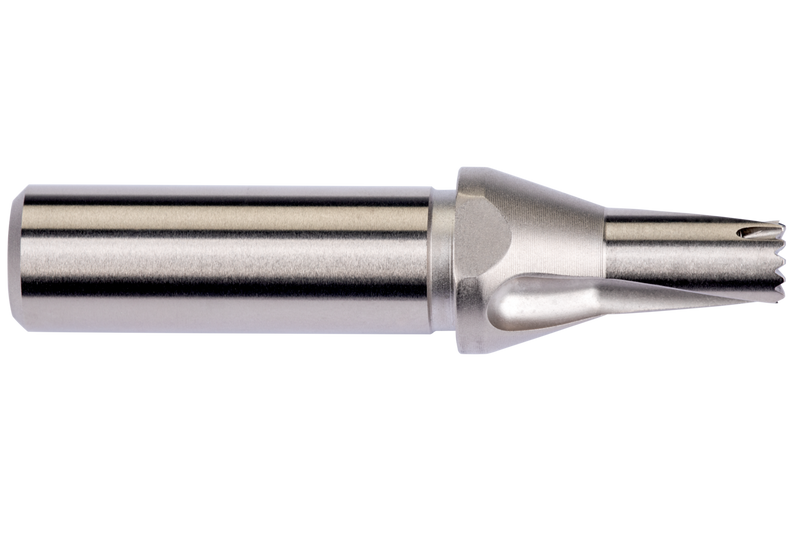

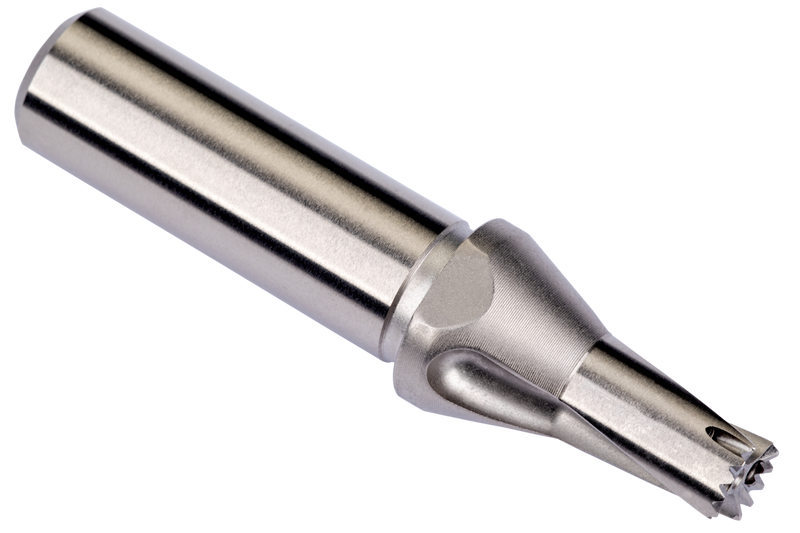

Corps de foret DOR à tête interchangeable HYDRA avec queue ISO 9766 avec collerette et méplat, taille 1.3/16" avec une longueur totale de 133.4mm et une longueur de coupe de 58.4mm selon la norme DORMER pour un perçage 1.5xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 1.1811 jusqu'à 1.2008"

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H8511.3/16
GradePlaqué nickel
Product Number7833356
Product FamilyH851
Dimensions
Overall Length — in (OAL)5.252"
Overall Length — mm (OAL)133.4 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)2.2992"
Usable Length — mm (LU)58.4 mm
Connection Dia. — in (DCON)1.25"
Connection Dia. — mm (DCON)31.75 mm
Tool Information
ShankTige cylindrique Hydra /ISO 9766
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number7833356
EAN7320760894866
File Type Download
H8511.3/16 — 3D Model STP Download
H8511.3/16 — 2D Model DXF Download
H8511.3/16 — Line Drawing PDF Download
