H85125.0
H85125.0
H85125.0
H85125.0

H85125.0

UGC DOR7833358
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$596.00 CAD - $596.00 CAD
$596.00 CAD
$596.00 CAD - $596.00 CAD
$596.00 CAD

Vendu en lots de : 1

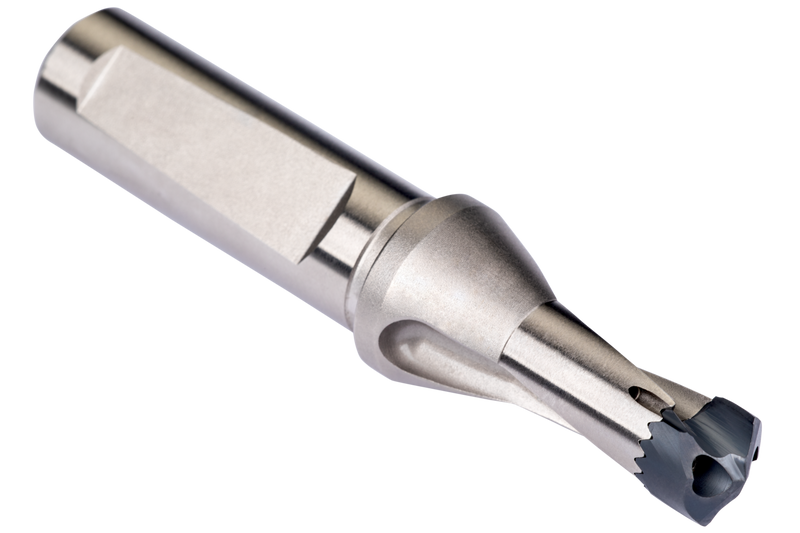

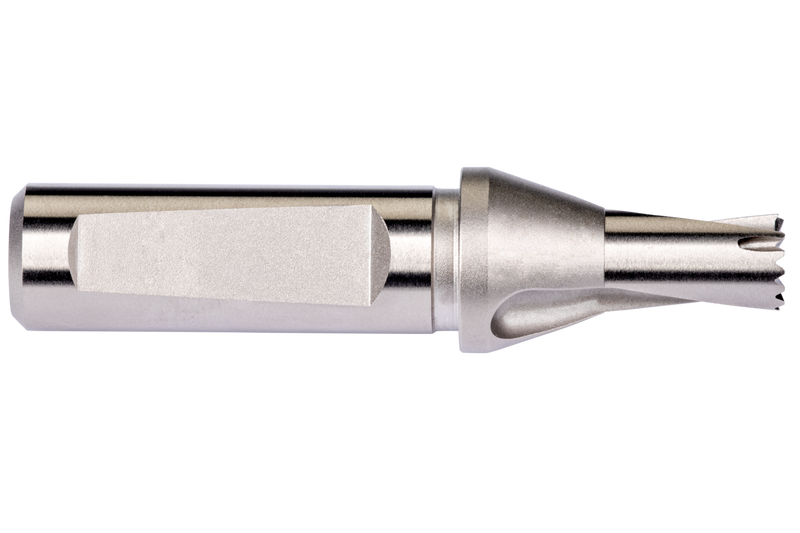

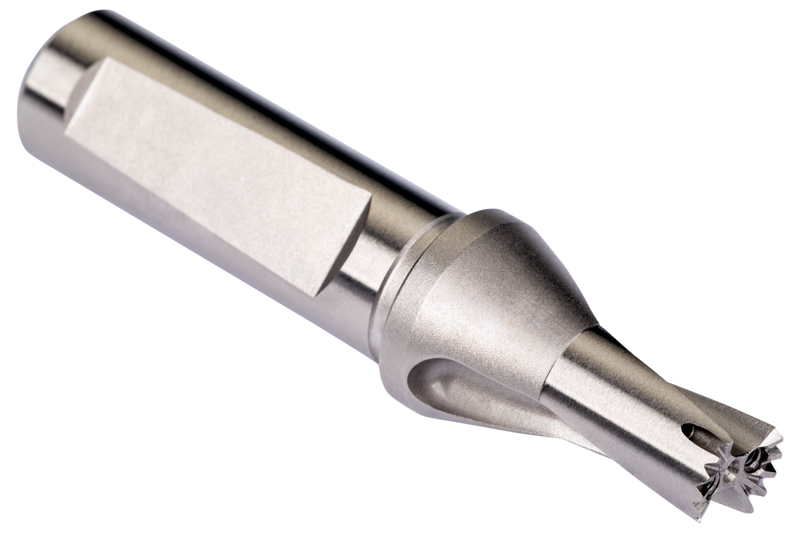

Corps de foret à têtes interchangeables DOR HYDRA avec queue ISO 9766 avec collerette et méplat, diamètre 25,0 mm avec une longueur totale de 124,7 mm et une longueur de goujure de 49,7 mm selon la norme DORMER pour un perçage 1.5xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) du diamètre 25 à 25,8 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85125.0
GradePlaqué nickel
Product Number7833358
Product FamilyH851

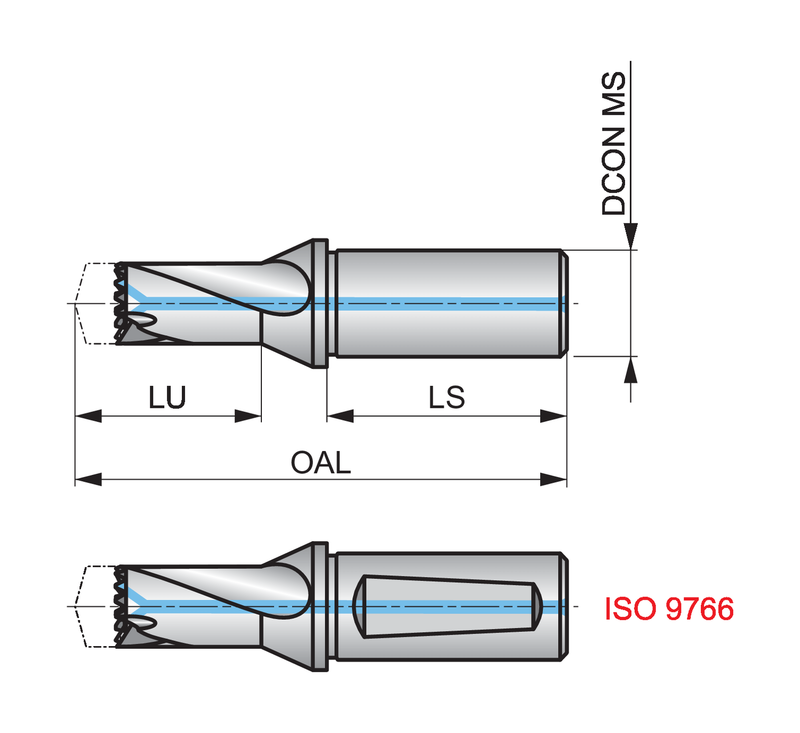

Dimensions
Overall Length — in (OAL)4.9094"
Overall Length — mm (OAL)124.7 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)1.9567"
Usable Length — mm (LU)49.7 mm
Connection Dia. — in (DCON)1.2598"
Connection Dia. — mm (DCON)32.0 mm
Tool Information
ShankQueue Hydra Cylindrique /ISO 9766
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number7833358
EAN7320760894880
File Type Download
H85125.0 — 3D Model STP Download
H85125.0 — 2D Model DXF Download
H85125.0 — Line Drawing PDF Download
