H85126.0
H85126.0
H85126.0
H85126.0

H85126.0

UGC DOR7833359
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$609.00 CAD - $609.00 CAD
$609.00 CAD
$609.00 CAD - $609.00 CAD
$609.00 CAD

Vendu en lots de : 1

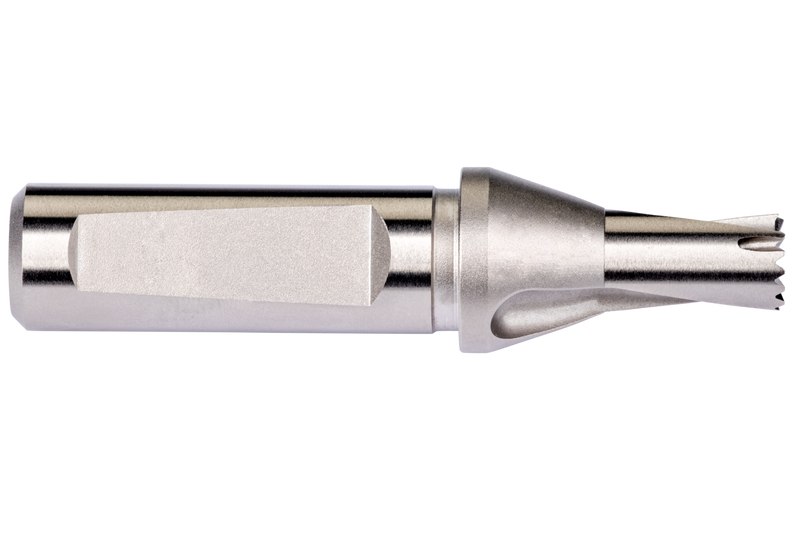

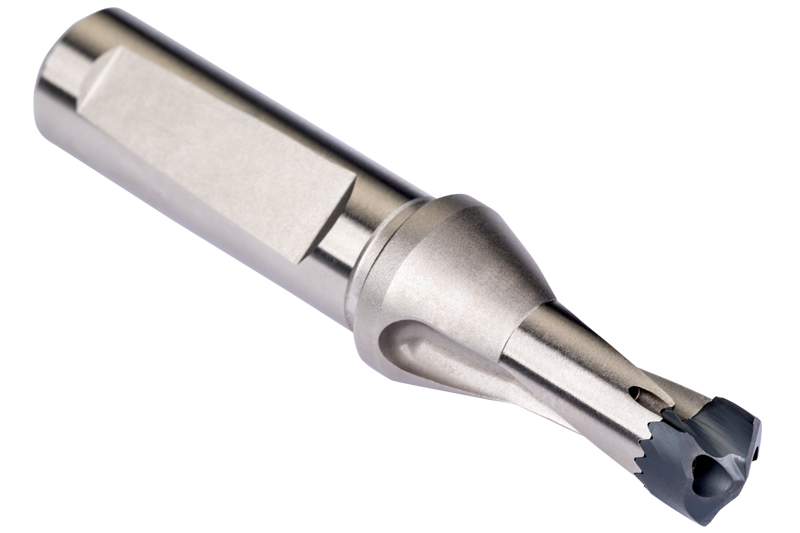

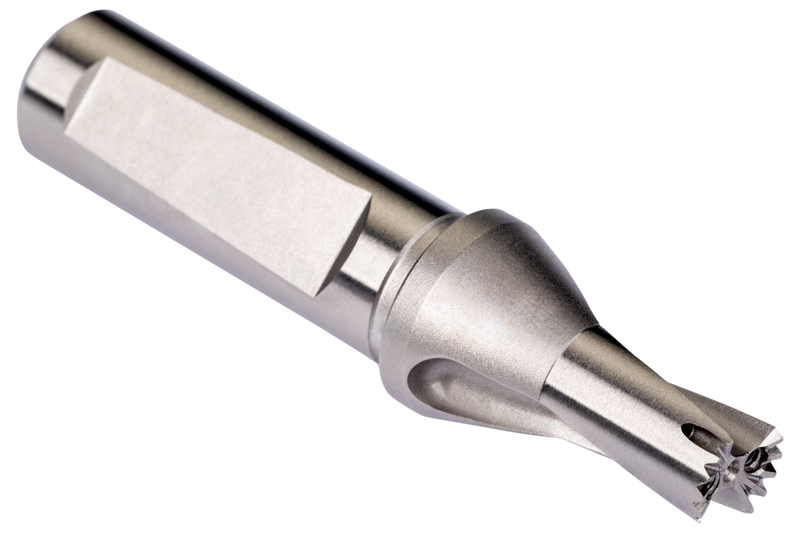

Corps de foret DOR à têtes interchangeables HYDRA avec queue ISO 9766 avec méplat et collerette, taille 26,0 mm avec une longueur totale de 127,3 mm et une longueur d'hélice de 52,3 mm selon la norme DORMER pour le perçage 1,5xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 26 à 26,59 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85126.0
GradePlaqué nickel
Product Number7833359
Product FamilyH851

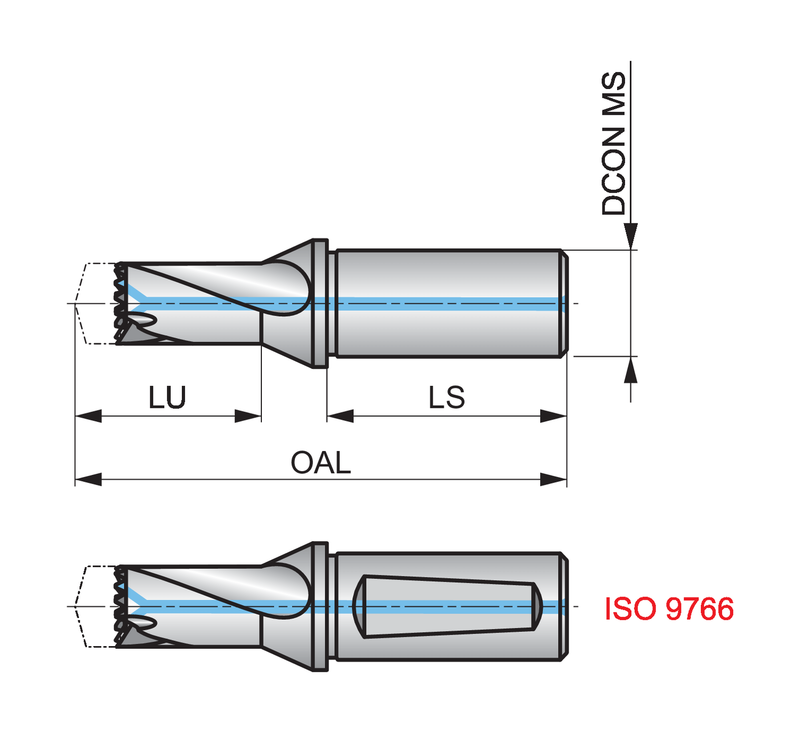

Dimensions
Overall Length — in (OAL)5.0118"
Overall Length — mm (OAL)127.3 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)2.0591"
Usable Length — mm (LU)52.3 mm
Connection Dia. — in (DCON)1.2598"
Connection Dia. — mm (DCON)32.0 mm
Tool Information
ShankQueue cylindrique Hydra /ISO 9766
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number7833359
EAN7320760894897
File Type Download
H85126.0 — 3D Model STP Download
H85126.0 — 2D Model DXF Download
H85126.0 — Line Drawing PDF Download
