H85127.0
H85127.0
H85127.0
H85127.0

H85127.0

UGC DOR7833360
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$622.00 CAD - $622.00 CAD
$622.00 CAD
$622.00 CAD - $622.00 CAD
$622.00 CAD

Vendu en lots de : 1

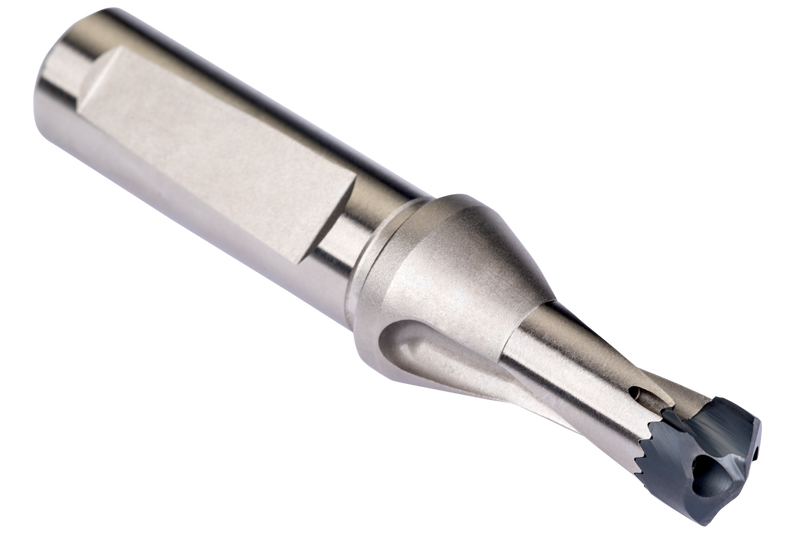

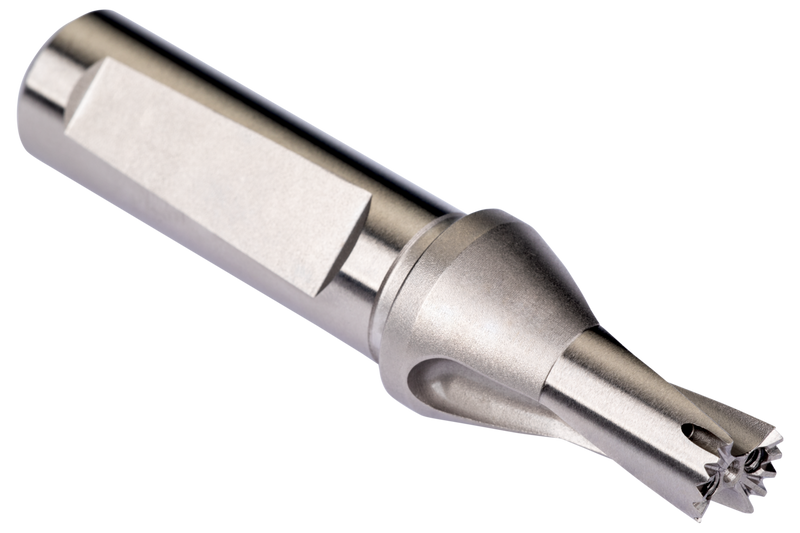

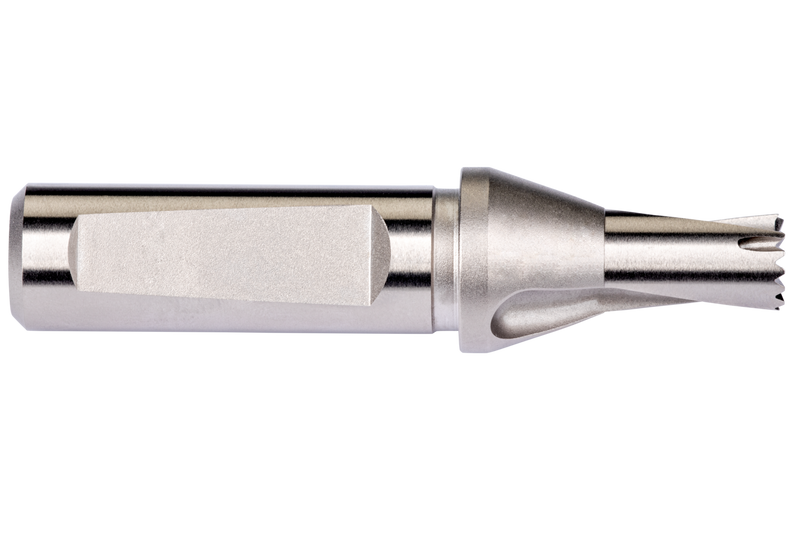

Corps de foret à tête interchangeable DOR HYDRA avec queue ISO 9766 avec collerette et plat, taille 27,0mm avec une longueur totale de 127,8mm et une longueur de coupe de 52,8mm selon la norme DORMER pour le perçage 1,5xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 26,99 à 27,78mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85127.0
GradePlaqué nickel
Product Number7833360
Product FamilyH851

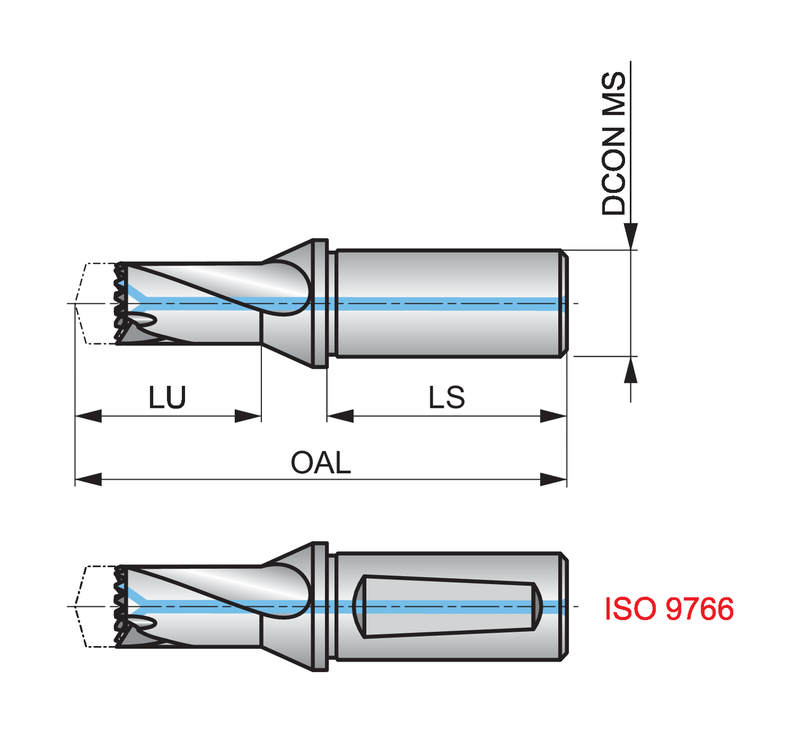

Dimensions
Overall Length — in (OAL)5.0315"
Overall Length — mm (OAL)127.8 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)2.0787"
Usable Length — mm (LU)52.8 mm
Connection Dia. — in (DCON)1.2598"
Connection Dia. — mm (DCON)32.0 mm
Tool Information
ShankQueue cylindrique Hydra /ISO 9766
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number7833360
EAN7320760894903
File Type Download
H85127.0 — 3D Model STP Download
H85127.0 — 2D Model DXF Download
H85127.0 — Line Drawing PDF Download
