UGC DOR7833361
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$648.00 CAD - $648.00 CAD
$648.00 CAD
$648.00 CAD - $648.00 CAD
$648.00 CAD

Vendu en lots de : 1

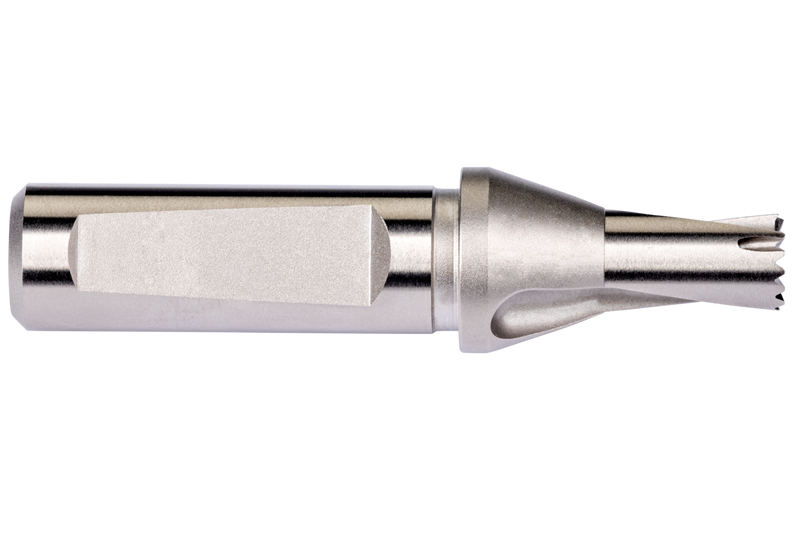

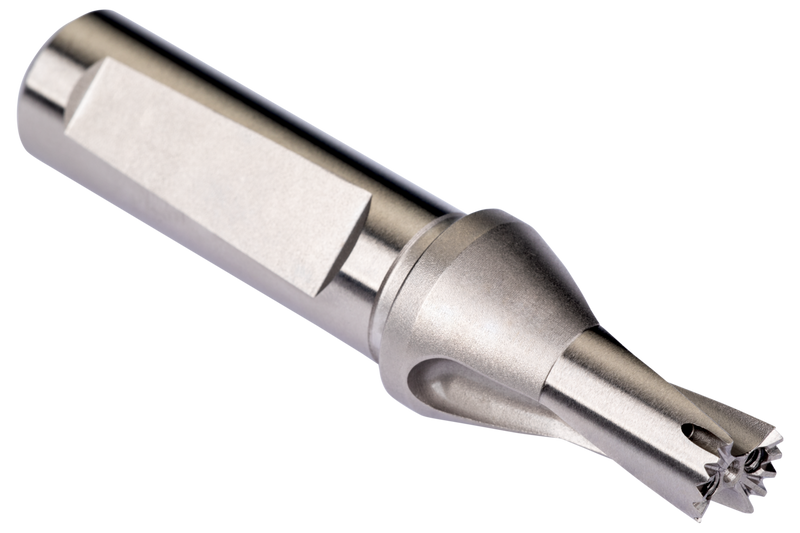

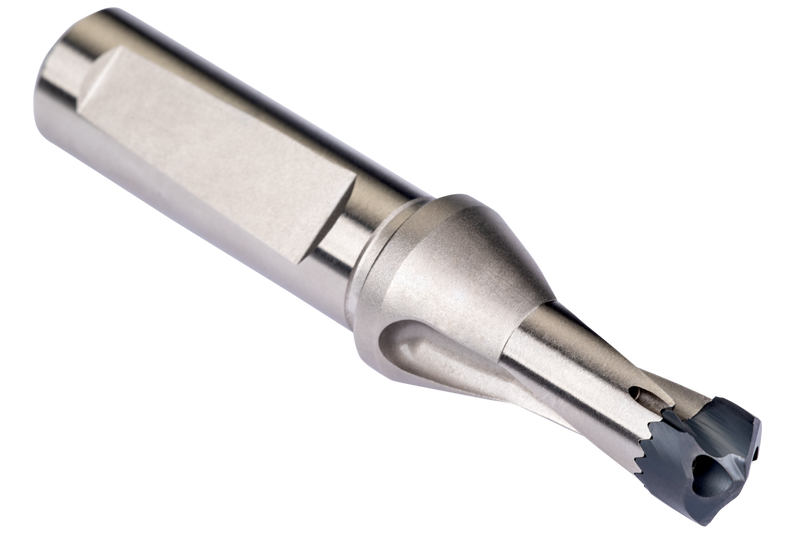

Corps de foret à têtes interchangeables DOR HYDRA avec queue ISO 9766 avec méplat et collerette, dimension 28,0 mm, longueur totale de 129,4 mm et longueur utile de 54,4 mm, conforme à la norme DORMER pour le perçage 1.5xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 28 à 28,58 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85128.0
GradePlaqué nickel
Product Number7833361
Product FamilyH851
Dimensions
Overall Length — in (OAL)5.0945"
Overall Length — mm (OAL)129.4 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)2.1417"
Usable Length — mm (LU)54.4 mm
Connection Dia. — in (DCON)1.2598"
Connection Dia. — mm (DCON)32.0 mm
Tool Information
ShankQueue cylindrique Hydra/ISO 9766
Direction of ToolGauche
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number7833361
EAN7320760894910
File Type Download
H85128.0 — 3D Model STP Download
H85128.0 — 2D Model DXF Download
H85128.0 — Line Drawing PDF Download
