UGC DOR7833363
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$664.00 CAD - $664.00 CAD
$664.00 CAD
$664.00 CAD - $664.00 CAD
$664.00 CAD

Vendu en lots de : 1

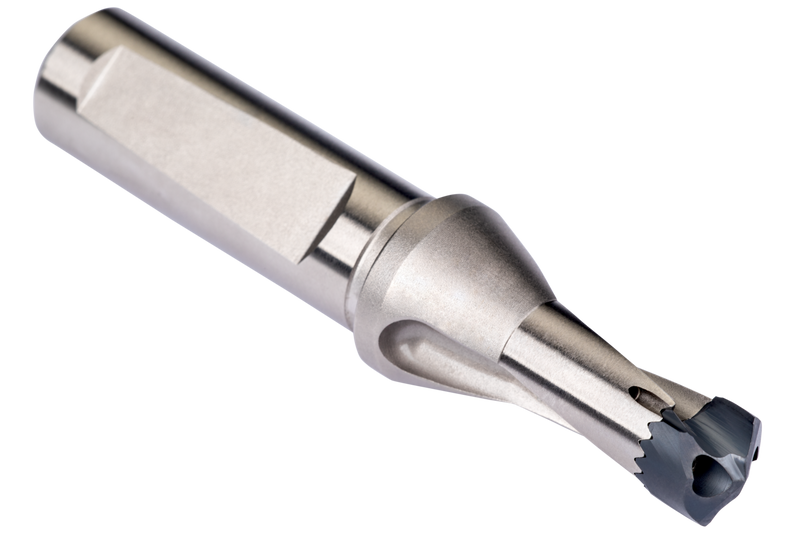

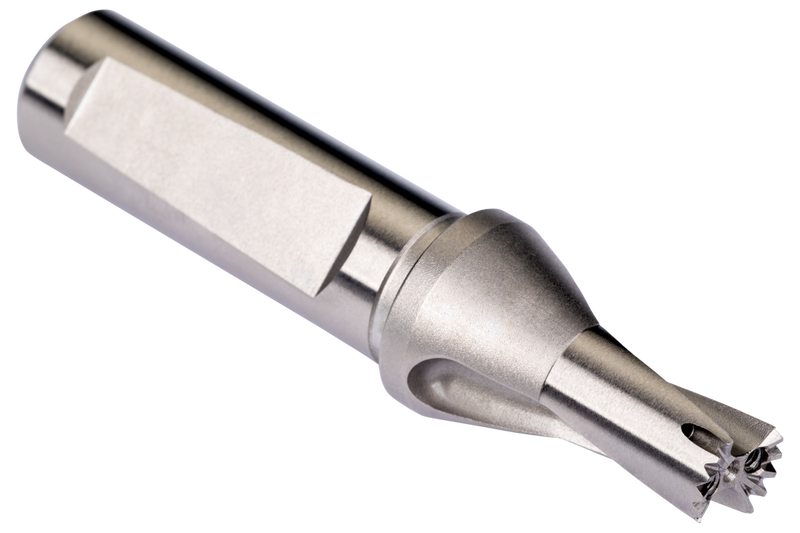

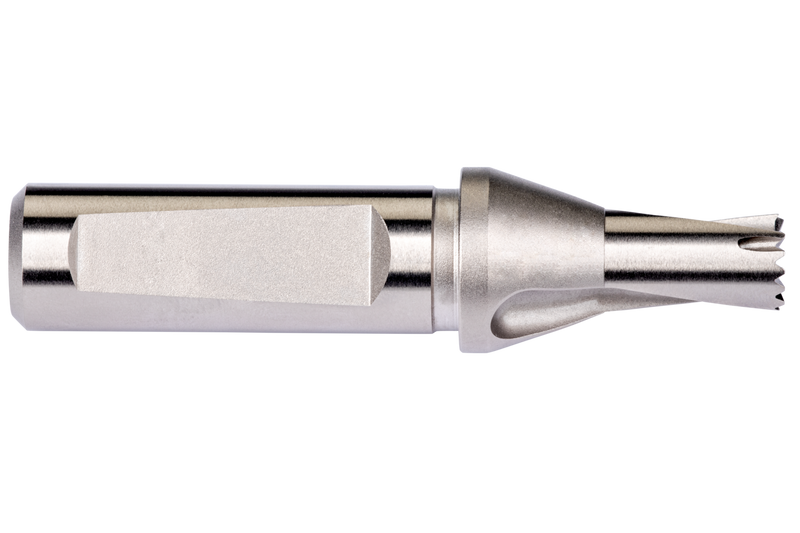

Corps de foret à tête interchangeable DORMER HYDRA avec queue ISO 9766 avec collerette et plat, taille 30,0 mm, longueur totale 133,4 mm et longueur de goujure 58,4 mm selon la norme DORMER pour le perçage 1,5xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 30 à 30,5 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H85130.0
GradePlaqué nickel
Product Number7833363
Product FamilyH851

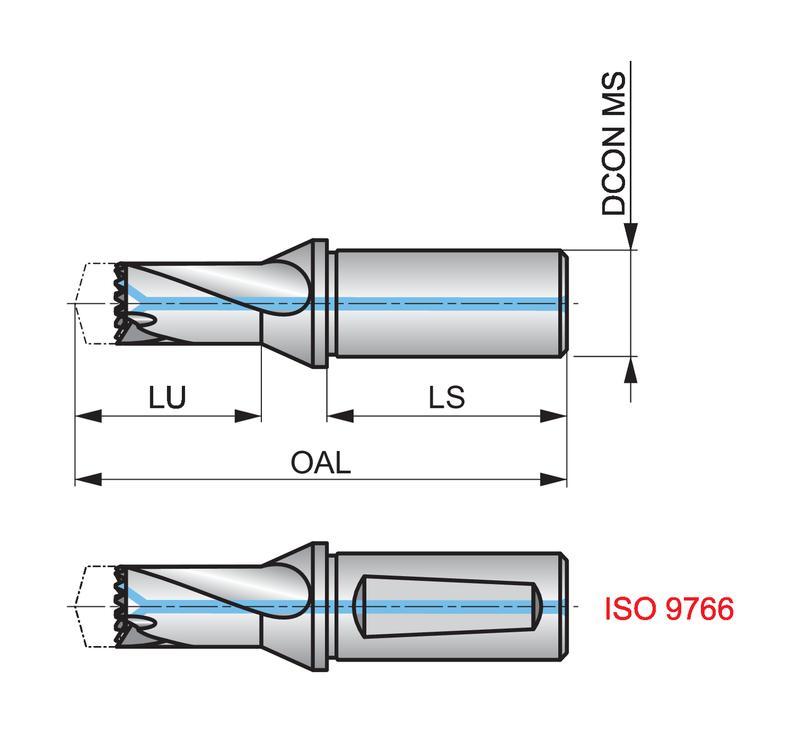

Dimensions
Overall Length — in (OAL)5.252"
Overall Length — mm (OAL)133.4 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)2.2992"
Usable Length — mm (LU)58.4 mm
Connection Dia. — in (DCON)1.2598"
Connection Dia. — mm (DCON)32.0 mm
Tool Information
ShankQueue cylindrique Hydra /ISO 9766
Direction of ToolGauche
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number7833363
EAN7320760894934
File Type Download
H85130.0 — 3D Model STP Download
H85130.0 — 2D Model DXF Download
H85130.0 — Line Drawing PDF Download
