UGC DOR7833365
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,765.00 CAD - $1,765.00 CAD
$1,765.00 CAD
$1,765.00 CAD - $1,765.00 CAD
$1,765.00 CAD

Vendu en lots de : 1

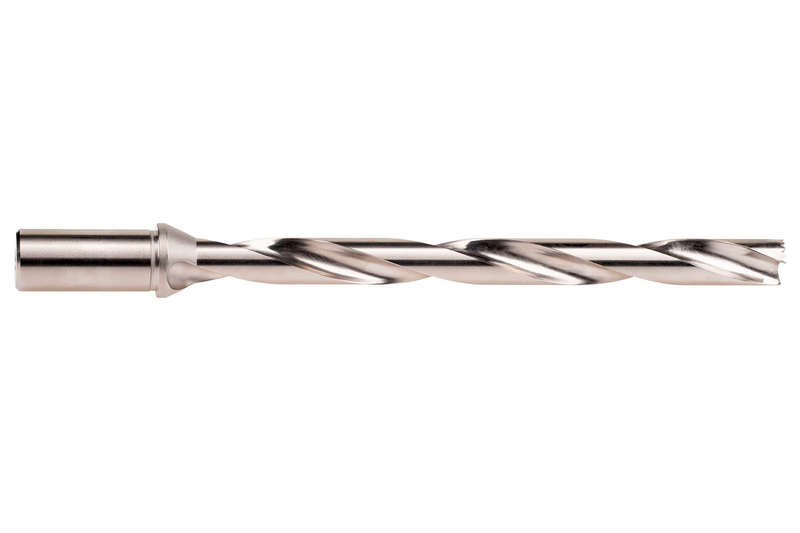

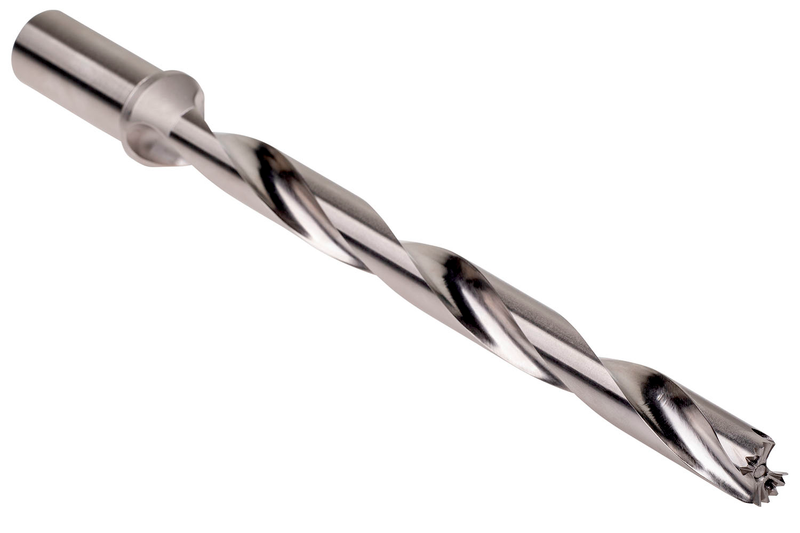

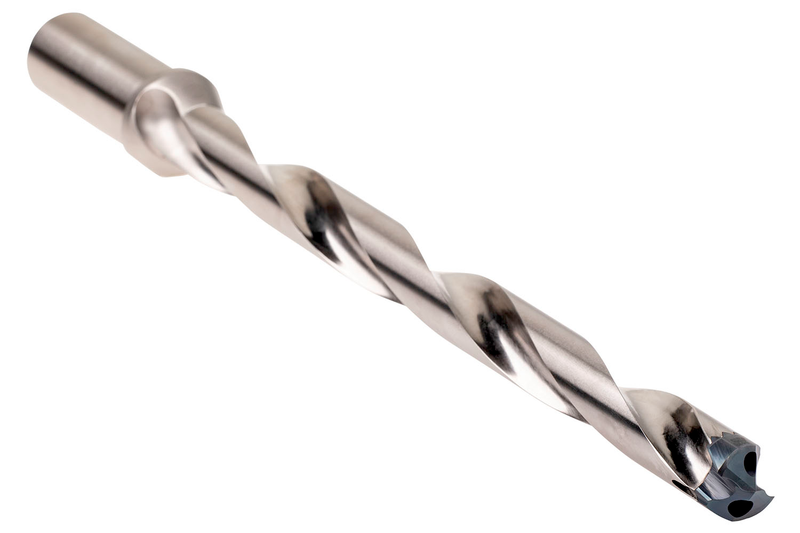

Corps de foret DOR à tête interchangeable HYDRA avec queue cylindrique à collerette, taille 15,0mm avec une longueur totale de 250,3mm et une longueur de goujure de 180mm selon la norme DORMER pour le perçage en 12xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 14,6 à 15,5mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H851215.0
GradePlaqué nickel
Product Number7833365
Product FamilyH8512

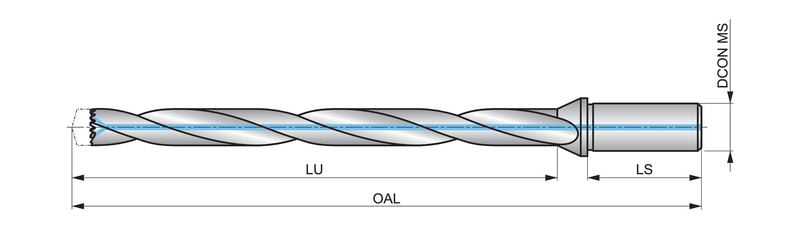

Dimensions
Overall Length — in (OAL)9.8543"
Overall Length — mm (OAL)250.3 mm
Length × Diameter Ratio12
Usable Length — in (LU)7.0866"
Usable Length — mm (LU)180.0 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Tool Information
ShankQueue Hydra - Cylindrique
Direction of ToolGauche
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number7833365
EAN7320760894958
File Type Download
H851215.0 — 3D Model STP Download
H851215.0 — 2D Model DXF Download
H851215.0 — Line Drawing PDF Download
