UGC DOR7833366
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,814.00 CAD - $1,814.00 CAD
$1,814.00 CAD
$1,814.00 CAD - $1,814.00 CAD
$1,814.00 CAD

Vendu en lots de : 1

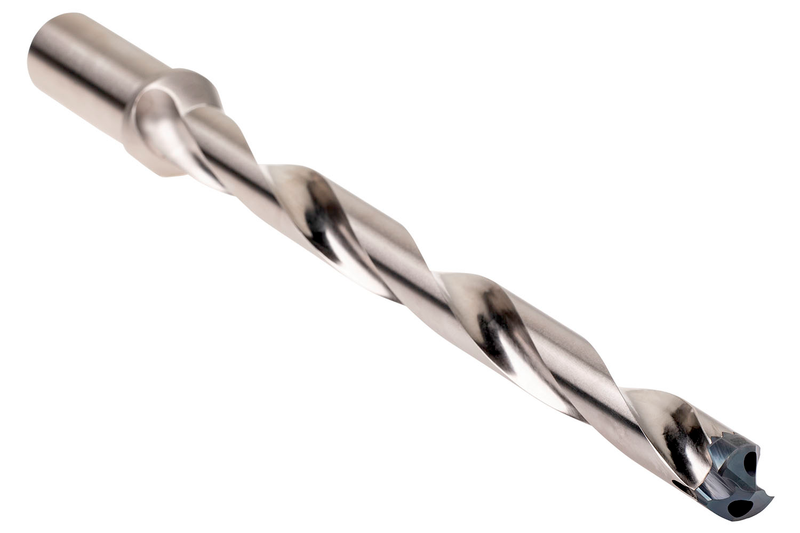

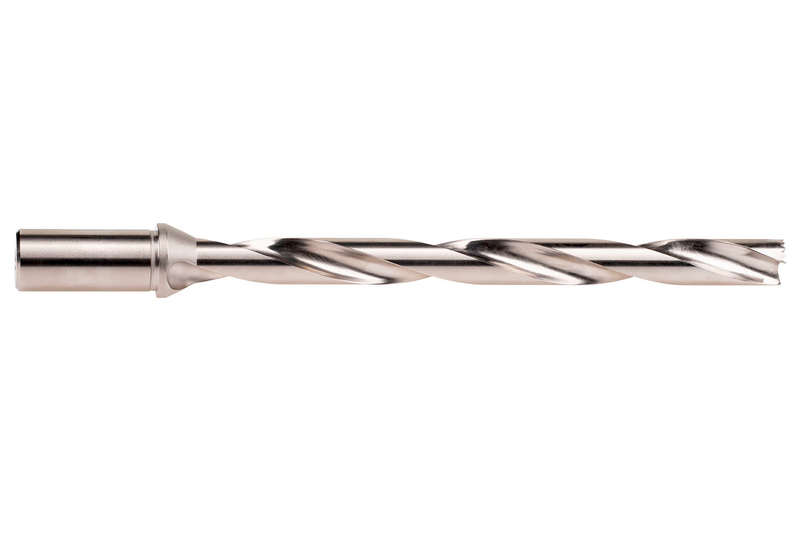

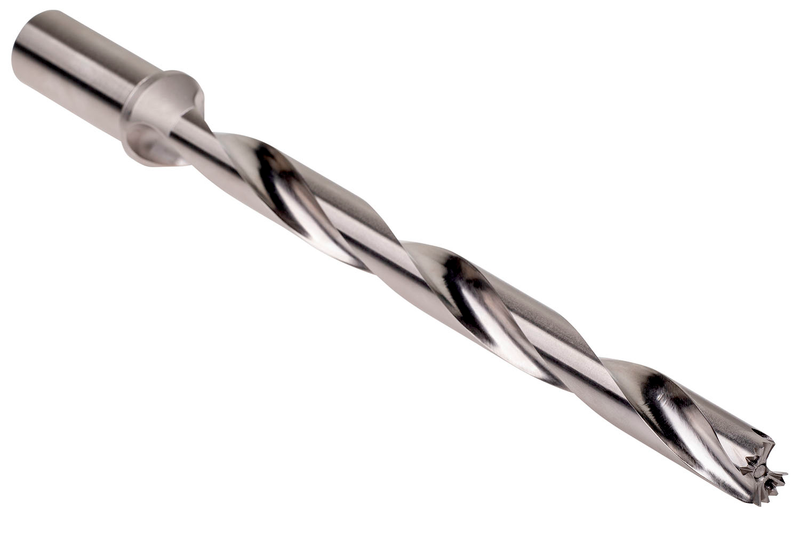

Corps de foret à tête interchangeable HYDRA DOR avec queue cylindrique avec collet, taille 16,0mm avec une longueur totale de 262,6mm et une longueur utile de 192mm selon la norme DORMER pour le perçage 12xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 15,6 à 16,5mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H851216.0
GradePlaqué nickel
Product Number7833366
Product FamilyH8512

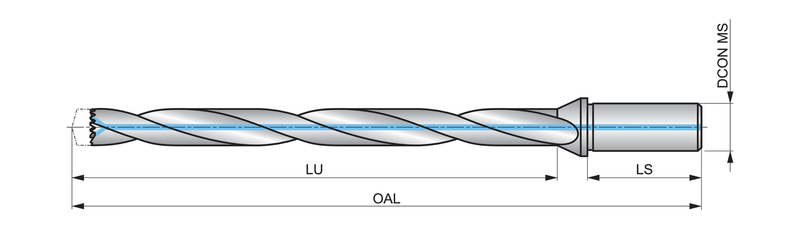

Dimensions
Overall Length — in (OAL)10.3386"
Overall Length — mm (OAL)262.6 mm
Length × Diameter Ratio12
Usable Length — in (LU)7.5591"
Usable Length — mm (LU)192.0 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Tool Information
ShankQueue Hydra - Cylindrique
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number7833366
EAN7320760894965
File Type Download
H851216.0 — 3D Model STP Download
H851216.0 — 2D Model DXF Download
H851216.0 — Line Drawing PDF Download
