UGC DOR7833367
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,850.00 CAD - $1,850.00 CAD
$1,850.00 CAD
$1,850.00 CAD - $1,850.00 CAD
$1,850.00 CAD

Vendu en lots de : 1

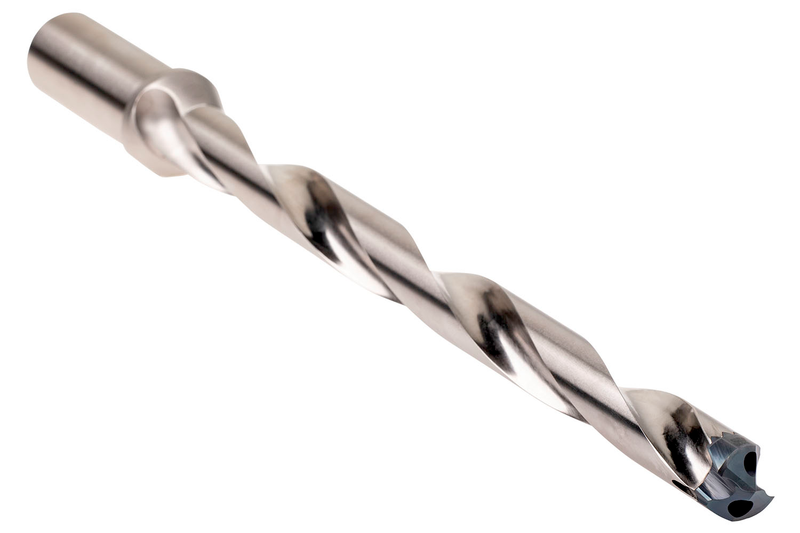

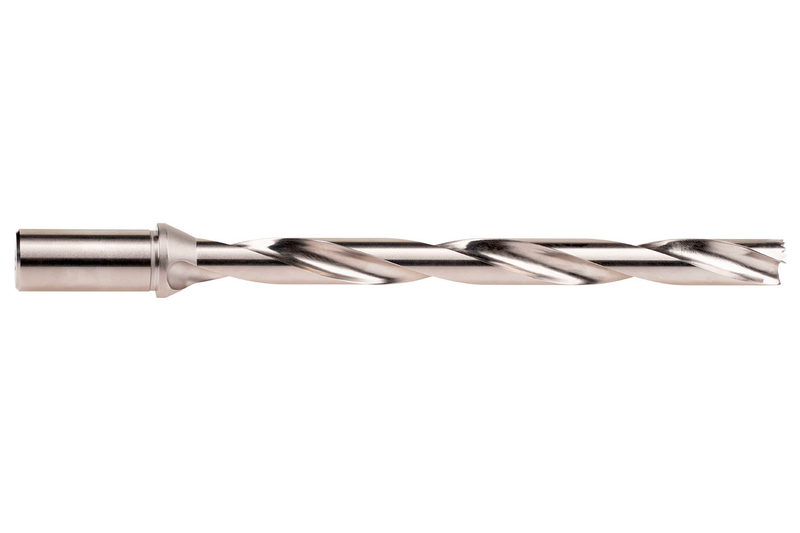

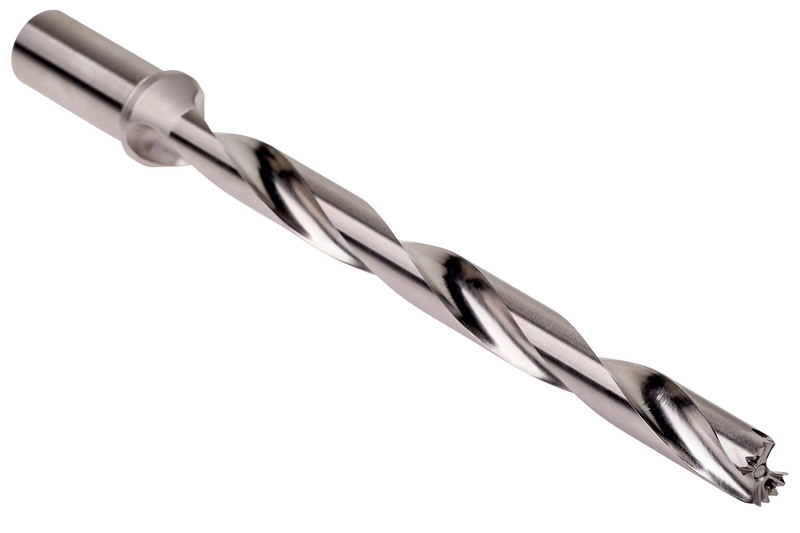

Corps de foret à têtes interchangeables DOR HYDRA avec queue cylindrique avec méplat, taille 17.0mm avec une longueur totale de 275mm et une longueur de coupe de 204mm selon la norme DORMER pour un perçage 12xD avec des têtes HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) de diamètre 16.6 à 17.5mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H851217.0
GradePlaqué nickel
Product Number7833367
Product FamilyH8512

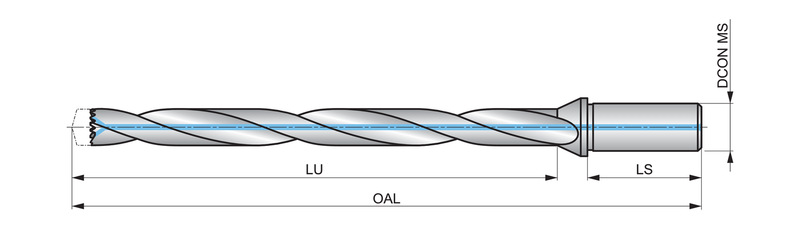

Dimensions
Overall Length — in (OAL)10.8268"
Overall Length — mm (OAL)275.0 mm
Length × Diameter Ratio12
Usable Length — in (LU)8.0315"
Usable Length — mm (LU)204.0 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Tool Information
ShankQueue Hydra - Cylindrique
Direction of ToolGauche
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number7833367
EAN7320760894972
File Type Download
H851217.0 — 3D Model STP Download
H851217.0 — 2D Model DXF Download
H851217.0 — Line Drawing PDF Download
