H851218.0
H851218.0
H851218.0
H851218.0

H851218.0

UGC DOR7833368
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,896.00 CAD - $1,896.00 CAD
$1,896.00 CAD
$1,896.00 CAD - $1,896.00 CAD
$1,896.00 CAD

Vendu en lots de : 1

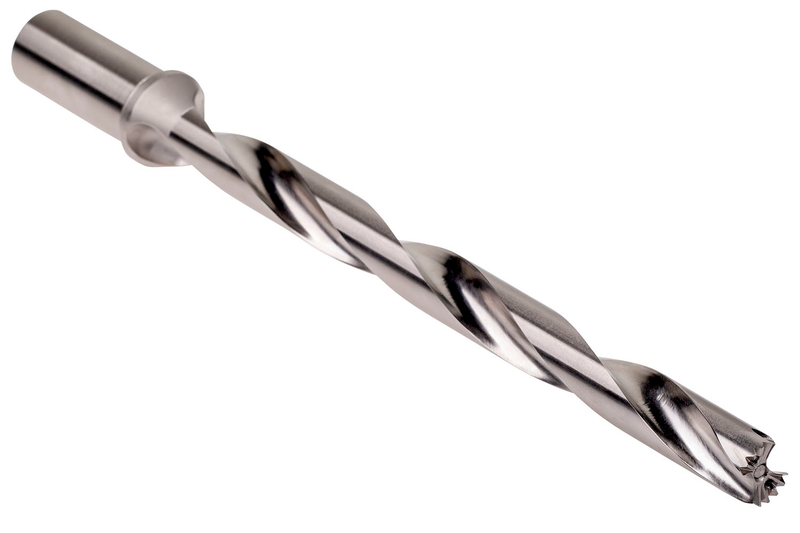

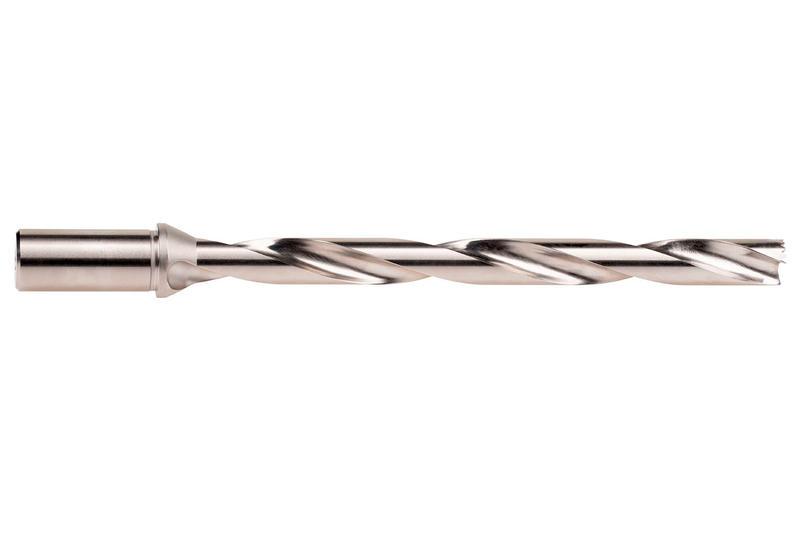

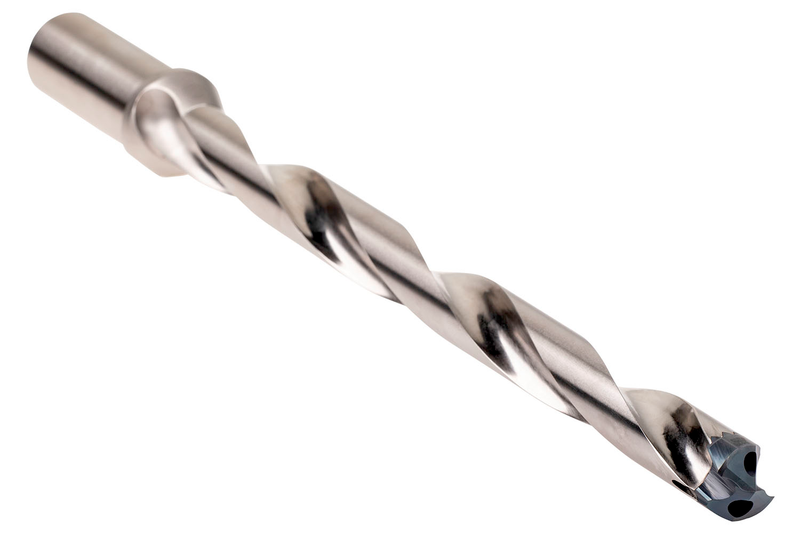

Corps de foret à tête interchangeable DOR HYDRA à queue cylindrique avec méplat, taille 18,0 mm, d'une longueur totale de 287,2 mm et d'une longueur de goujure de 216 mm selon la norme DORMER pour un perçage 12xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 17,6 à 18,5 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H851218.0
GradePlaqué nickel
Product Number7833368
Product FamilyH8512

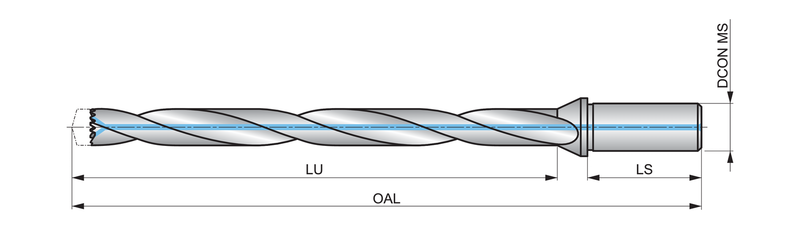

Dimensions
Overall Length — in (OAL)11.3071"
Overall Length — mm (OAL)287.2 mm
Length × Diameter Ratio12
Usable Length — in (LU)8.5039"
Usable Length — mm (LU)216.0 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Tool Information
ShankQueue Hydra - Cylindrique
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number7833368
EAN7320760894989
File Type Download
H851218.0 — 3D Model STP Download
H851218.0 — 2D Model DXF Download
H851218.0 — Line Drawing PDF Download
