UGC DOR7833369
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,937.00 CAD - $1,937.00 CAD
$1,937.00 CAD
$1,937.00 CAD - $1,937.00 CAD
$1,937.00 CAD

Vendu en lots de : 1

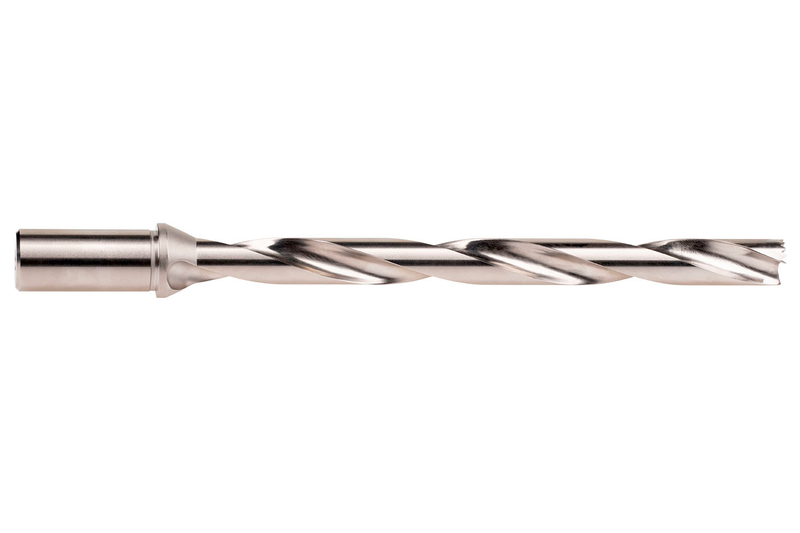

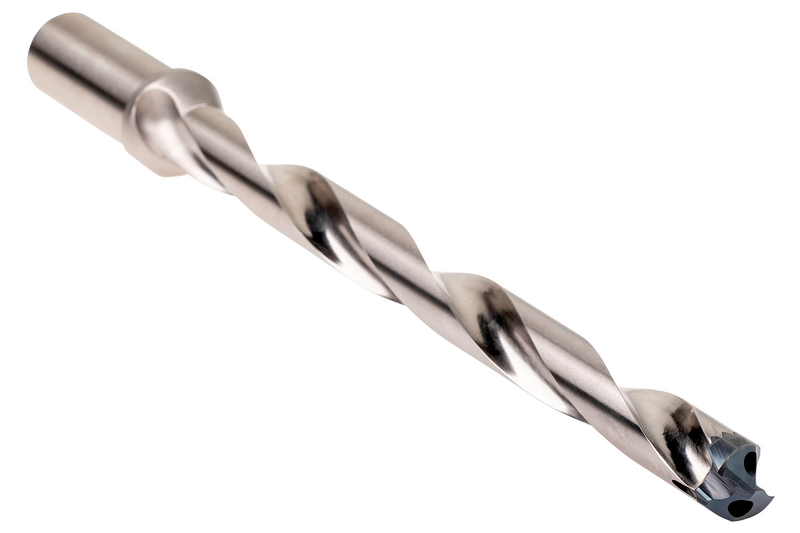

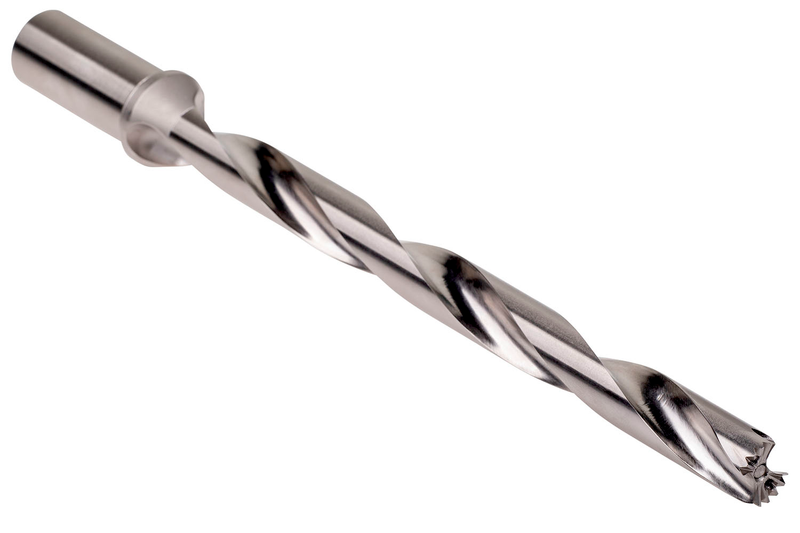

Corps de foret à tête interchangeable DORMER HYDRA avec queue cylindrique avec collet, diamètre 19,0mm avec une longueur totale de 305,6mm et une longueur de goujure de 228mm selon la norme DORMER pour un perçage 12xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 18,6 à 19,5mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H851219.0
GradePlaqué nickel
Product Number7833369
Product FamilyH8512

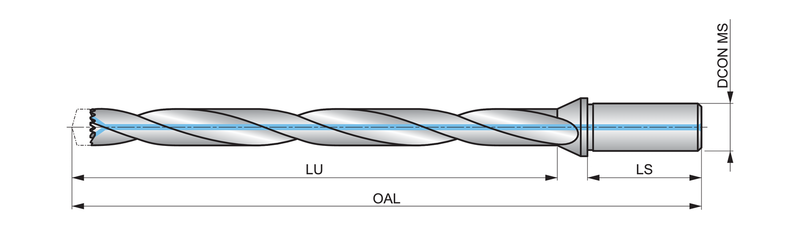

Dimensions
Overall Length — in (OAL)12.0315"
Overall Length — mm (OAL)305.6 mm
Length × Diameter Ratio12
Usable Length — in (LU)8.9764"
Usable Length — mm (LU)228.0 mm
Connection Dia. — in (DCON)0.9843"
Connection Dia. — mm (DCON)25.0 mm
Tool Information
ShankQueue Hydra - Cylindrique
Direction of ToolGauche
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number7833369
EAN7320760894996
File Type Download
H851219.0 — 3D Model STP Download
H851219.0 — 2D Model DXF Download
H851219.0 — Line Drawing PDF Download
