UGC DOR7833370
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,987.00 CAD - $1,987.00 CAD
$1,987.00 CAD
$1,987.00 CAD - $1,987.00 CAD
$1,987.00 CAD

Vendu en lots de : 1

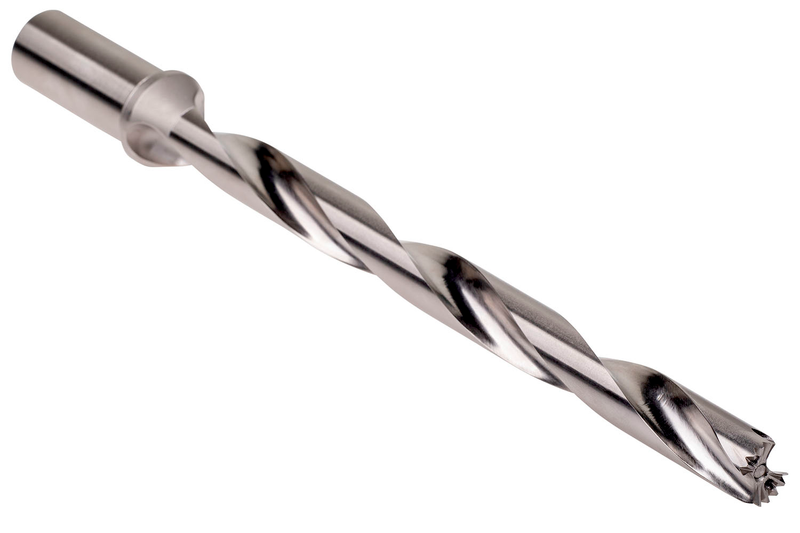

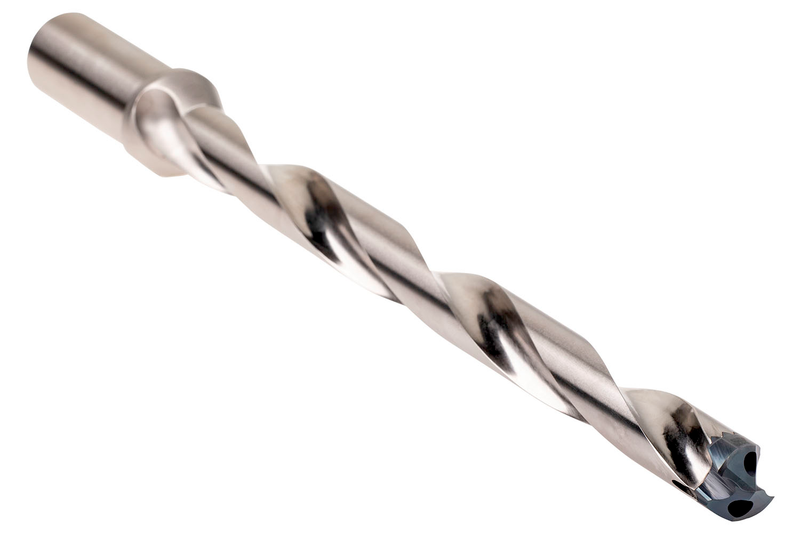

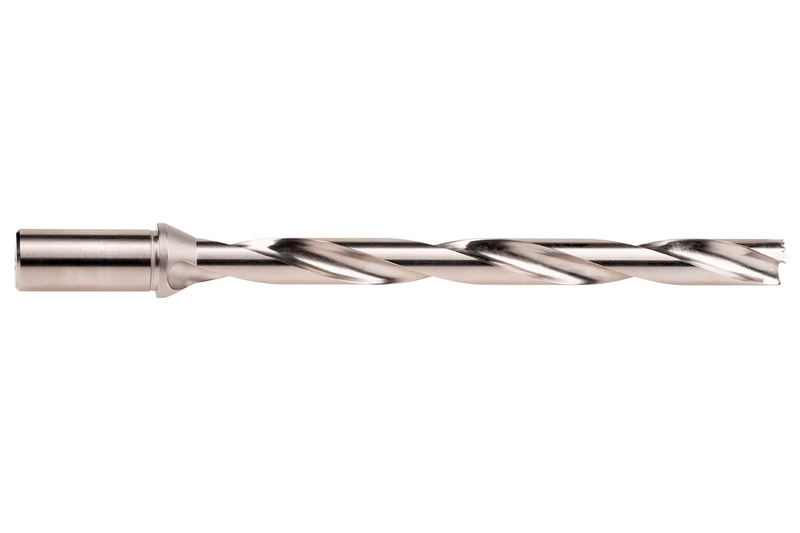

Corps de foret DOR à tête interchangeable HYDRA avec queue cylindrique avec méplat de serrage, taille 20,0 mm avec une longueur totale de 317,8 mm et une longueur de goujure de 240 mm selon la norme DORMER pour le perçage 12xD avec des têtes HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) de diamètre 19,6 à 20,5 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H851220.0
GradePlaqué nickel
Product Number7833370
Product FamilyH8512

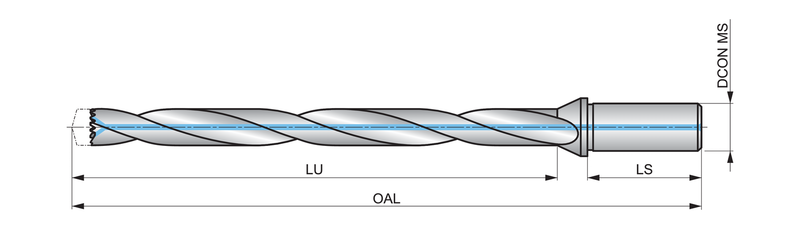

Dimensions
Overall Length — in (OAL)12.5118"
Overall Length — mm (OAL)317.8 mm
Length × Diameter Ratio12
Usable Length — in (LU)9.4488"
Usable Length — mm (LU)240.0 mm
Connection Dia. — in (DCON)0.9843"
Connection Dia. — mm (DCON)25.0 mm
Tool Information
ShankQueue Hydra - Cylindrique
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number7833370
EAN7320760895009
File Type Download
H851220.0 — 3D Model STP Download
H851220.0 — 2D Model DXF Download
H851220.0 — Line Drawing PDF Download
