H851221.0
H851221.0
H851221.0
H851221.0

H851221.0

UGC DOR7833371
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2,030.00 CAD - $2,030.00 CAD
$2,030.00 CAD
$2,030.00 CAD - $2,030.00 CAD
$2,030.00 CAD

Vendu en lots de : 1

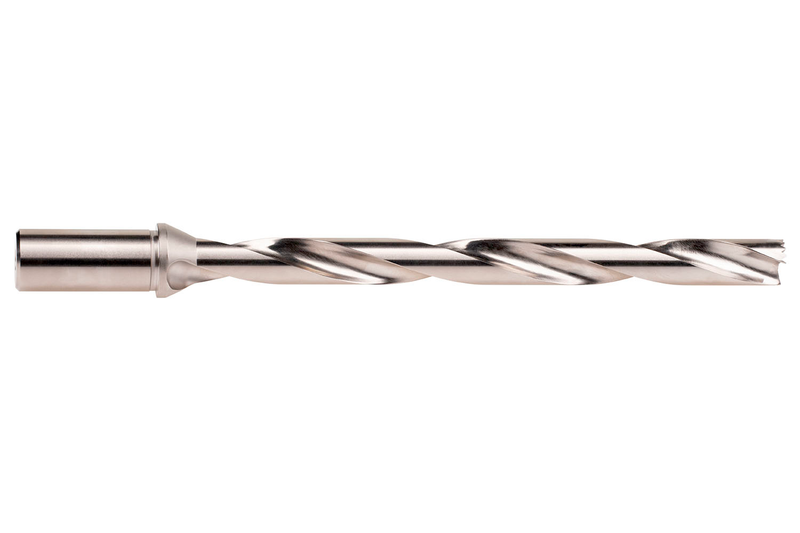

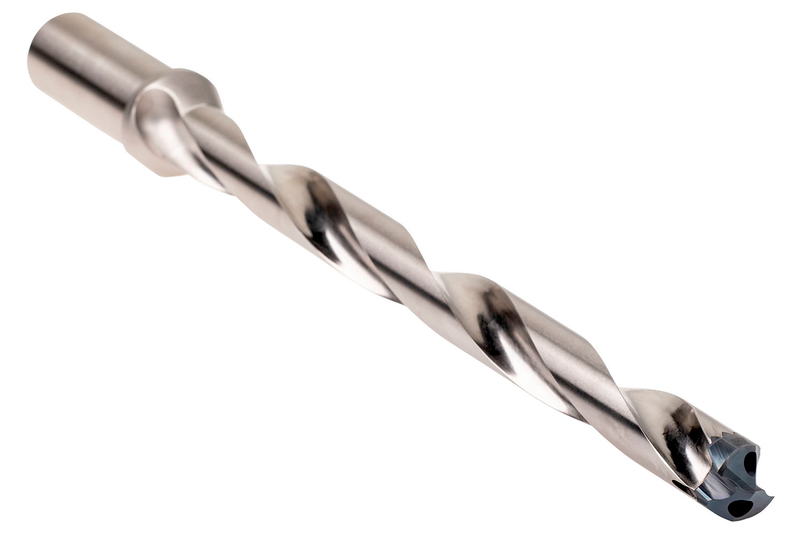

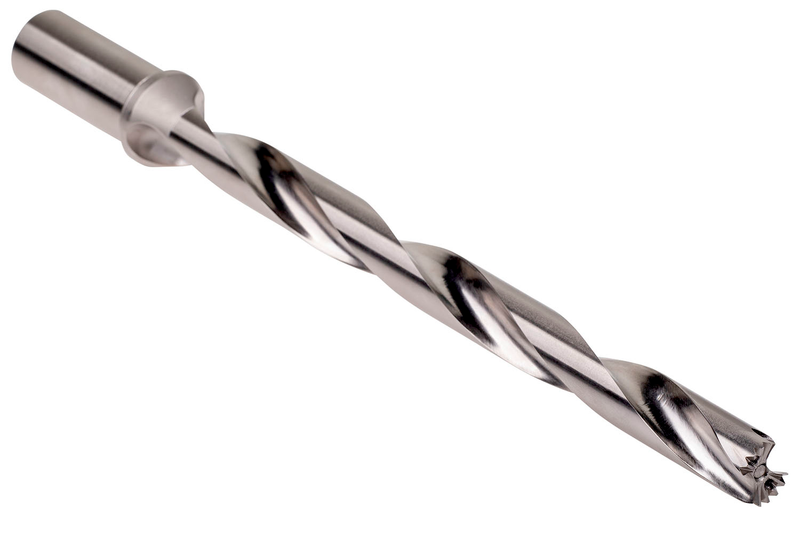

Corps de foret à têtes interchangeables DOR HYDRA avec queue cylindrique à collerette, taille 21,0 mm avec une longueur totale de 330,1 mm et une longueur de goujure de 252 mm selon la norme DORMER pour le perçage en 12xD avec des têtes HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) d'un diamètre de 20,64 à 21,5 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H851221.0
GradePlaqué nickel
Product Number7833371
Product FamilyH8512

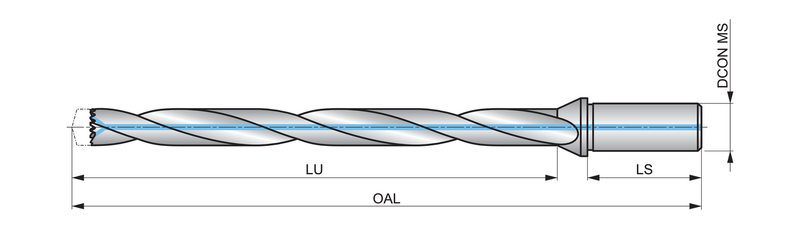

Dimensions
Overall Length — in (OAL)12.9961"
Overall Length — mm (OAL)330.1 mm
Length × Diameter Ratio12
Usable Length — in (LU)9.9213"
Usable Length — mm (LU)252.0 mm
Connection Dia. — in (DCON)0.9843"
Connection Dia. — mm (DCON)25.0 mm
Tool Information
ShankTige Hydra - Cylindrique
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number7833371
EAN7320760895016
File Type Download
H851221.0 — 3D Model STP Download
H851221.0 — 2D Model DXF Download
H851221.0 — Line Drawing PDF Download
