H851222.0
H851222.0
H851222.0
H851222.0

H851222.0

UGC DOR7833372
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2,064.00 CAD - $2,064.00 CAD
$2,064.00 CAD
$2,064.00 CAD - $2,064.00 CAD
$2,064.00 CAD

Vendu en lots de : 1

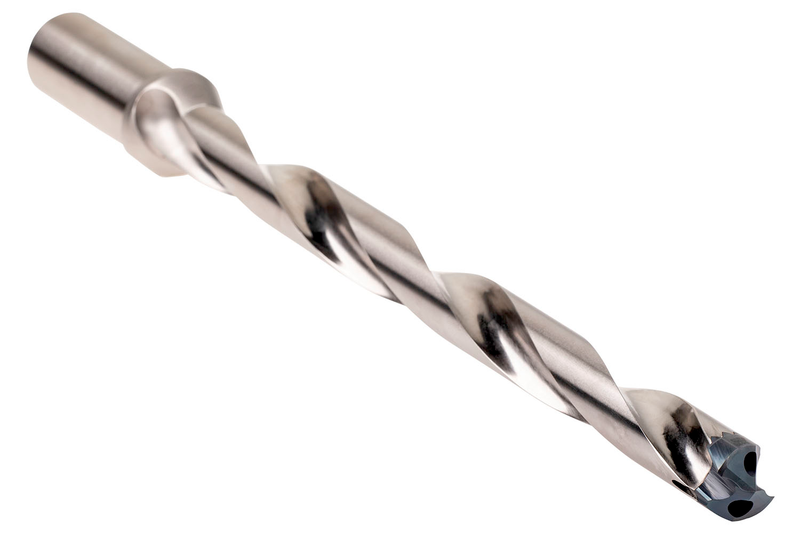

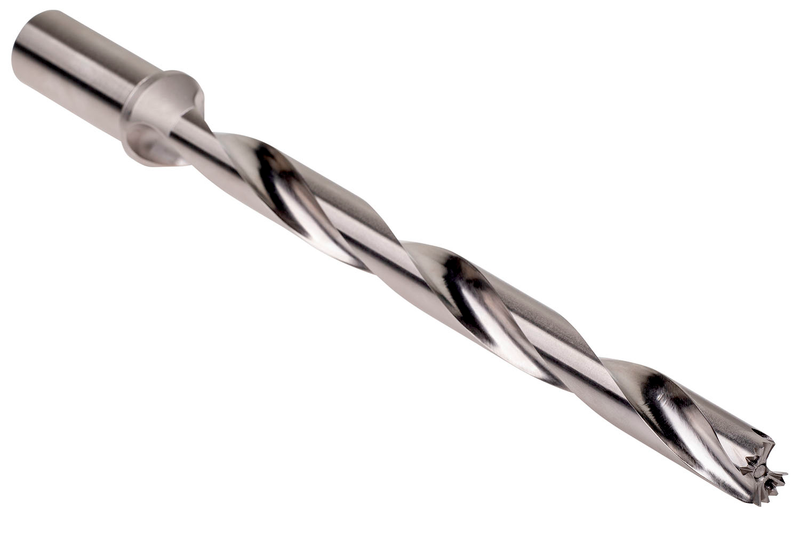

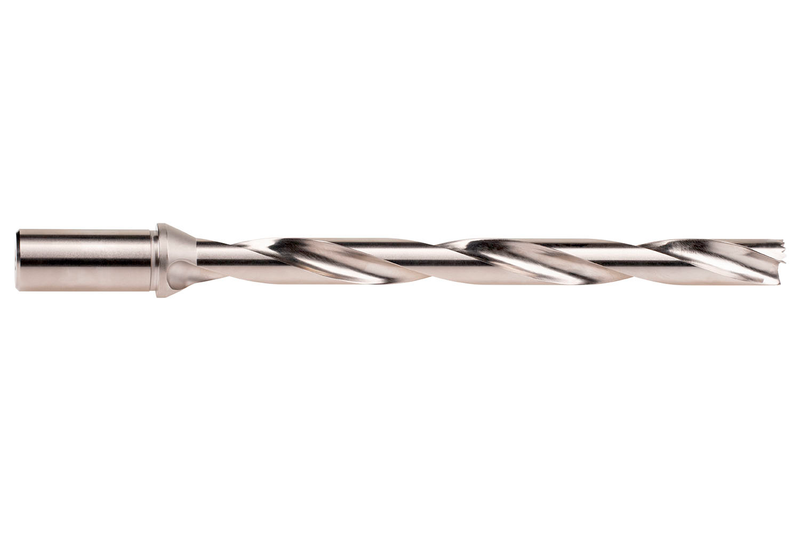

Corps de foret à tête interchangeable DORMER HYDRA à queue cylindrique avec méplat, taille 22,0mm avec une longueur totale de 343mm et une longueur de goujure de 264mm selon la norme DORMER pour un perçage 12xD avec des têtes HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) de diamètre 21,83 jusqu'à 22,7mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H851222.0
GradePlaqué nickel
Product Number7833372
Product FamilyH8512

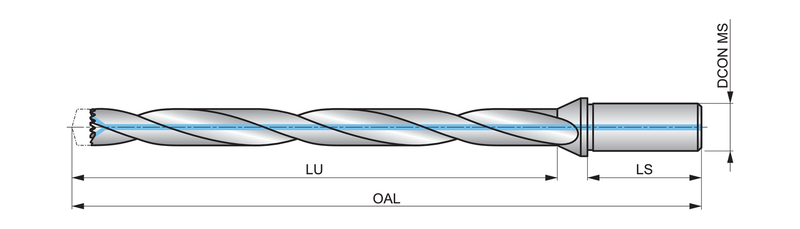

Dimensions
Overall Length — in (OAL)13.5039"
Overall Length — mm (OAL)343.0 mm
Length × Diameter Ratio12
Usable Length — in (LU)10.3937"
Usable Length — mm (LU)264.0 mm
Connection Dia. — in (DCON)0.9843"
Connection Dia. — mm (DCON)25.0 mm
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number7833372
EAN7320760895023
File Type Download
H851222.0 — 3D Model STP Download
H851222.0 — 2D Model DXF Download
H851222.0 — Line Drawing PDF Download
