UGC DOR7833373
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2,108.00 CAD - $2,108.00 CAD
$2,108.00 CAD
$2,108.00 CAD - $2,108.00 CAD
$2,108.00 CAD

Vendu en lots de : 1

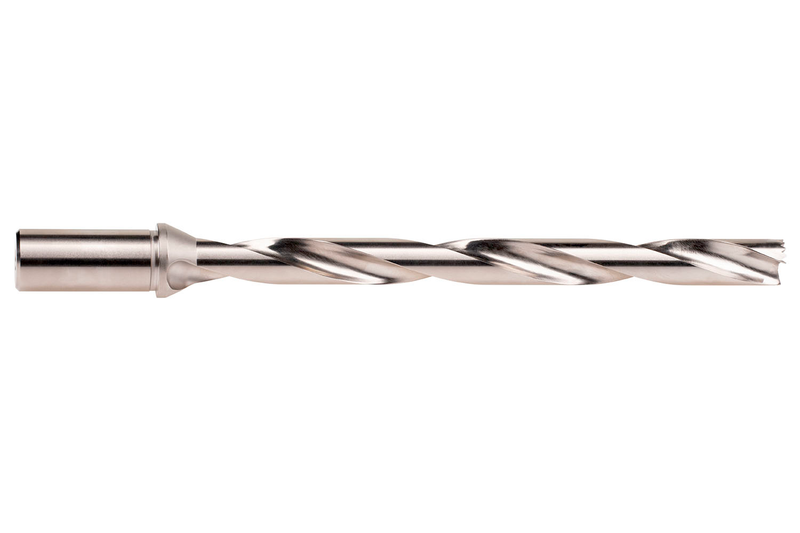

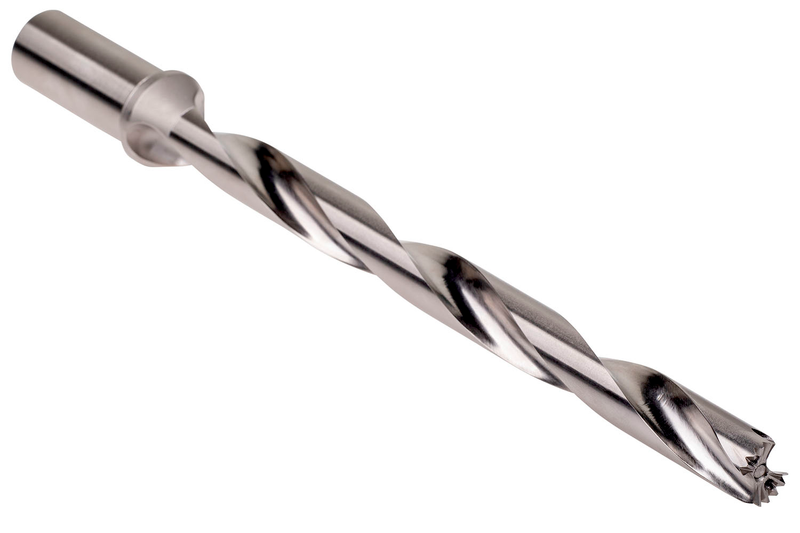

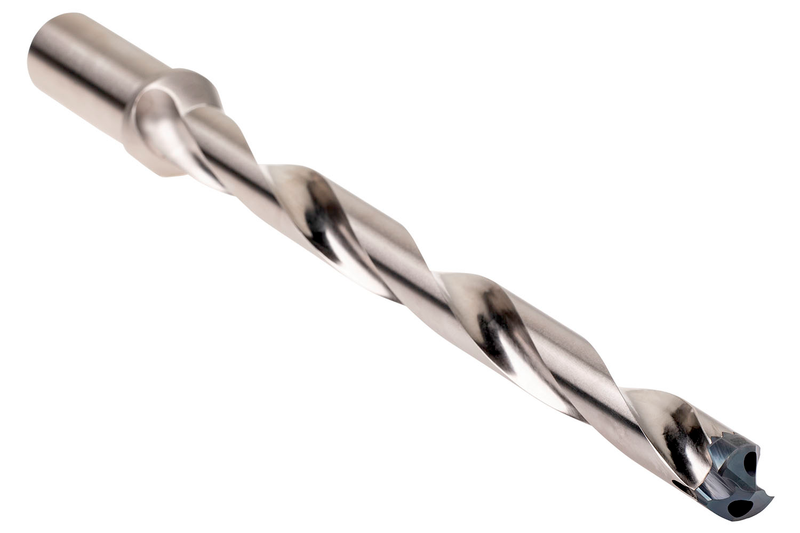

Corps de foret DOR HYDRA à têtes amovibles avec queue cylindrique avec collerette, dimension 23,0 mm avec une longueur totale de 354,8 mm et une longueur de goujure de 276 mm selon la norme DORMER pour un perçage 12xD avec les têtes HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) de diamètre 23 jusqu'à 23,5 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H851223.0
GradePlaqué nickel
Product Number7833373
Product FamilyH8512

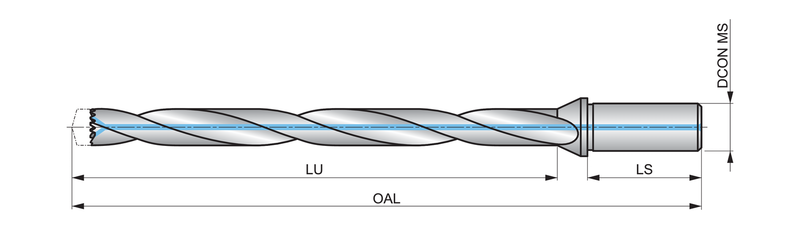

Dimensions
Overall Length — in (OAL)13.9685"
Overall Length — mm (OAL)354.8 mm
Length × Diameter Ratio12
Usable Length — in (LU)10.8661"
Usable Length — mm (LU)276.0 mm
Connection Dia. — in (DCON)0.9843"
Connection Dia. — mm (DCON)25.0 mm
Tool Information
ShankQueue cylindrique - Hydra
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number7833373
EAN7320760895030
File Type Download
H851223.0 — 3D Model STP Download
H851223.0 — 2D Model DXF Download
H851223.0 — Line Drawing PDF Download
