UGC DOR7833374
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2,151.00 CAD - $2,151.00 CAD
$2,151.00 CAD
$2,151.00 CAD - $2,151.00 CAD
$2,151.00 CAD

Vendu en lots de : 1

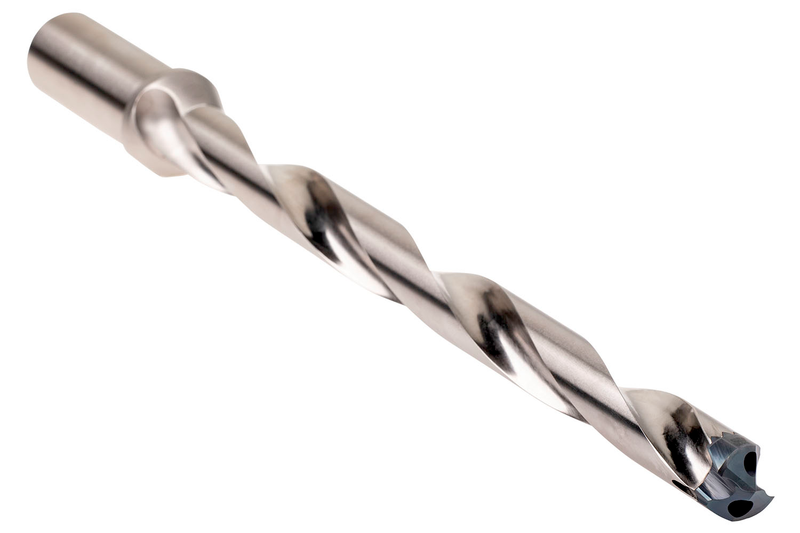

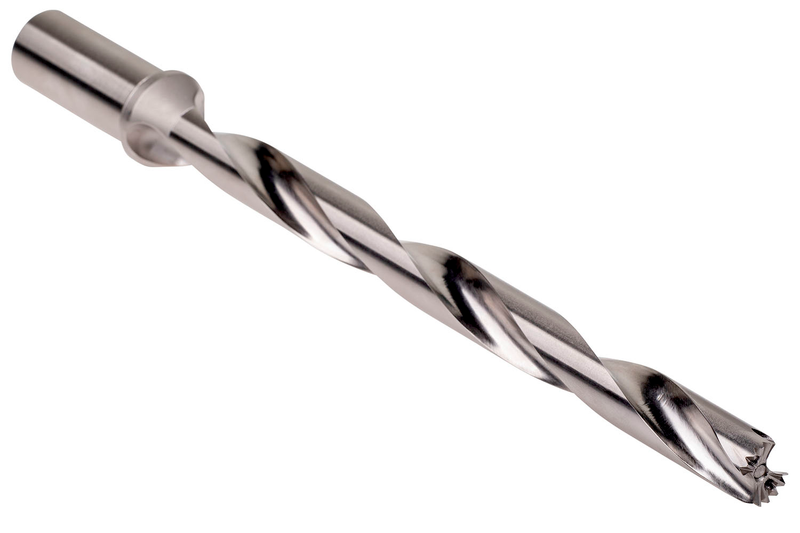

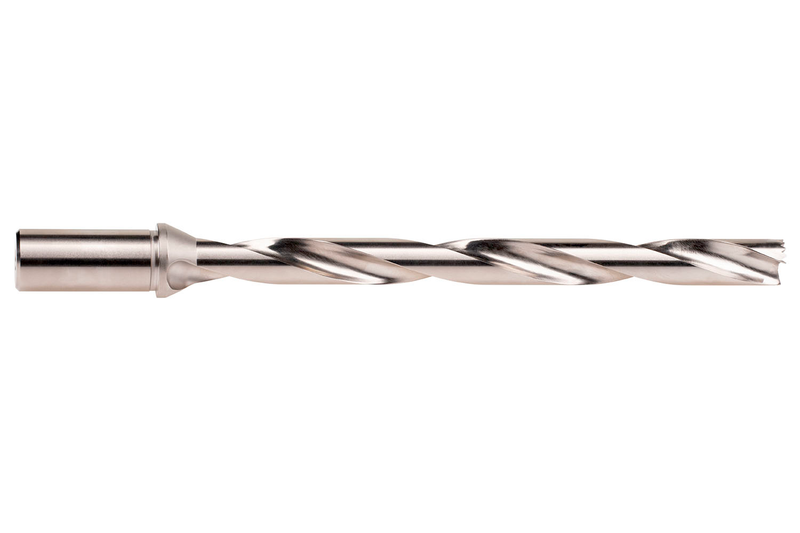

DOR Corps de foret à tête remplaçable HYDRA avec queue cylindrique à collerette, taille 24.0mm avec une longueur totale de 371.7mm et une longueur de goujure de 288mm selon la norme DORMER pour le perçage 12xD avec HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) diamètre 23.81 jusqu'à 24.61mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H851224.0
GradePlaqué nickel
Product Number7833374
Product FamilyH8512
Dimensions
Overall Length — in (OAL)14.6339"
Overall Length — mm (OAL)371.7 mm
Length × Diameter Ratio12
Usable Length — in (LU)11.3386"
Usable Length — mm (LU)288.0 mm
Connection Dia. — in (DCON)1.2598"
Connection Dia. — mm (DCON)32.0 mm
Tool Information
ShankQueue Hydra - Cylindrique
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number7833374
EAN7320760895047
File Type Download
H851224.0 — 3D Model STP Download
H851224.0 — 2D Model DXF Download

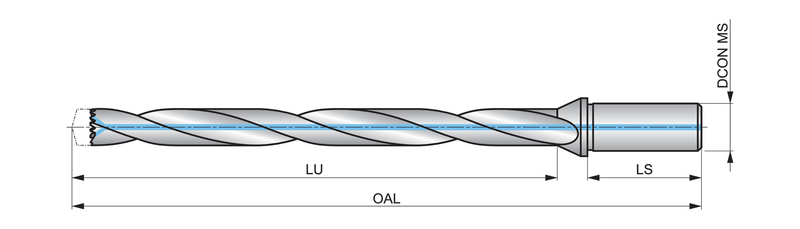

H851224.0 — Line Drawing PDF Download
