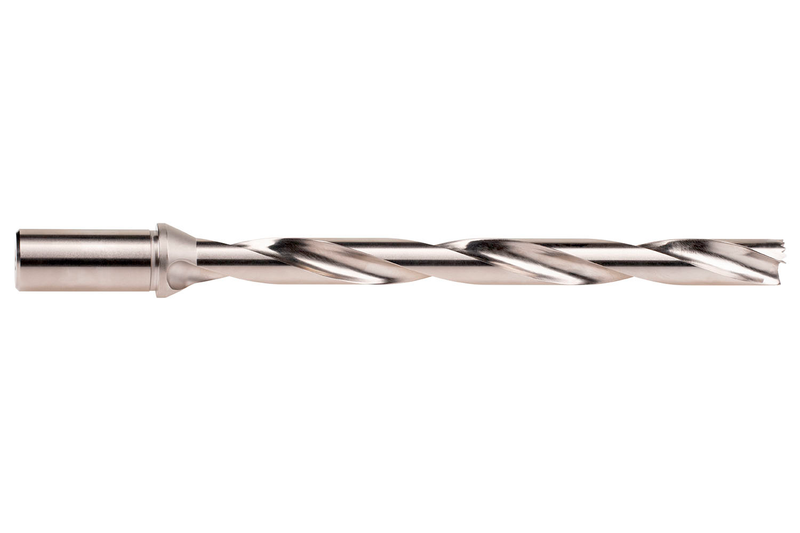

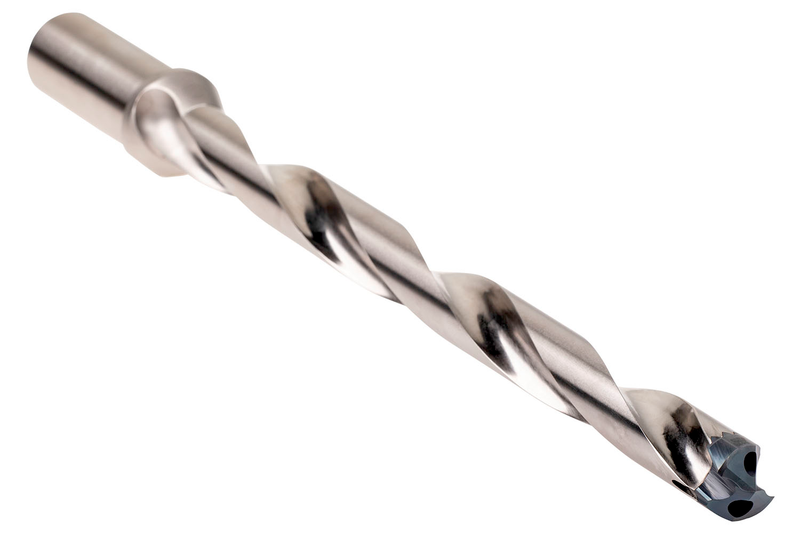

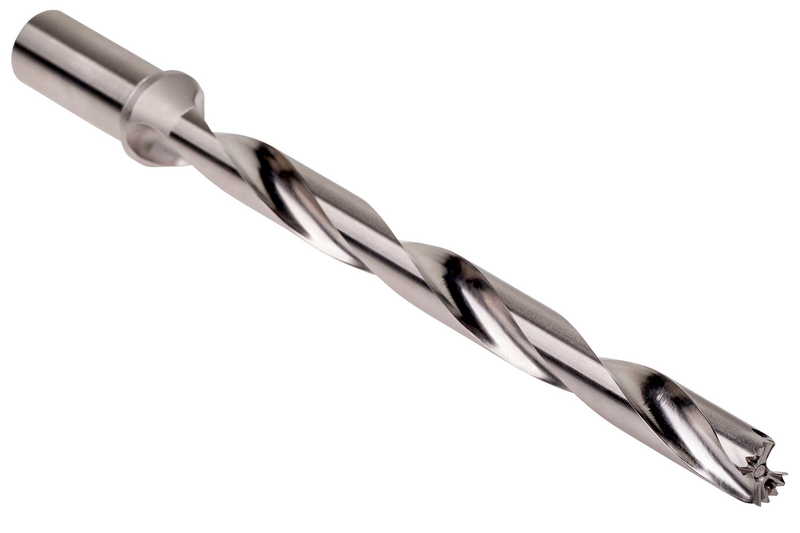

DOR Corps de foret à têtes interchangeables HYDRA avec queue cylindrique à collerette, dimension 25,0 mm, avec une longueur totale de 383,8 mm et une longueur utile de 300 mm selon la norme DORMER pour un perçage 12xD avec des têtes HYDRA P (R950), HYDRA M (R960) ou HYDRA K (R970) de diamètre 25 à 25,8 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)H851225.0
GradePlaqué nickel
Product Number7833375
Product FamilyH8512

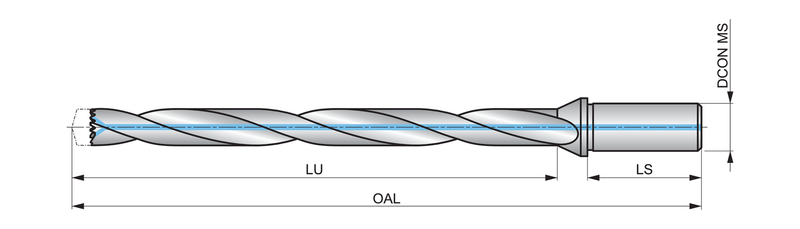

Dimensions
Overall Length — in (OAL)15.1102"
Overall Length — mm (OAL)383.8 mm
Length × Diameter Ratio12
Usable Length — in (LU)11.811"
Usable Length — mm (LU)300.0 mm
Connection Dia. — in (DCON)1.2598"
Connection Dia. — mm (DCON)32.0 mm
Tool Information
ShankQueue Hydra – Cylindrique
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number7833375
EAN7320760895054
File Type Download
H851225.0 — 3D Model STP Download
H851225.0 — 2D Model DXF Download
H851225.0 — Line Drawing PDF Download
