CCMT 21.52-UR:T8430
CCMT 21.52-UR:T8430

CCMT 21.52-UR:T8430

UGC DOR7973812
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.61 CAD - $10.61 CAD
$10.61 CAD
$10.61 CAD - $10.61 CAD
$10.61 CAD

Vendu en lots de : 10

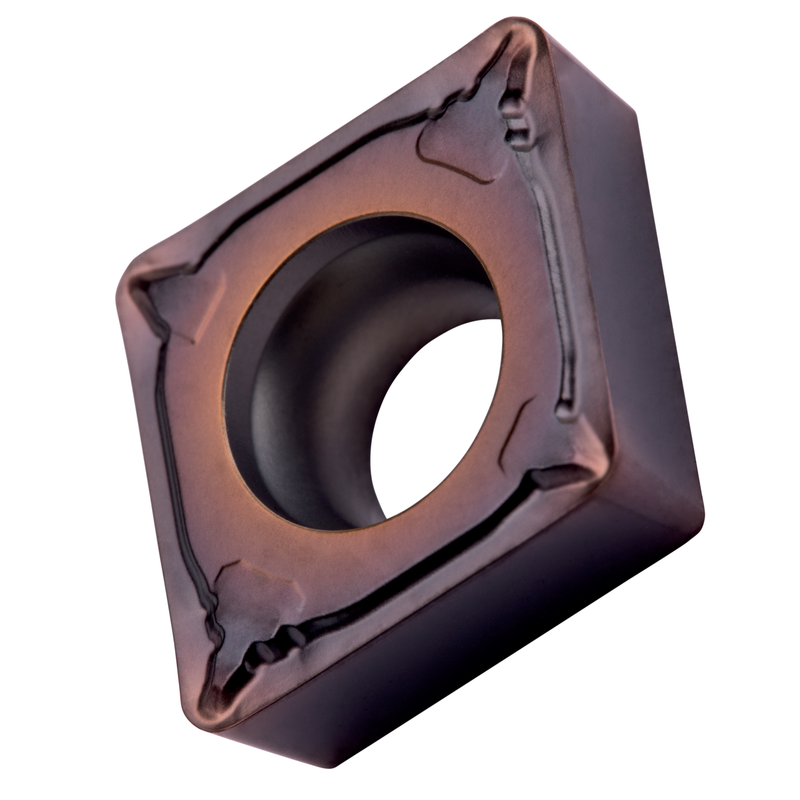

Plaquette positive simple face, rhomboïde 80° avec dépouille 7°, diamètre du cercle inscrit de 6,35 mm, épaisseur de 2,38 mm, rayon de bec de 0,8 mm, précision de l'indexation selon la classe de tolérance ISO-M, brise-copeaux UR avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans la plage ISO P20 -P40, pour l'usinage fin à lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMT 21.52-UR:T8430
Product Name (ISO)CCMT 060208E-UR:T8430
GradeT8430
Chipbreaker (CBMD)VOUS
Product Number7973812
Product FamilyCCMG
Insert Geometry
Insert DesignCCMG
Insert Shape Code (SC)C - angle d'inclinaison rhomboïdal 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number7973812
EAN3603603814127
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage possible
File Type Download
CCMT 21.52-UR:T8430 — Line Drawing PDF Download
