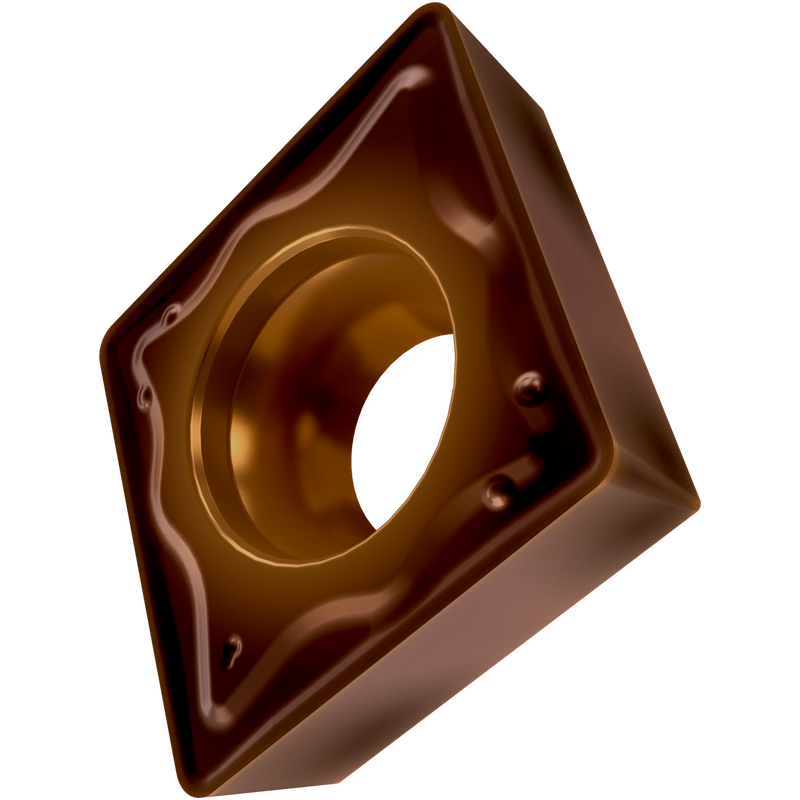

CCMT 432-RM:T8430
CCMT 432-RM:T8430

CCMT 432-RM:T8430

UGC DOR7973826
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.00 CAD - $17.00 CAD
$17.00 CAD
$17.00 CAD - $17.00 CAD
$17.00 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïde 80° avec dépouille de 7°, diamètre du cercle inscrit de 12,7 mm, épaisseur de 4,76 mm, rayon de bec de 0,8 mm, précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux RM avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans les plages ISO P20 -P40 et M20 -M35, pour l'usinage fin à lourd des aciers et aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMT 432-RM:T8430
Product Name (ISO)CCMT 120408E-RM:T8430
GradeT8430
Chipbreaker (CBMD)RM
Product Number7973826
Product FamilyCCMG
Insert Geometry
Insert DesignCCMG
Insert Shape Code (SC)C - angle dièdre 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number7973826
EAN3603603814264
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Utilisation possible
S — High Temperature Alloys Utilisation possible
H — Hardened Materials Utilisation possible
File Type Download
CCMT 432-RM:T8430 — Line Drawing PDF Download
