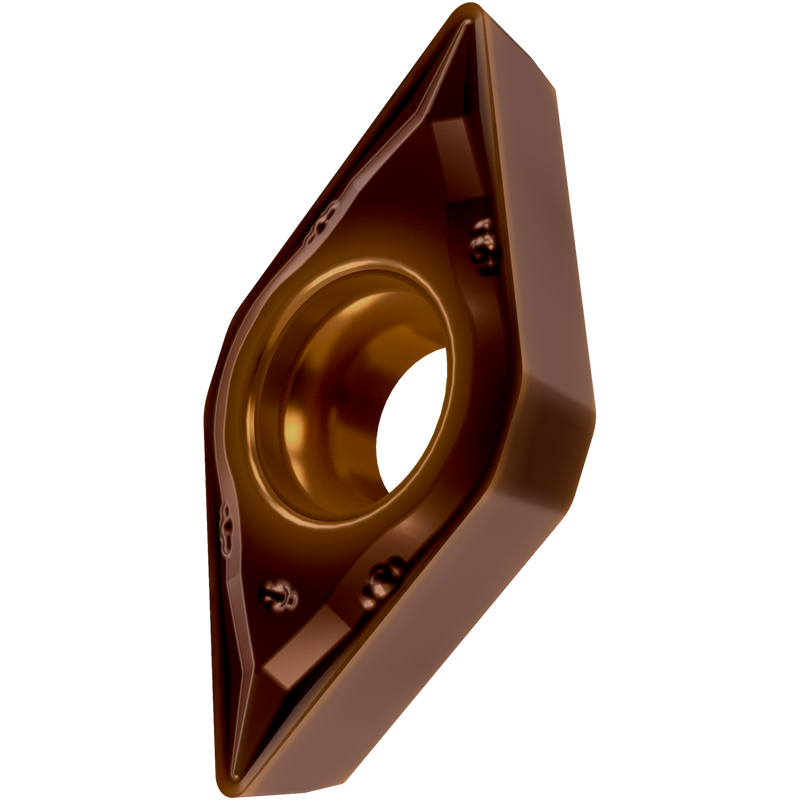

DCMT 21.50.5-FM:T8430
DCMT 21.50.5-FM:T8430

DCMT 21.50.5-FM:T8430

UGC DOR7973828
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.57 CAD - $12.57 CAD
$12.57 CAD
$12.57 CAD - $12.57 CAD
$12.57 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 55° avec dépouille 7°, diamètre du cercle inscrit 6,35 mm, épaisseur 2,38 mm, rayon de bec 0,2 mm, précision d'indexation selon la classe de tolérance ISO-M, brise-copeaux FM avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grain fin revêtu PVD dans les plages ISO P20 -P40 et M20 -M35, pour l'usinage fin à moyen des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)DCMT 21.50.5-FM:T8430
Product Name (ISO)DCMT 070202E-FM:T8430
GradeT8430
Chipbreaker (CBMD)FM
Product Number7973828
Product FamilyDCMT
Insert Geometry
Insert DesignDCMT
Insert Shape Code (SC)D - angle interne de 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Tool Information
Reference Numbers
EDP Number7973828
EAN3603603814288
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
DCMT 21.50.5-FM:T8430 — Line Drawing PDF Download
