RCMT 0803MOE-UR:T8430
RCMT 0803MOE-UR:T8430

RCMT 0803MOE-UR:T8430

UGC DOR7973841
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.40 CAD - $11.40 CAD
$11.40 CAD
$11.40 CAD - $11.40 CAD
$11.40 CAD

Vendu en lots de : 10

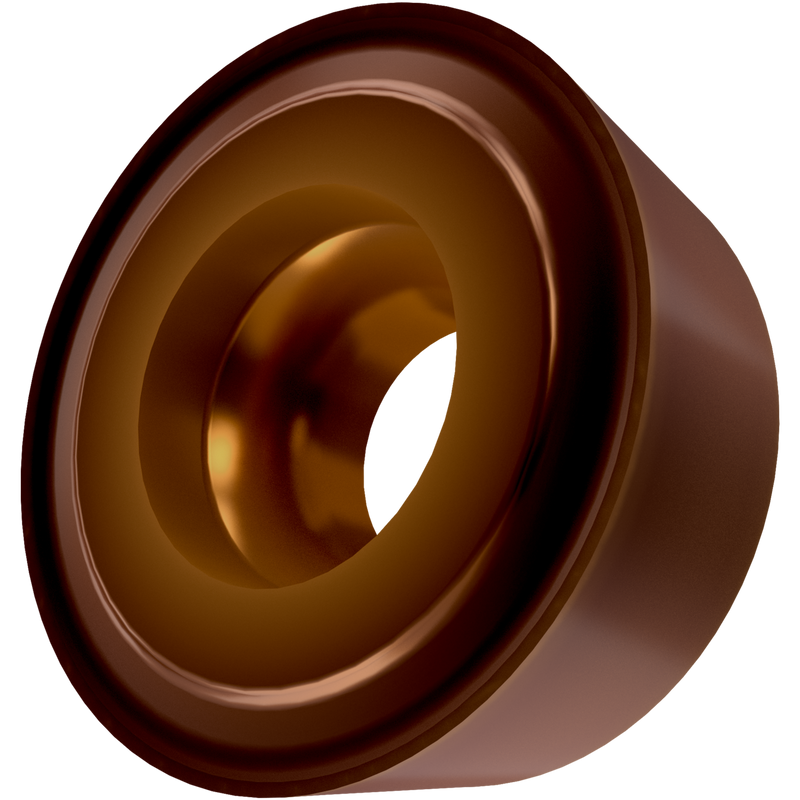

Plaquette positive simple face pour tournage, ronde avec dépouille de 7°, diamètre de 8 mm, épaisseur de 3,18 mm, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux UR avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans la gamme ISO P20 -P40, pour l'usinage fin à lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMT 0803MOE-UR:T8430
GradeT8430
Chipbreaker (CBMD)VOUS
Product Number7973841
Product FamilyRCMT
Insert Geometry
Insert DesignCMRF
Insert Shape Code (SC)R - rond
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Tool Information
Reference Numbers
EDP Number7973841
EAN3603603814417
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage possible
K — Cast Iron Utilisation possible
File Type Download
RCMT 0803MOE-UR:T8430 — Line Drawing PDF Download
