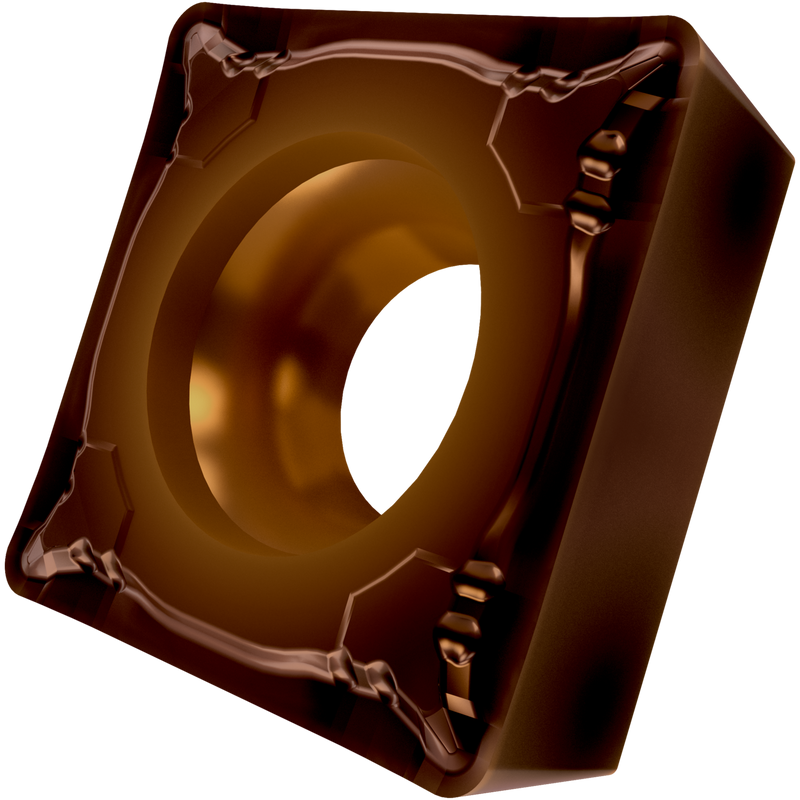

SCMT 32.51-UR:T8430
SCMT 32.51-UR:T8430

SCMT 32.51-UR:T8430

UGC DOR7973845
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.00 CAD - $14.00 CAD
$14.00 CAD
$14.00 CAD - $14.00 CAD
$14.00 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, carrée avec dépouille de 7°, diamètre du cercle inscrit de 9,525 mm, épaisseur de 3,97 mm, rayon de bec de 0,4 mm, précision d'indexage selon la classe de tolérance ISO M, brise-copeaux UR avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans la gamme ISO P20-P40, pour l'usinage fin à lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)SCMT 32.51-UR:T8430
Product Name (ISO)SCMT 09T304E-UR:T8430
GradeT8430
Chipbreaker (CBMD)VOUS
Product Number7973845
Product FamilySCMT
Insert Geometry
Insert DesignSCMT
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number7973845
EAN3603603814455
File Type Download
SCMT 32.51-UR:T8430 — Line Drawing PDF Download
