TCMT 21.51-FF2:T8430
TCMT 21.51-FF2:T8430

TCMT 21.51-FF2:T8430

UGC DOR7973854
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.54 CAD - $11.54 CAD
$11.54 CAD
$11.54 CAD - $11.54 CAD
$11.54 CAD

Vendu en lots de : 10

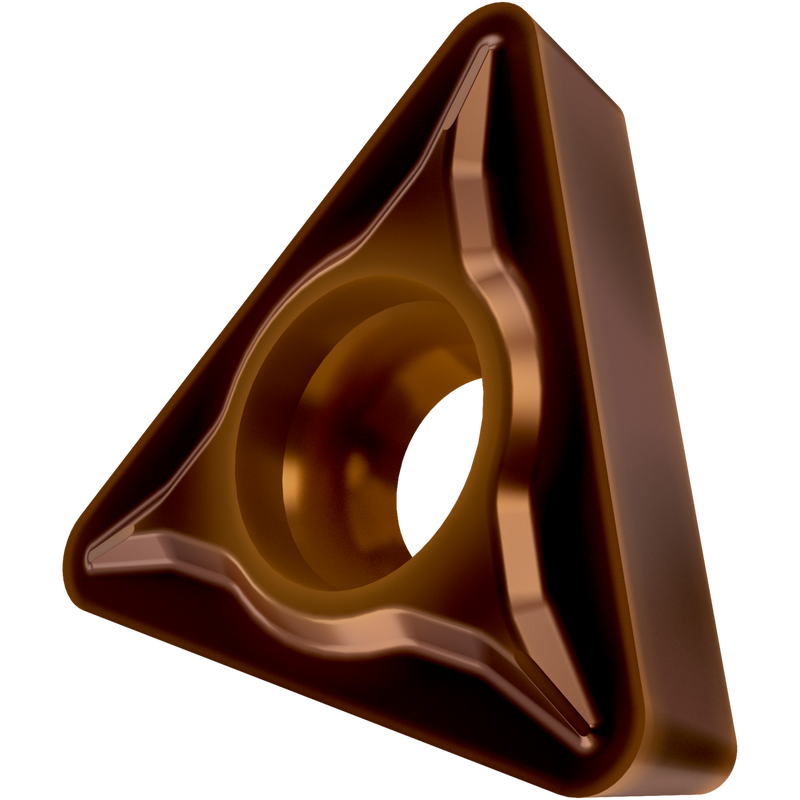

Plaquette de tournage positive simple face, triangulaire avec dépouille de 7°, diamètre du cercle inscrit de 6,35mm, épaisseur de 2,38mm, rayon de pointe de 0,4mm, précision d'indexation selon la classe de tolérance ISO-M, brise-copeaux FF2 à arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD, dans la plage ISO P20 -P40, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)TCMT 21.51-FF2:T8430
Product Name (ISO)TCMT 110204E-FF2:T8430
GradeT8430
Chipbreaker (CBMD)FF2
Product Number7973854
Product FamilyTCMT

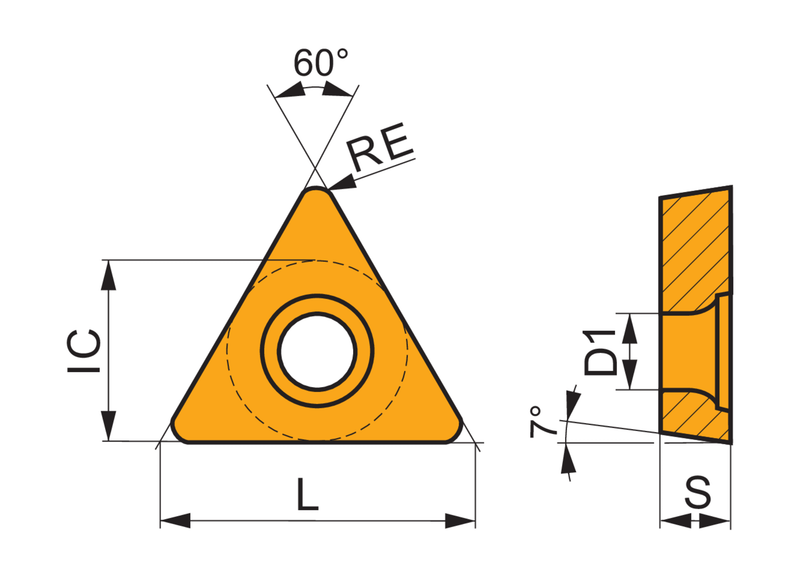

Insert Geometry
Insert DesignTCMT
Insert Shape Code (SC)T - angle de 60° inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number7973854
EAN3603603814547
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Utilisation possible
File Type Download
TCMT 21.51-FF2:T8430 — Line Drawing PDF Download
