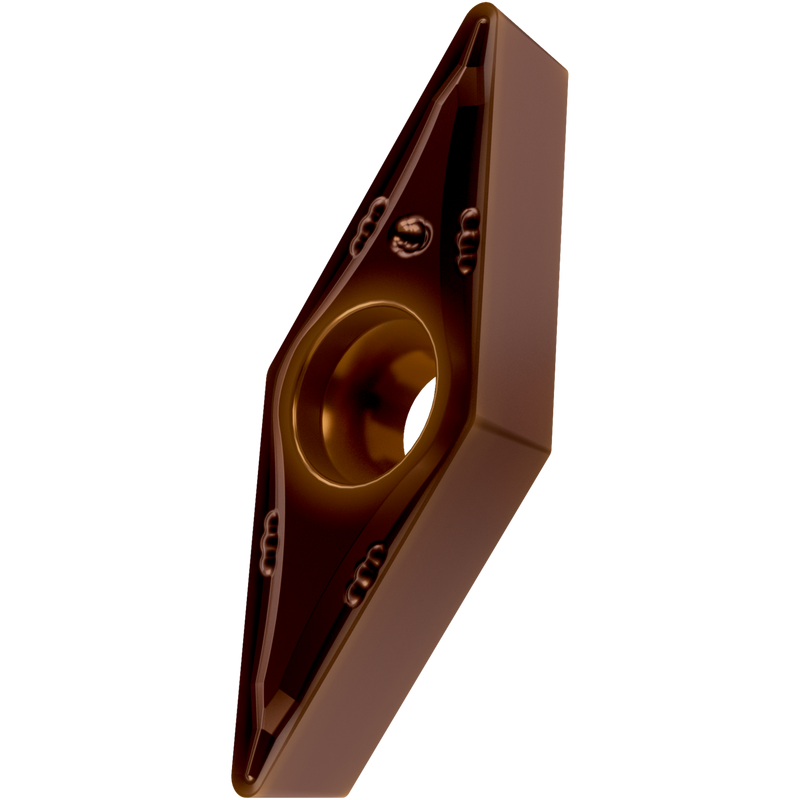

VBMT 222-FM:T8430
VBMT 222-FM:T8430

VBMT 222-FM:T8430

UGC DOR7973866
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.61 CAD - $21.61 CAD
$21.61 CAD
$21.61 CAD - $21.61 CAD
$21.61 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 35° avec un angle de dépouille de 5°, diamètre du cercle inscrit de 6,35mm, épaisseur de 3,18mm, rayon de bec de 0,8mm, précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux FM avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans les plages ISO P20 -P40 et M20 -M35, pour l'usinage fin à moyen des aciers et aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)VBMT 222-FM:T8430
Product Name (ISO)VBMT 110308E-FM:T8430
GradeT8430
Chipbreaker (CBMD)FM
Product Number7973866
Product FamilyVBMT
Insert Geometry
Insert DesignVBMT
Insert Shape Code (SC)V - angle d'ouverture 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number7973866
EAN3603603814660
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
VBMT 222-FM:T8430 — Line Drawing PDF Download
