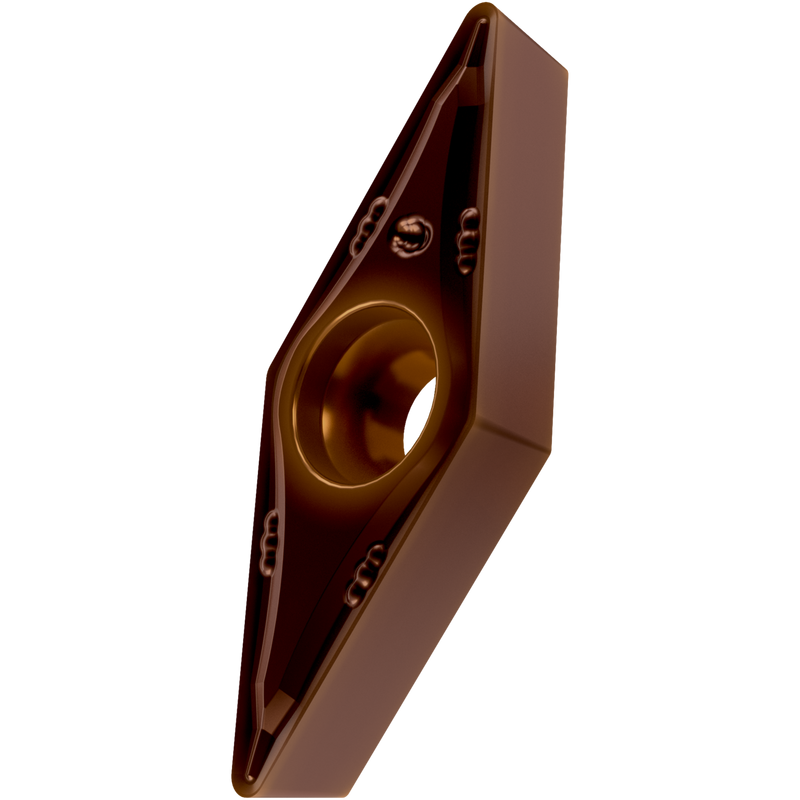

VBMT 330.5-FM:T8430
VBMT 330.5-FM:T8430

VBMT 330.5-FM:T8430

UGC DOR7973867
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.40 CAD - $24.40 CAD
$24.40 CAD
$24.40 CAD - $24.40 CAD
$24.40 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïde 35° avec dépouille 5°, diamètre du cercle inscrit de 9,525 mm, épaisseur 4,76 mm, rayon de bec 0,2 mm, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux FM à arêtes vives, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans les plages ISO P20 -P40 et M20 -M35, pour l'usinage fin à moyen des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)VBMT 330.5-FM:T8430
Product Name (ISO)VBMT 160402E-FM:T8430
GradeT8430
Chipbreaker (CBMD)FM
Product Number7973867
Product FamilyVBMT
Insert Geometry
Insert DesignVBMT
Insert Shape Code (SC)V - angulaire 35° angle inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Tool Information
Reference Numbers
EDP Number7973867
EAN3603603814677
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
VBMT 330.5-FM:T8430 — Line Drawing PDF Download
