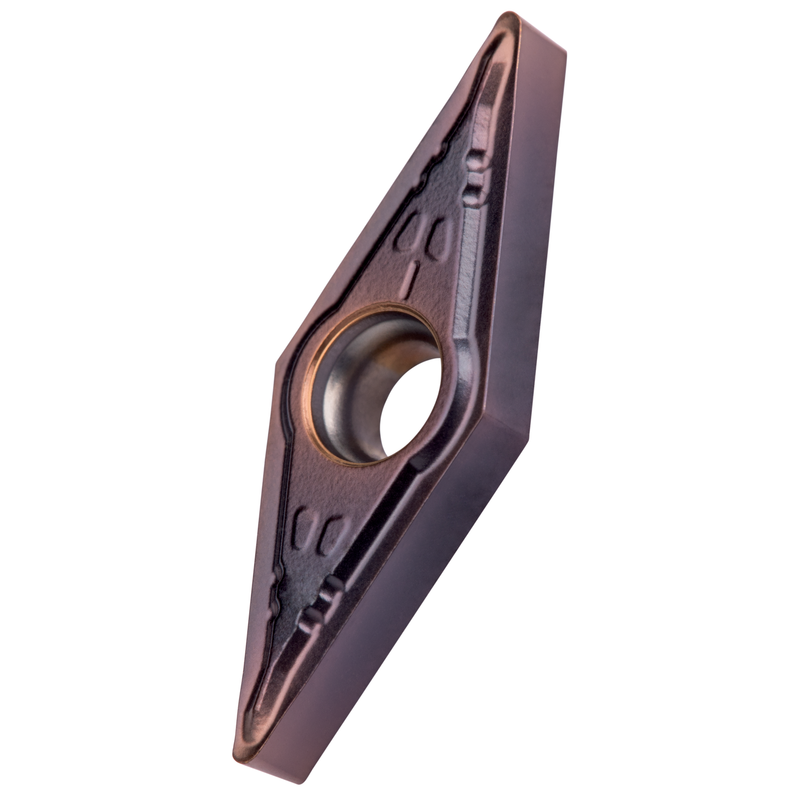

VBMT 330.5-UR:T8430
VBMT 330.5-UR:T8430

VBMT 330.5-UR:T8430

UGC DOR7973868
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.40 CAD - $24.40 CAD
$24.40 CAD
$24.40 CAD - $24.40 CAD
$24.40 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïde 35° avec dépouille 5°, diamètre du cercle inscrit de 9,525 mm, 4,76 mm d'épaisseur, rayon de bec 0,2 mm, précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux UR avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans la gamme ISO P20 -P40, pour l'usinage fin à lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)VBMT 330.5-UR:T8430
Product Name (ISO)VBMT 160402E-UR:T8430
GradeT8430
Chipbreaker (CBMD)VOUS
Product Number7973868
Product FamilyVBMT
Insert Geometry
Insert DesignVBMT
Insert Shape Code (SC)V - angle de 35° inclus (rhombique)
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Tool Information
Reference Numbers
EDP Number7973868
EAN3603603814684
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage possible
K — Cast Iron Utilisation possible
File Type Download
VBMT 330.5-UR:T8430 — Line Drawing PDF Download
