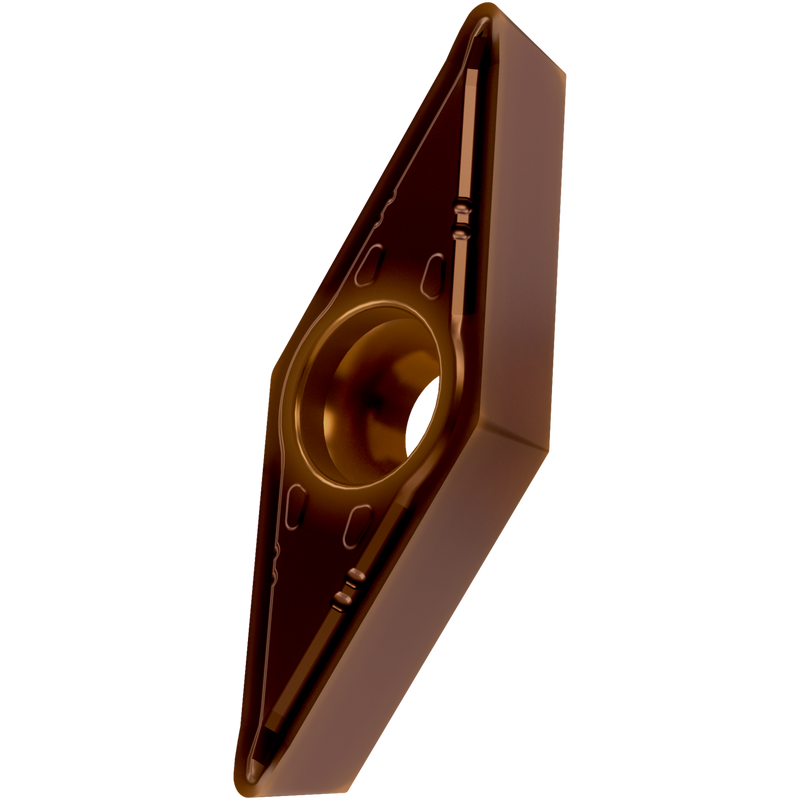

VCMT 222-UR:T8430
VCMT 222-UR:T8430

VCMT 222-UR:T8430

UGC DOR7973874
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.97 CAD - $19.97 CAD
$19.97 CAD
$19.97 CAD - $19.97 CAD
$19.97 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 35° avec dépouille 7°, diamètre du cercle inscrit de 6,35mm, épaisseur de 3,18mm, rayon de pointe de 0,8mm, précision de positionnement selon la classe de tolérance ISO M, brise-copeaux UR avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD de la gamme ISO P20 -P40, pour l'usinage fin à lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)VCMT 222-UR:T8430
Product Name (ISO)VCMT 110308E-UR:T8430
GradeT8430
Chipbreaker (CBMD)VOUS
Product Number7973874
Product FamilyFVMC
Insert Geometry
Insert DesignVCMT
Insert Shape Code (SC)V - angle d'ouverture 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number7973874
EAN3603603814745
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage possible
K — Cast Iron Usage possible
File Type Download
VCMT 222-UR:T8430 — Line Drawing PDF Download
