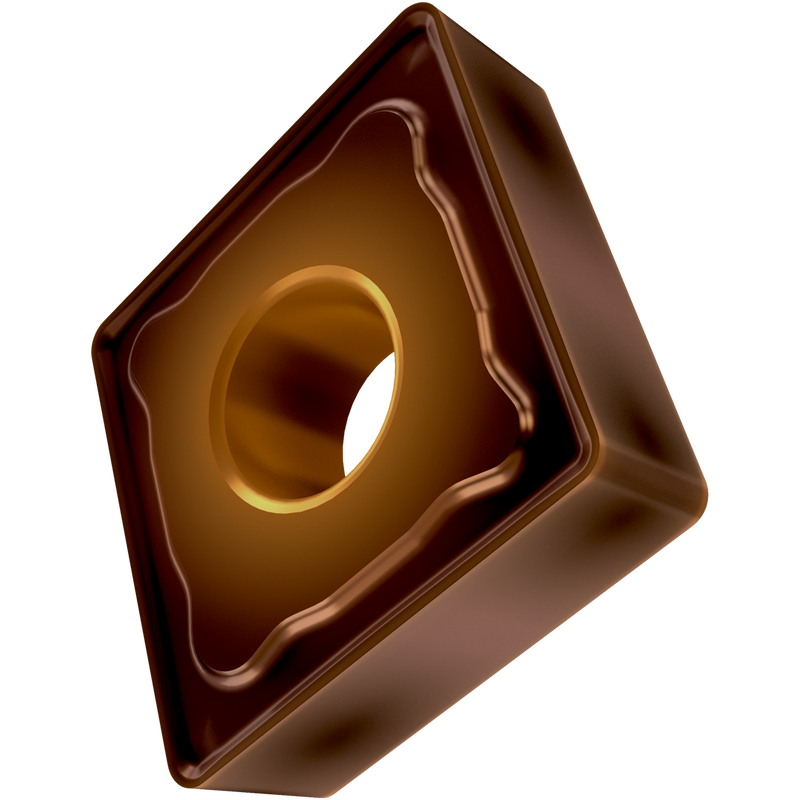

CNMG 433-NM:T8430
CNMG 433-NM:T8430

CNMG 433-NM:T8430

UGC DOR7977113
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.43 CAD - $14.43 CAD
$14.43 CAD
$14.43 CAD - $14.43 CAD
$14.43 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 80° avec diamètre de cercle inscrit de 12,7 mm, épaisseur de 4,76 mm, rayon de bec de 1,2 mm, précision de positionnement selon la classe de tolérance ISO M, brise-copeaux NM avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grain fin revêtu PVD dans les plages ISO P20-P40 et M20-M35, pour l'usinage de finition à lourd des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 433-NM:T8430
Product Name (ISO)CNMG 120412E-NM:T8430
GradeT8430
Chipbreaker (CBMD)NM
Product Number7977113
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - losange, angle interne de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Tool Information
Reference Numbers
EDP Number7977113
EAN3603603817296
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
CNMG 433-NM:T8430 — Line Drawing PDF Download
