SNMG 432-FM:T8430
SNMG 432-FM:T8430

SNMG 432-FM:T8430

UGC DOR7977131
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.00 CAD - $14.00 CAD
$14.00 CAD
$14.00 CAD - $14.00 CAD
$14.00 CAD

Vendu en lots de : 10

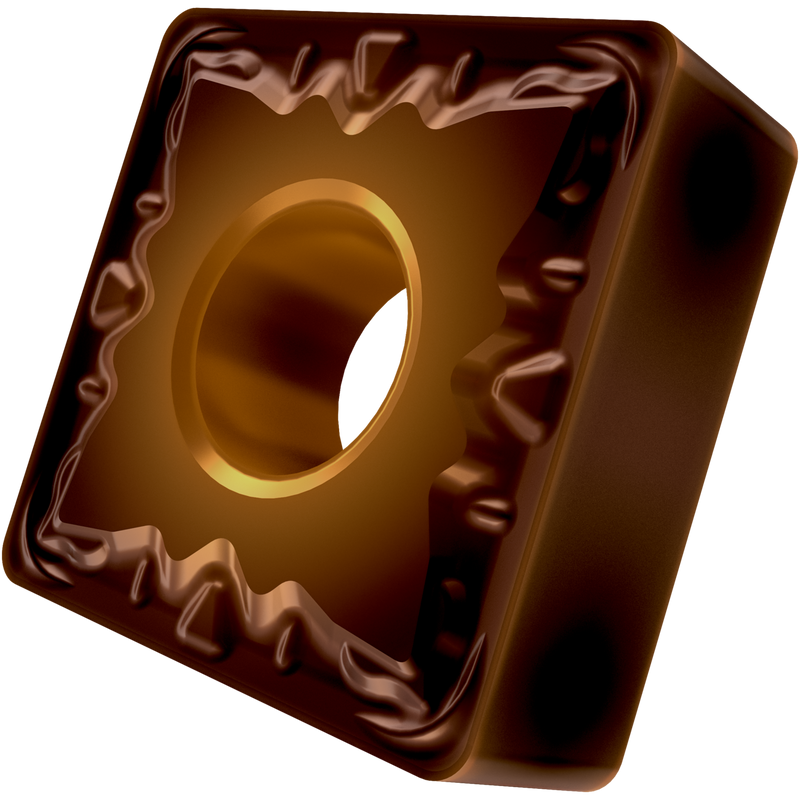

Plaquette négative double face, carrée, avec un diamètre de cercle inscrit de 12,7 mm, 4,76 mm d'épaisseur, un rayon de bec de 0,8 mm, une précision d'indexage selon la classe de tolérance ISO-M, un brise-copeaux FM avec des arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans la gamme ISO P20 -P40, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMG 432-FM:T8430
Product Name (ISO)SNMG 120408E-FM:T8430
GradeT8430
Chipbreaker (CBMD)FM
Product Number7977131
Product FamilySNMG
Insert Geometry
Insert DesignSNMG
Insert Shape Code (SC)S - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number7977131
EAN3603603817470
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
SNMG 432-FM:T8430 — Line Drawing PDF Download
